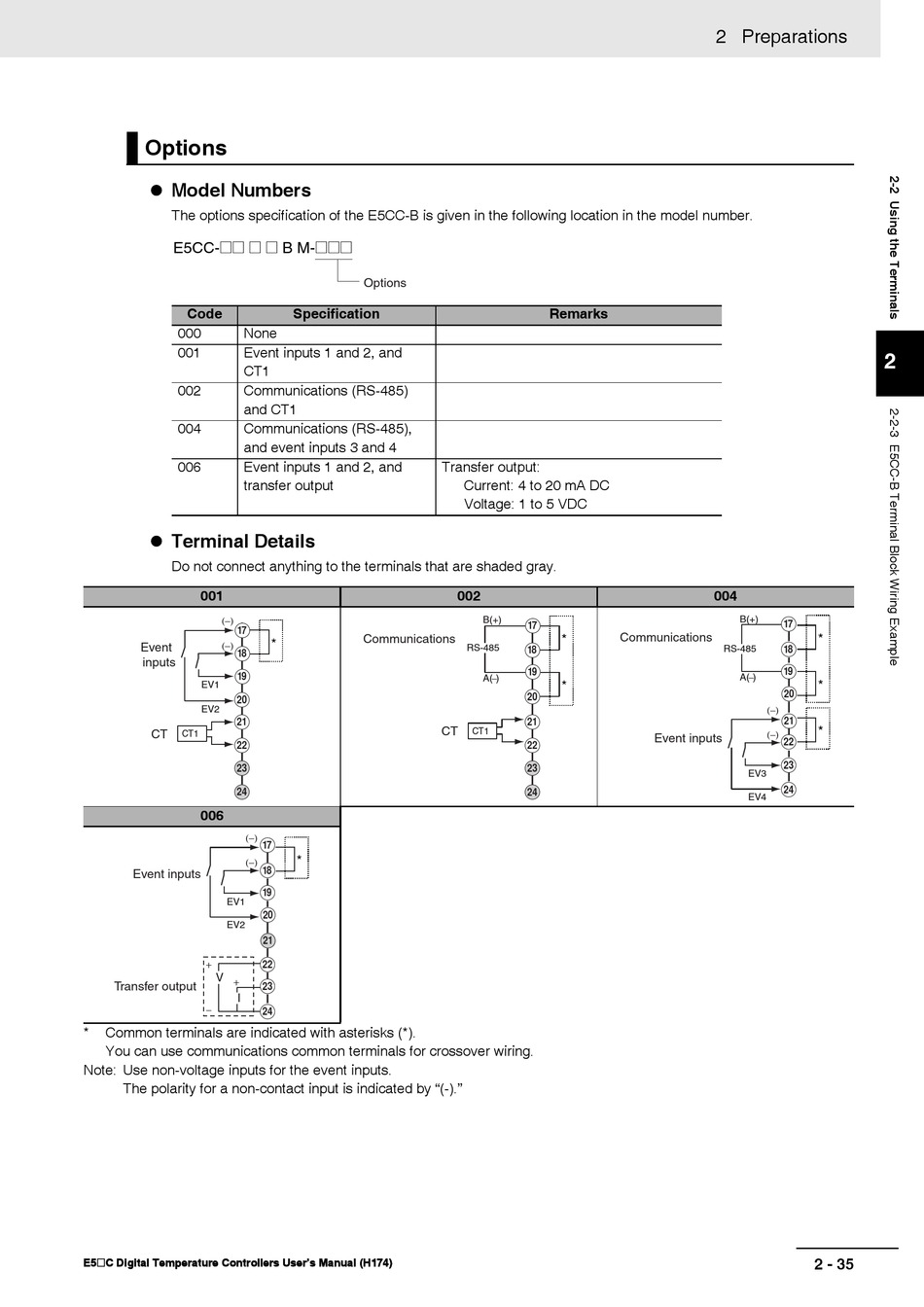

Omron E5*C Series User Manual page 73

Options
 Model Numbers
The options specification of the E5CC-B is given in the following location in the model number.
E5CC-@@ @ @ B M-@@@
Code
000 None
001 Event inputs 1 and 2, and
CT1
002 Communications (RS-485)
and CT1
004 Communications (RS-485),
and event inputs 3 and 4
006 Event inputs 1 and 2, and
transfer output
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
001
(−)
17
(−)
Event
18
inputs
19
EV1
20
EV2
21
CT
CT1
22
23
24
006
(−)
(−)
Event inputs
EV1
EV2
+
V
+
Transfer output
I
−
* Common terminals are indicated with asterisks (*).
You can use communications common terminals for crossover wiring.
Note: Use non-voltage inputs for the event inputs.
The polarity for a non-contact input is indicated by "(-)."
E5@C Digital Temperature Controllers User's Manual (H174)
Options
Specification
Communications
*
17
*
18
19
20
21
22
23
24
Remarks
Transfer output:
Current: 4 to 20 mA DC
Voltage: 1 to 5 VDC
002
B(+)
17
*
18
RS-485
19
A(−)
*
20
21
CT CT1
22
23
24
2 Preparations
004
B(+)
17
Communications
18
RS-485
19
A(−)
20
(−)
21
(−)
Event inputs
22
23
EV3
24
EV4
2
*
*
*
2 - 35
