5 Advanced Operations

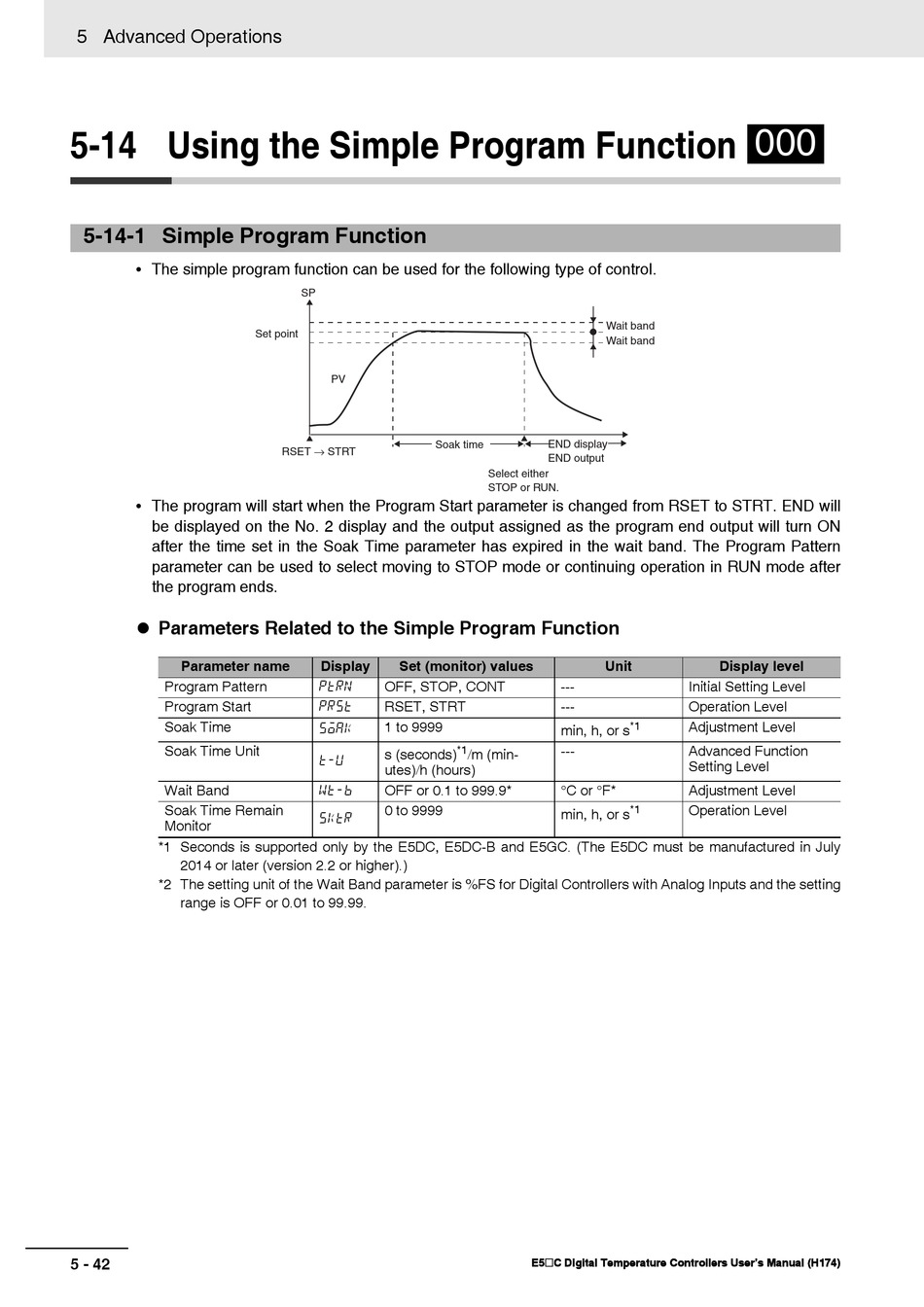

5-14 Using the Simple Program Function

5-14-1 Simple Program Function

• The simple program function can be used for the following type of control.
• The program will start when the Program Start parameter is changed from RSET to STRT. END will
be displayed on the No. 2 display and the output assigned as the program end output will turn ON
after the time set in the Soak Time parameter has expired in the wait band. The Program Pattern
parameter can be used to select moving to STOP mode or continuing operation in RUN mode after
the program ends.
 Parameters Related to the Simple Program Function
Parameter name
Program Pattern
Program Start
Soak Time
Soak Time Unit
Wait Band
Soak Time Remain
Monitor
*1 Seconds is supported only by the E5DC, E5DC-B and E5GC. (The E5DC must be manufactured in July
2014 or later (version 2.2 or higher).)
*2 The setting unit of the Wait Band parameter is %FS for Digital Controllers with Analog Inputs and the setting
range is OFF or 0.01 to 99.99.
5 - 42
SP
Set point
PV
RSET → STRT
Display Set (monitor) values
OFF, STOP, CONT
ptrn
RSET, STRT
prst
1 to 9999
soak
s (seconds)
t-u
utes)/h (hours)
OFF or 0.1 to 999.9*
wt-b
0 to 9999
sktr
Wait band
Wait band
END display
Soak time
END output
Select either
STOP or RUN.
Unit
---
---
min, h, or s
---
*1
/m (min-
°C or °F*
min, h, or s
E5@C Digital Temperature Controllers User's Manual (H174)
000
Display level
Initial Setting Level
Operation Level
*1 Adjustment Level
Advanced Function
Setting Level
Adjustment Level
*1 Operation Level
