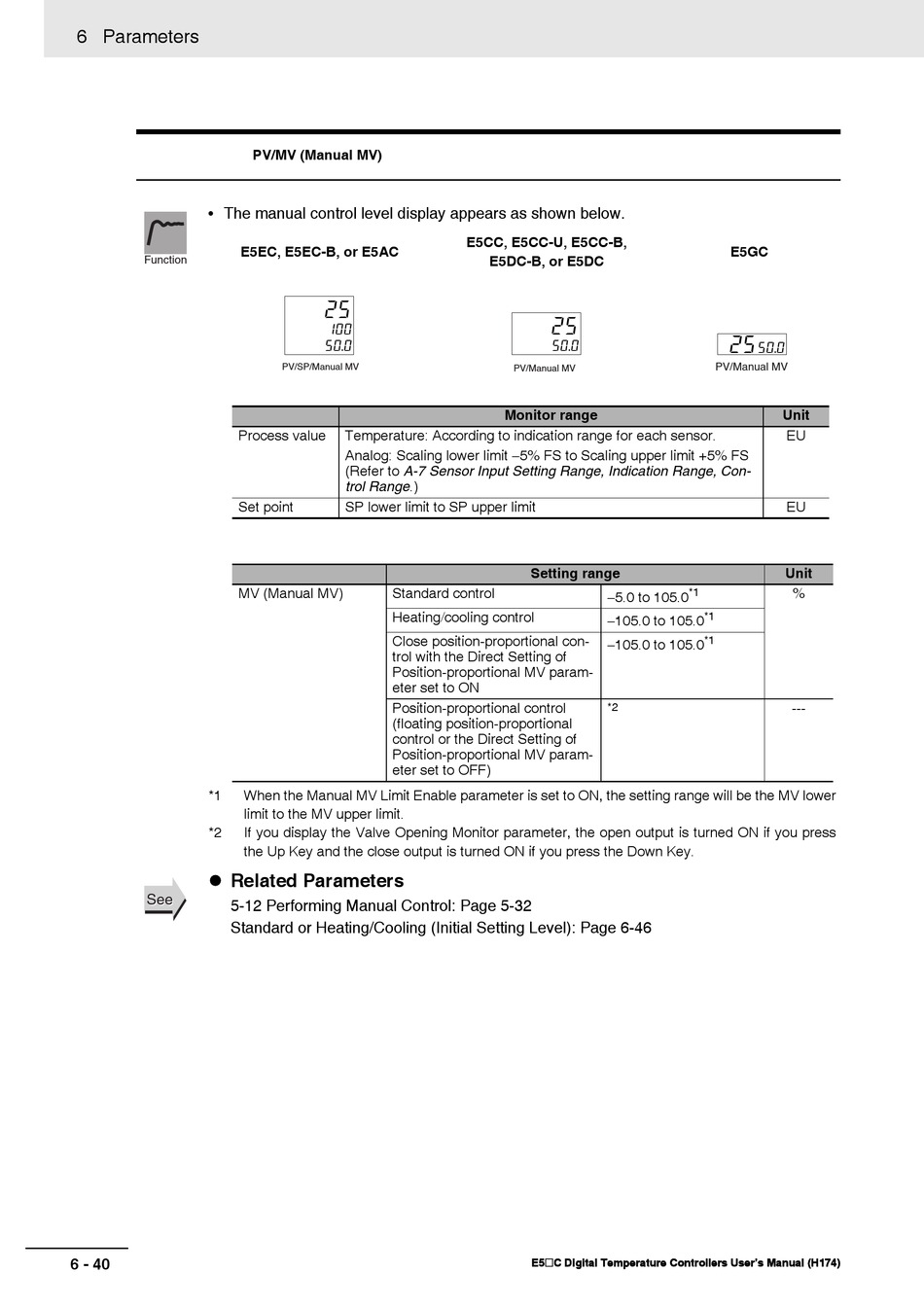

Omron E5*C Series User Manual page 310

6 Parameters
• The manual control level display appears as shown below.
E5EC, E5EC-B, or E5AC
Function
Process value
Set point
MV (Manual MV)
*1 When the Manual MV Limit Enable parameter is set to ON, the setting range will be the MV lower
limit to the MV upper limit.
*2 If you display the Valve Opening Monitor parameter, the open output is turned ON if you press
the Up Key and the close output is turned ON if you press the Down Key.
 Related Parameters
See See
5-12 Performing Manual Control: Page 5-32
Standard or Heating/Cooling (Initial Setting Level): Page 6-46
6 - 40
PV/MV (Manual MV)
25
100
50.0
PV/SP/Manual MV
Temperature: According to indication range for each sensor.
Analog: Scaling lower limit −5% FS to Scaling upper limit +5% FS
(Refer to A-7 Sensor Input Setting Range, Indication Range, Con-
trol Range.)
SP lower limit to SP upper limit
Standard control
Heating/cooling control
Close position-proportional con-
trol with the Direct Setting of
Position-proportional MV param-
eter set to ON
Position-proportional control
(floating position-proportional
control or the Direct Setting of
Position-proportional MV param-
eter set to OFF)
E5CC, E5CC-U, E5CC-B,
E5DC-B, or E5DC
25
50.0
PV/Manual MV
Monitor range
Setting range
−5.0 to 105.0
−105.0 to 105.0
−105.0 to 105.0
*2
E5@C Digital Temperature Controllers User's Manual (H174)
E5GC
25
50.0
PV/Manual MV
Unit
EU
EU
Unit
%
*1
*1
*1
---
