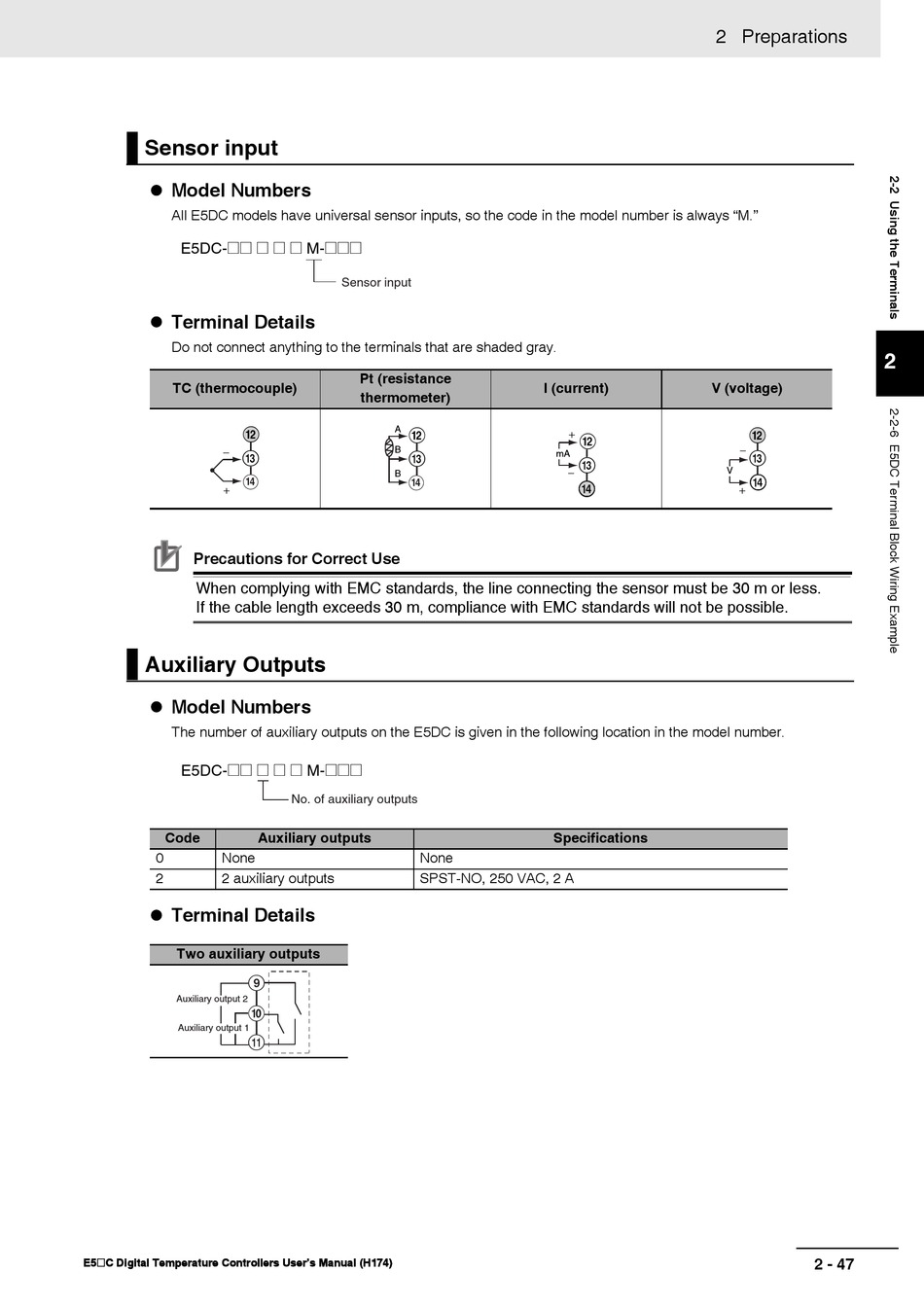

Sensor input
 Model Numbers
All E5DC models have universal sensor inputs, so the code in the model number is always "M."
E5DC-@@ @ @ @ M-@@@
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
TC (thermocouple)
L
−
M
14
+
Precautions for Correct Use
When complying with EMC standards, the line connecting the sensor must be 30 m or less.
If the cable length exceeds 30 m, compliance with EMC standards will not be possible.
Auxiliary Outputs
 Model Numbers
The number of auxiliary outputs on the E5DC is given in the following location in the model number.
E5DC-@@ @ @ @ M-@@@
Code Auxiliary outputs
0 None
2 2 auxiliary outputs
 Terminal Details
Two auxiliary outputs
I
Auxiliary output 2
J
Auxiliary output 1
K
E5@C Digital Temperature Controllers User's Manual (H174)
Sensor input
Pt (resistance
thermometer)
L
A
B
M
B
14
No. of auxiliary outputs
None
SPST-NO, 250 VAC, 2 A
2 Preparations
I (current) V (voltage)
+
L
mA
M
−
N
Specifications
2
L
−
M
V
N
+
2 - 47
