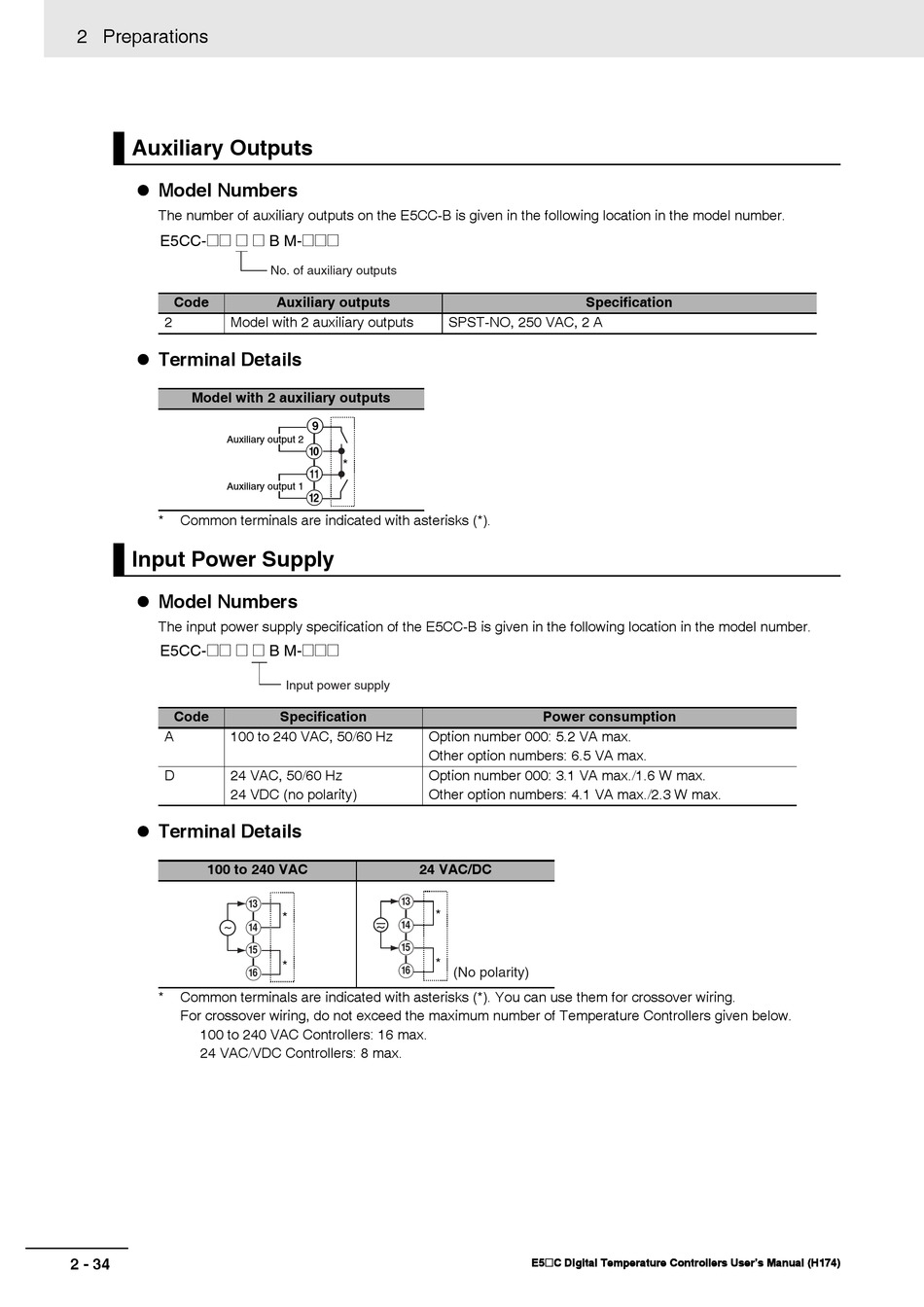

2 Preparations
Auxiliary Outputs
 Model Numbers
The number of auxiliary outputs on the E5CC-B is given in the following location in the model number.
E5CC-@@ @ @ B M-@@@
Code
2 Model with 2 auxiliary outputs
 Terminal Details
Model with 2 auxiliary outputs
Auxiliary output 2
Auxiliary output 1
* Common terminals are indicated with asterisks (*).
Input Power Supply
 Model Numbers
The input power supply specification of the E5CC-B is given in the following location in the model number.
E5CC-@@ @ @ B M-@@@
Code
A 100 to 240 VAC, 50/60 Hz
D 24 VAC, 50/60 Hz
24 VDC (no polarity)
 Terminal Details
100 to 240 VAC
* Common terminals are indicated with asterisks (*). You can use them for crossover wiring.
For crossover wiring, do not exceed the maximum number of Temperature Controllers given below.
100 to 240 VAC Controllers: 16 max.
24 VAC/VDC Controllers: 8 max.
2 - 34
No. of auxiliary outputs
Auxiliary outputs
I
J
*
K
L
Input power supply
Specification
24 VAC/DC
13
13
*
14
14
15
15
*
16
16
Specification
SPST-NO, 250 VAC, 2 A
Power consumption
Option number 000: 5.2 VA max.
Other option numbers: 6.5 VA max.
Option number 000: 3.1 VA max./1.6 W max.
Other option numbers: 4.1 VA max./2.3 W max.
*
*
(No polarity)
