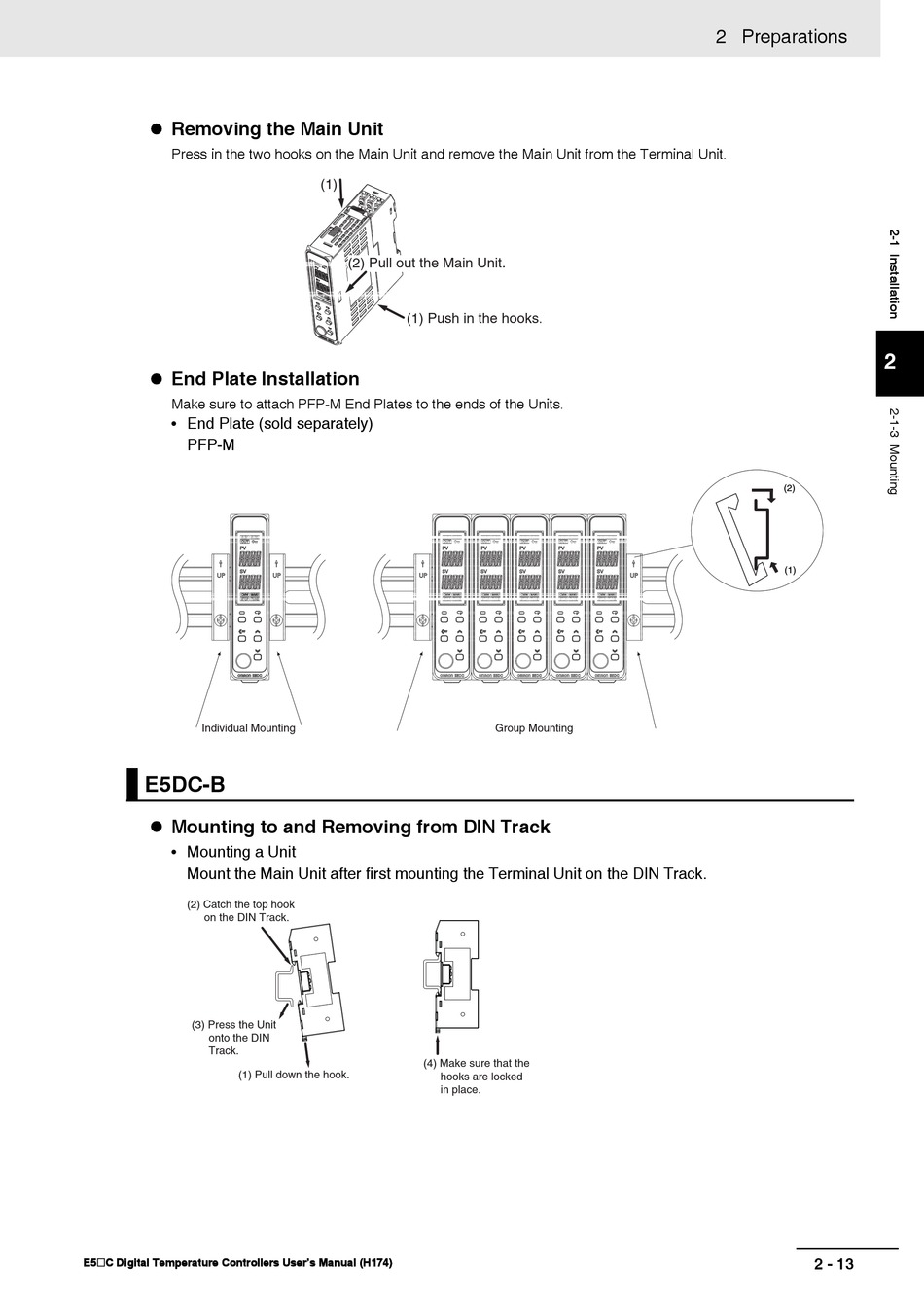

 Removing the Main Unit
Press in the two hooks on the Main Unit and remove the Main Unit from the Terminal Unit.
 End Plate Installation
Make sure to attach PFP-M End Plates to the ends of the Units.
• End Plate (sold separately)
PFP-M
Individual Mounting
E5DC-B
 Mounting to and Removing from DIN Track
• Mounting a Unit
Mount the Main Unit after first mounting the Terminal Unit on the DIN Track.
(2) Catch the top hook
on the DIN Track.
(3) Press the Unit
onto the DIN
Track.
(1) Pull down the hook.
E5@C Digital Temperature Controllers User's Manual (H174)
(1)
(2) Pull out the Main Unit.
(1) Push in the hooks.
(4) Make sure that the
hooks are locked
in place.
