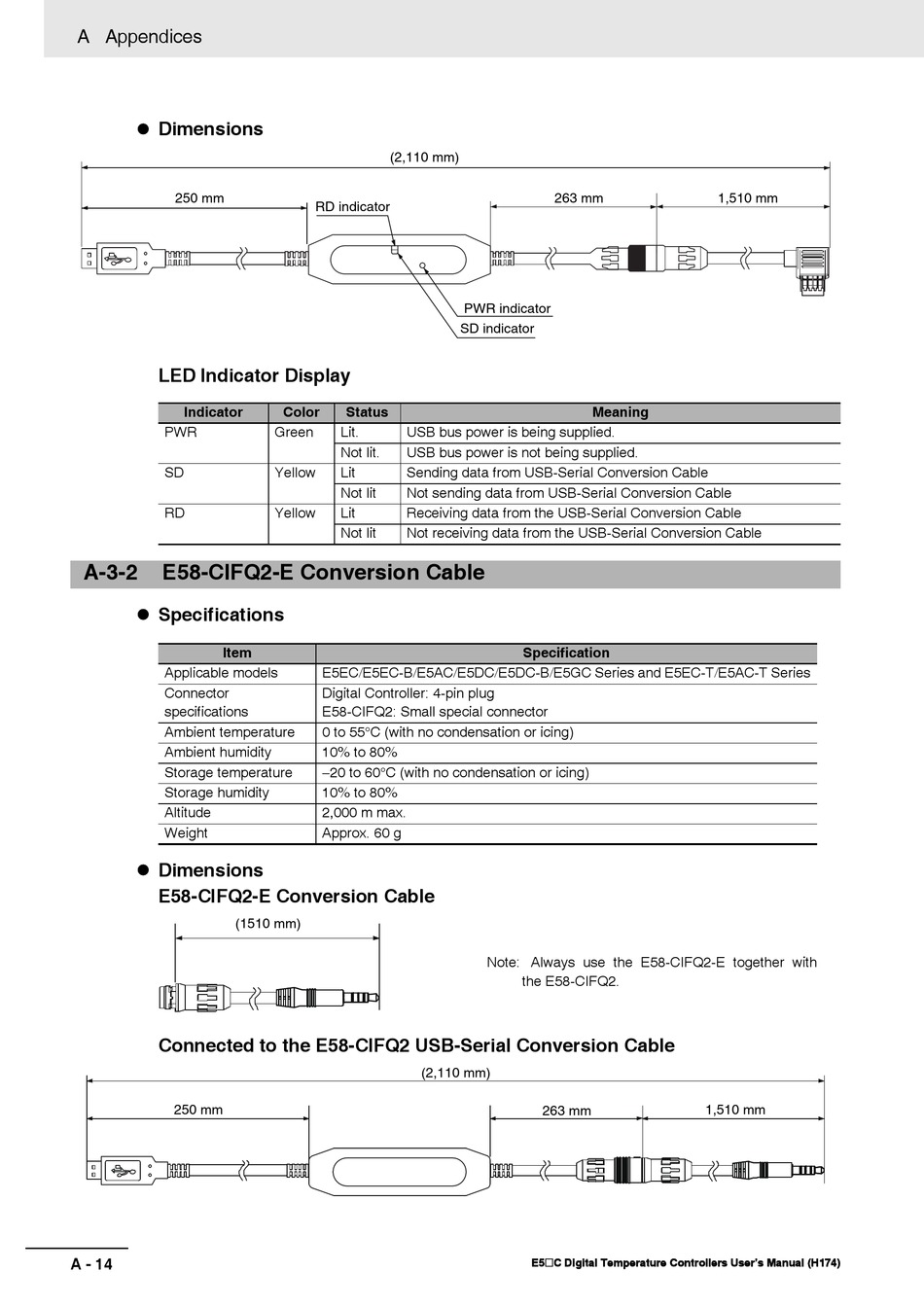

A-3-2 E58-Cifq2-E Conversion Cable - Omron E5*C Series User Manual

A Appendices
 Dimensions
250 mm
LED Indicator Display
Indicator
PWR
SD
RD
A-3-2 E58-CIFQ2-E Conversion Cable
 Specifications
Item
Applicable models
Connector
specifications
Ambient temperature
Ambient humidity
Storage temperature
Storage humidity
Altitude
Weight
 Dimensions
E58-CIFQ2-E Conversion Cable
(1510 mm)
Connected to the E58-CIFQ2 USB-Serial Conversion Cable
250 mm
A - 14
(2,110 mm)
RD indicator
Color Status
Green Lit. USB bus power is being supplied.
Not lit. USB bus power is not being supplied.
Yellow Lit Sending data from USB-Serial Conversion Cable
Not lit Not sending data from USB-Serial Conversion Cable
Yellow Lit Receiving data from the USB-Serial Conversion Cable
Not lit Not receiving data from the USB-Serial Conversion Cable
E5EC/E5EC-B/E5AC/E5DC/E5DC-B/E5GC Series and E5EC-T/E5AC-T Series
Digital Controller: 4-pin plug
E58-CIFQ2: Small special connector
0 to 55°C (with no condensation or icing)
10% to 80%
−20 to 60°C (with no condensation or icing)
10% to 80%
2,000 m max.
Approx. 60 g
(2,110 mm)
263 mm
PWR indicator
SD indicator
Meaning
Specification
Note: Always use the E58-CIFQ2-E together with
the E58-CIFQ2.
263 mm
E5@C Digital Temperature Controllers User's Manual (H174)
1,510 mm
1,510 mm
