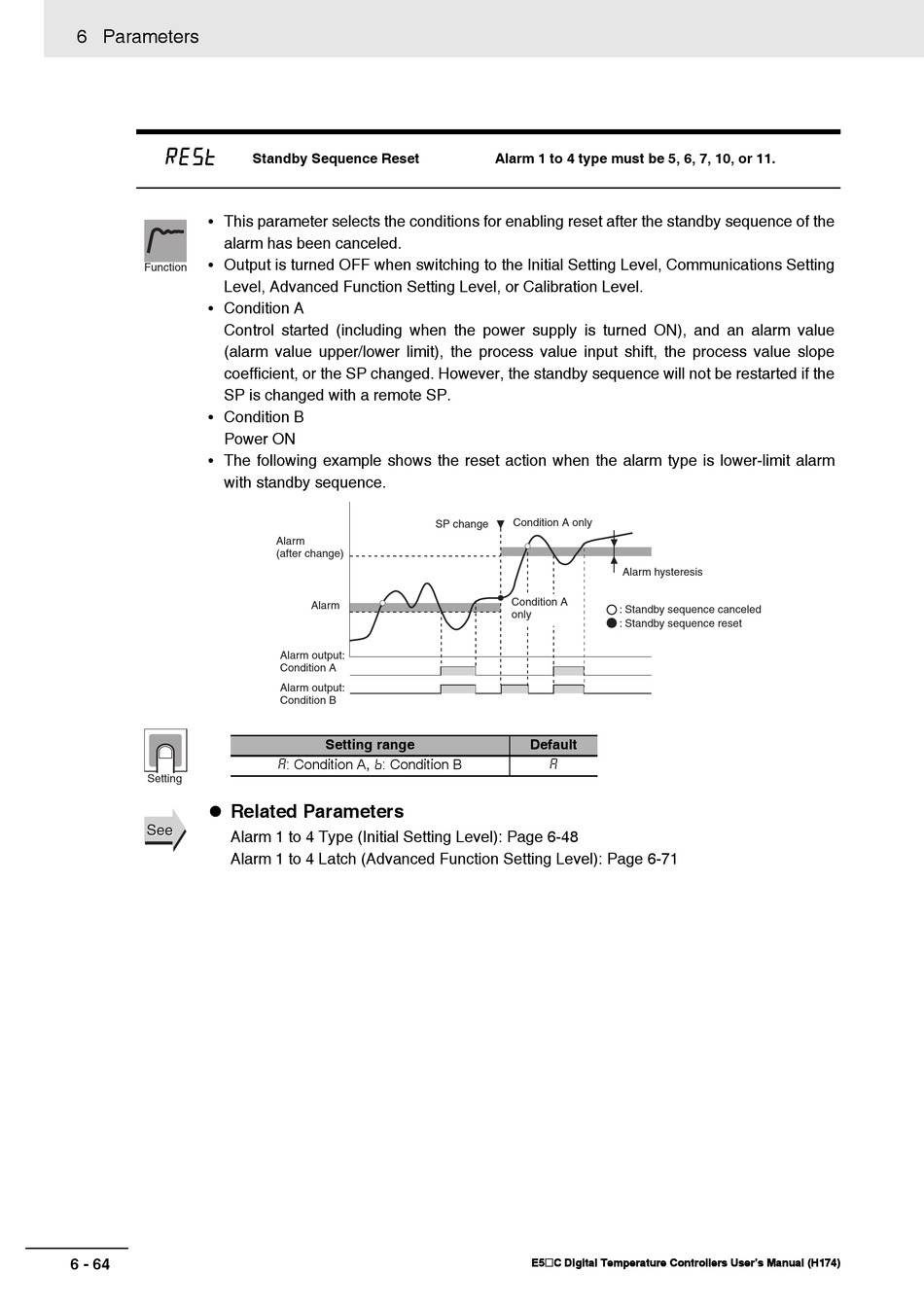

Omron E5*C Series User Manual page 334

6 Parameters
rest
• This parameter selects the conditions for enabling reset after the standby sequence of the
alarm has been canceled.
• Output is turned OFF when switching to the Initial Setting Level, Communications Setting
Function
Level, Advanced Function Setting Level, or Calibration Level.
• Condition A
Control started (including when the power supply is turned ON), and an alarm value
(alarm value upper/lower limit), the process value input shift, the process value slope
coefficient, or the SP changed. However, the standby sequence will not be restarted if the
SP is changed with a remote SP.
• Condition B
Power ON
• The following example shows the reset action when the alarm type is lower-limit alarm
with standby sequence.
Setting
 Related Parameters
See See
Alarm 1 to 4 Type (Initial Setting Level): Page 6-48
Alarm 1 to 4 Latch (Advanced Function Setting Level): Page 6-71
6 - 64
Standby Sequence Reset
Alarm
(after change)
Alarm
Alarm output:
Condition A
Alarm output:
Condition B
Setting range
a: Condition A, b: Condition B
Alarm 1 to 4 type must be 5, 6, 7, 10, or 11.
Condition A only
SP change
Condition A
only
Default
a
E5@C Digital Temperature Controllers User's Manual (H174)
Alarm hysteresis
: Standby sequence canceled
: Standby sequence reset
