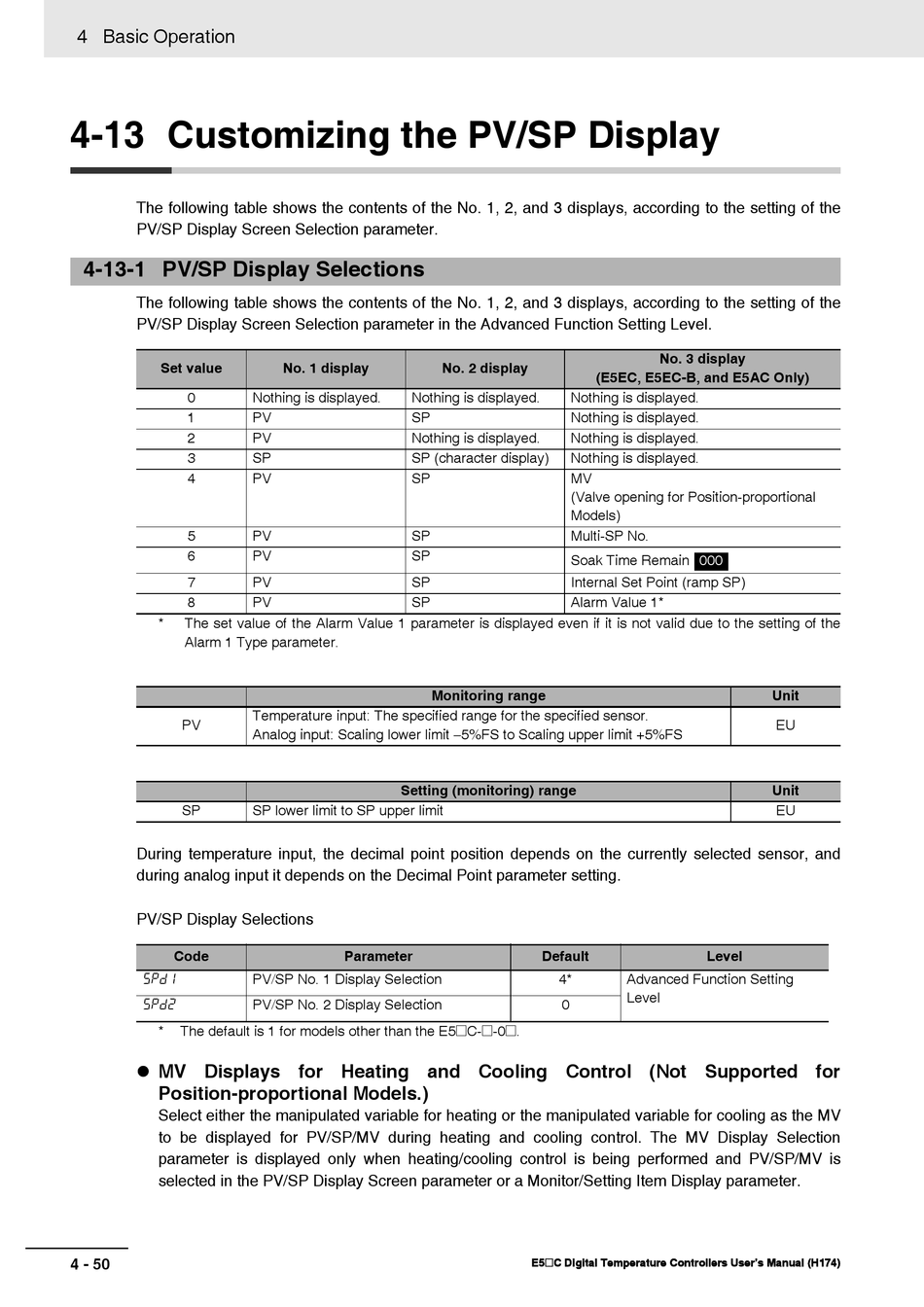

4-13 Customizing the PV/SP Display

The following table shows the contents of the No. 1, 2, and 3 displays, according to the setting of the
PV/SP Display Screen Selection parameter.

4-13-1 PV/SP Display Selections

The following table shows the contents of the No. 1, 2, and 3 displays, according to the setting of the
PV/SP Display Screen Selection parameter in the Advanced Function Setting Level.
Set value
0
1
2
3
4
5
6
7
8
* The set value of the Alarm Value 1 parameter is displayed even if it is not valid due to the setting of the
Alarm 1 Type parameter.
PV
SP
During temperature input, the decimal point position depends on the currently selected sensor, and
during analog input it depends on the Decimal Point parameter setting.

PV/SP Display Selections

Code
spd1
spd2
* The default is 1 for models other than the E5@C-@-0@.
 MV Displays for Heating and Cooling Control (Not Supported for
Position-proportional Models.)
Select either the manipulated variable for heating or the manipulated variable for cooling as the MV
to be displayed for PV/SP/MV during heating and cooling control. The MV Display Selection
parameter is displayed only when heating/cooling control is being performed and PV/SP/MV is
selected in the PV/SP Display Screen parameter or a Monitor/Setting Item Display parameter.
