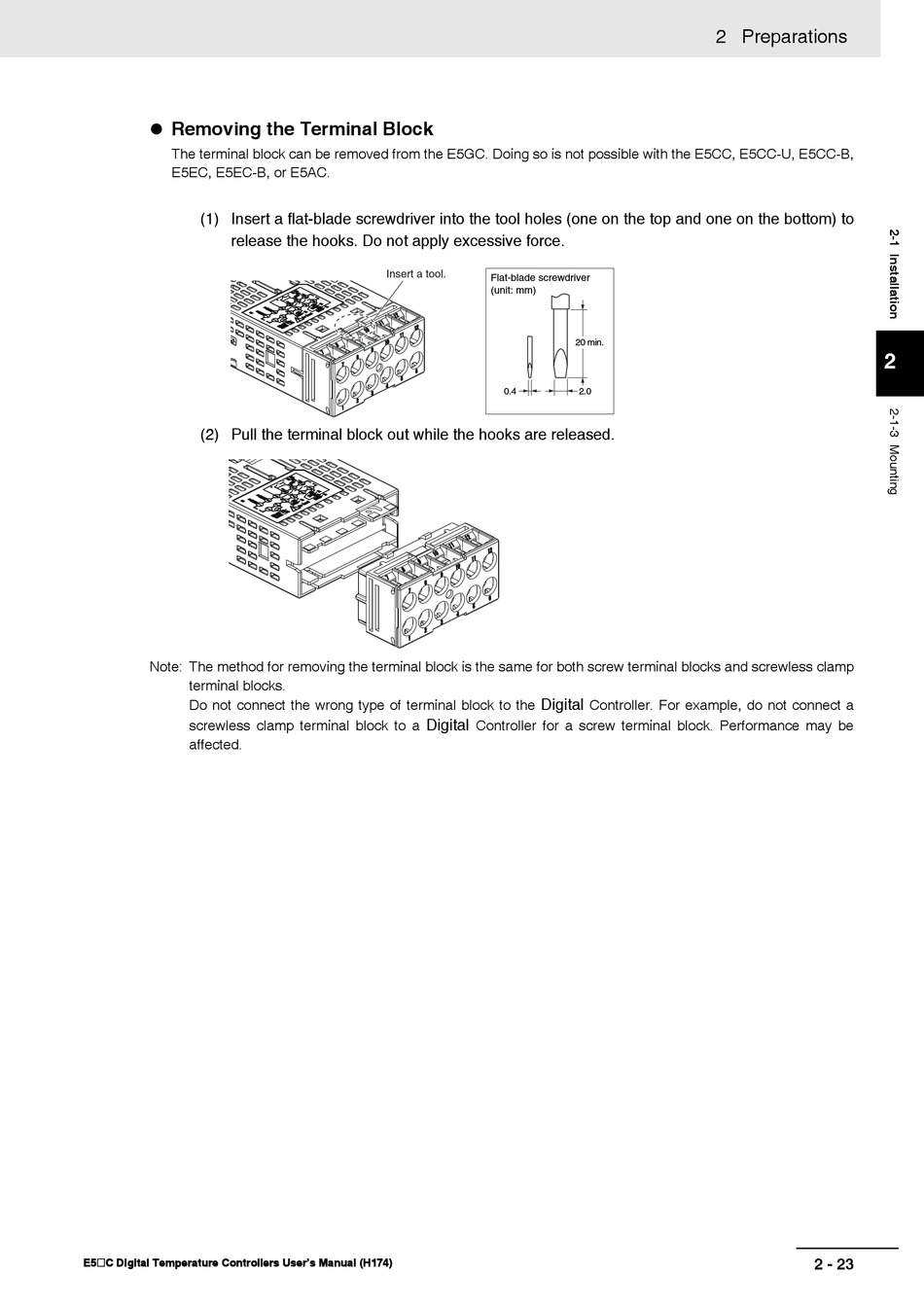

 Removing the Terminal Block
The terminal block can be removed from the E5GC. Doing so is not possible with the E5CC, E5CC-U, E5CC-B,
E5EC, E5EC-B, or E5AC.
(1) Insert a flat-blade screwdriver into the tool holes (one on the top and one on the bottom) to
release the hooks. Do not apply excessive force.
(2) Pull the terminal block out while the hooks are released.
Note: The method for removing the terminal block is the same for both screw terminal blocks and screwless clamp
terminal blocks.
Do not connect the wrong type of terminal block to the
screwless clamp terminal block to a
affected.
E5@C Digital Temperature Controllers User's Manual (H174)
Insert a tool.
Flat-blade screwdriver
(unit: mm)
0.4
Digital
Digital
Controller for a screw terminal block. Performance may be
2 Preparations
20 min.
2.0
Controller. For example, do not connect a
2
2 - 23
