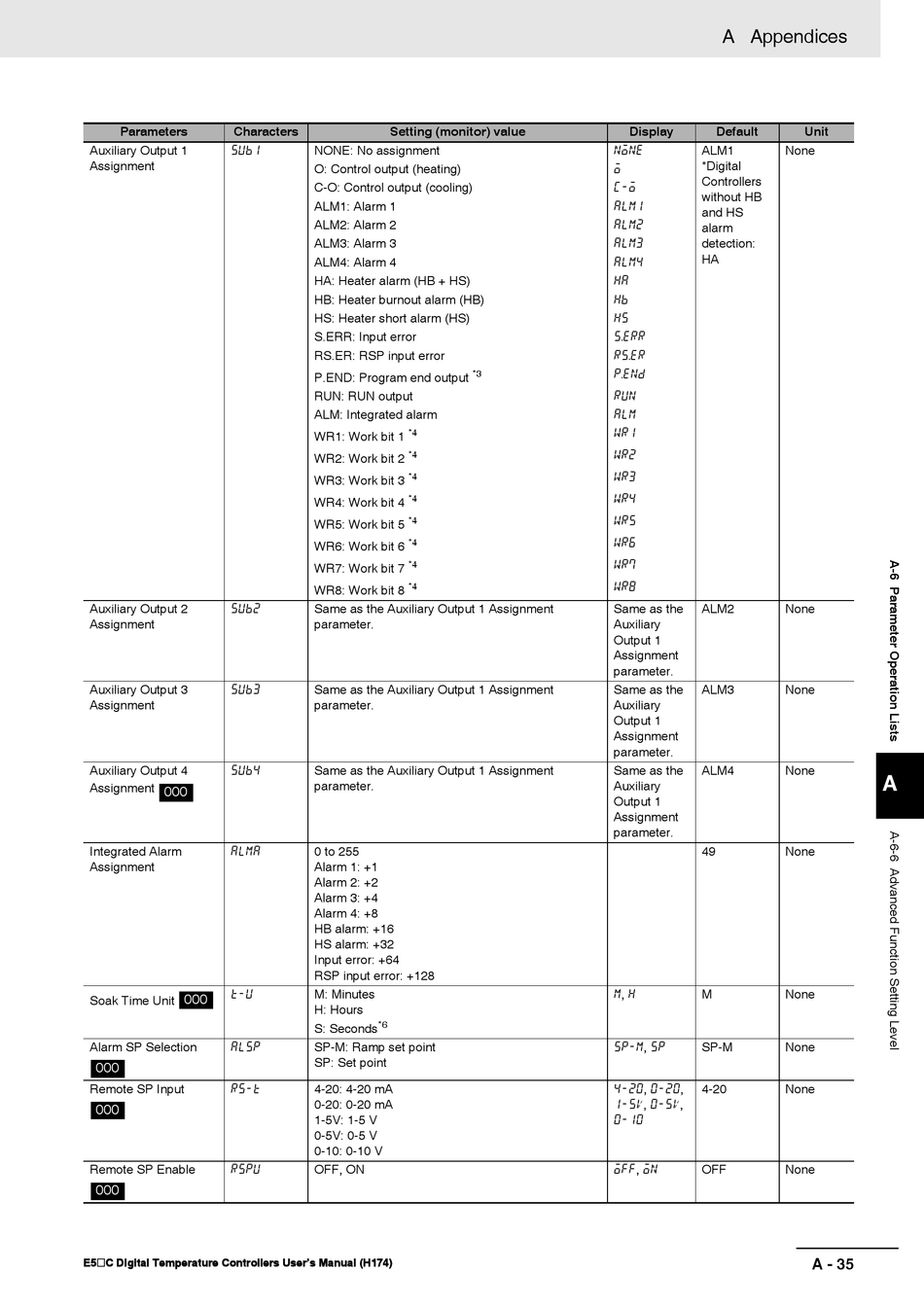

Omron E5*C Series User Manual page 421

Parameters Characters
Auxiliary Output 1
sub1
Assignment
Auxiliary Output 2
sub2
Assignment
Auxiliary Output 3
sub3
Assignment
Auxiliary Output 4
sub4
Assignment
000
Integrated Alarm
alma
Assignment
t-u
000
Soak Time Unit
Alarm SP Selection
alsp
000
Remote SP Input
rs-t
000
Remote SP Enable
rspu
000
E5@C Digital Temperature Controllers User's Manual (H174)
Setting (monitor) value
NONE: No assignment
O: Control output (heating)
C-O: Control output (cooling)
ALM1: Alarm 1
ALM2: Alarm 2
ALM3: Alarm 3
ALM4: Alarm 4
HA: Heater alarm (HB + HS)
HB: Heater burnout alarm (HB)
HS: Heater short alarm (HS)
S.ERR: Input error
RS.ER: RSP input error
*3
P.END: Program end output
RUN: RUN output
ALM: Integrated alarm
*4
WR1: Work bit 1
*4
WR2: Work bit 2
*4
WR3: Work bit 3
*4
WR4: Work bit 4
*4
WR5: Work bit 5
*4
WR6: Work bit 6
*4
WR7: Work bit 7
*4
WR8: Work bit 8
Same as the Auxiliary Output 1 Assignment
parameter.
Same as the Auxiliary Output 1 Assignment
parameter.
Same as the Auxiliary Output 1 Assignment
parameter.
0 to 255
Alarm 1: +1
Alarm 2: +2
Alarm 3: +4
Alarm 4: +8
HB alarm: +16
HS alarm: +32
Input error: +64
RSP input error: +128
M: Minutes
H: Hours
*6
S: Seconds
SP-M: Ramp set point
SP: Set point
4-20: 4-20 mA
0-20: 0-20 mA
1-5V: 1-5 V
0-5V: 0-5 V
0-10: 0-10 V
OFF, ON
A Appendices
Display Default
ALM1 None
none
*Digital
o
Controllers
c-o
without HB
alm1
and HS
alm2
alarm
detection:
alm3
HA
alm4
ha
hb
hs
s.err
rs.er
p.end
run
alm
wr1
wr2
wr3
wr4
wr5
wr6
wr7
wr8
Same as the ALM2 None
Auxiliary
Output 1
Assignment
parameter.
Same as the ALM3 None
Auxiliary
Output 1
Assignment
parameter.
Same as the ALM4 None
Auxiliary
Output 1
Assignment
parameter.
49 None
M None
m, h
SP-M None
sp-m, sp
4-20 None
4-20, 0-20,
1-5V, 0-5V,
0-10
OFF None
off, on
Unit
A
A - 35
