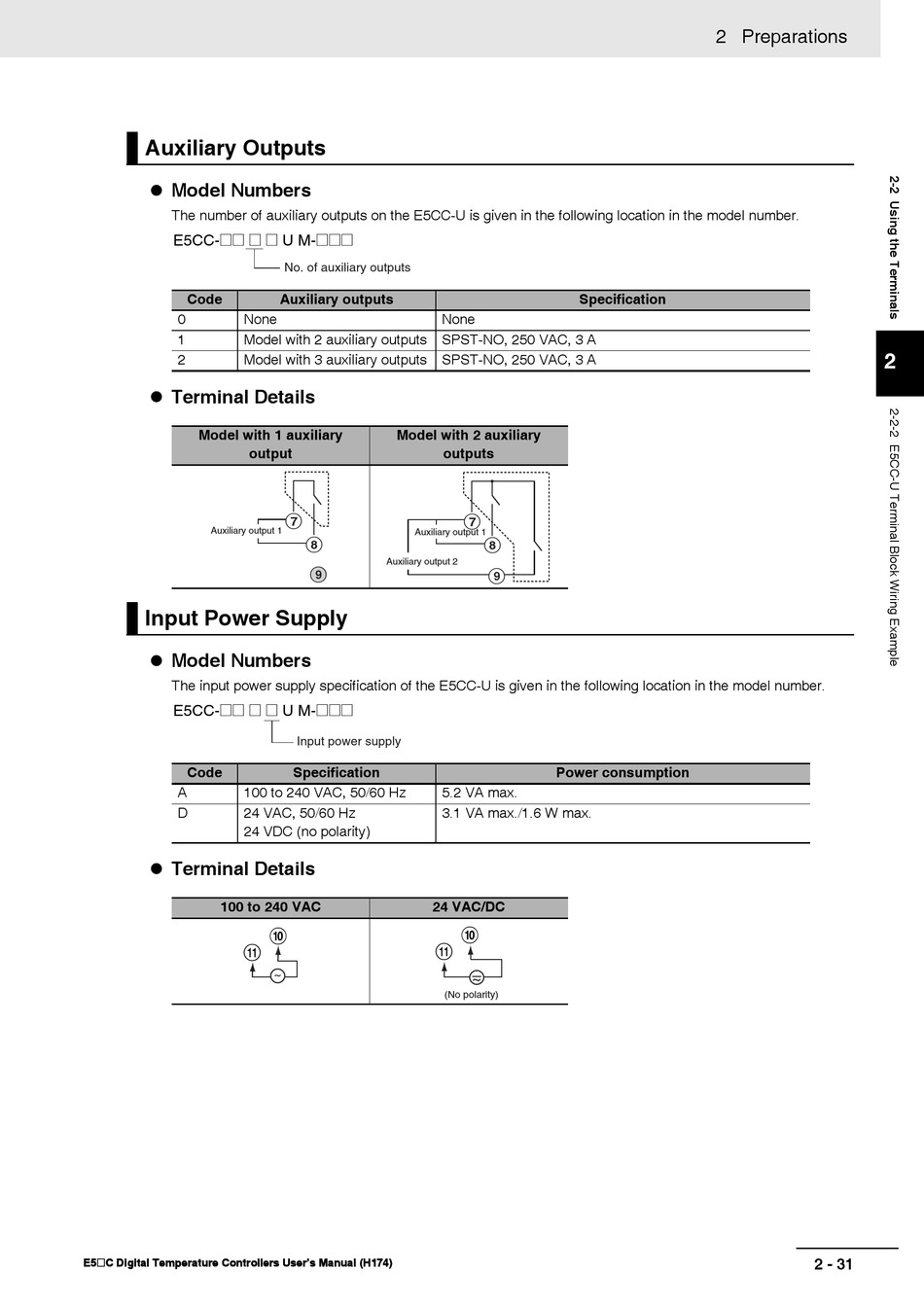

Auxiliary Outputs
 Model Numbers
The number of auxiliary outputs on the E5CC-U is given in the following location in the model number.
E5CC-@@ @ @ U M-@@@
Code
0 None
1 Model with 2 auxiliary outputs
2 Model with 3 auxiliary outputs
 Terminal Details
Model with 1 auxiliary
output
Auxiliary output 1
Input Power Supply
 Model Numbers
The input power supply specification of the E5CC-U is given in the following location in the model number.
E5CC-@@ @ @ U M-@@@
Code
A 100 to 240 VAC, 50/60 Hz
D 24 VAC, 50/60 Hz
24 VDC (no polarity)
 Terminal Details
100 to 240 VAC
K
E5@C Digital Temperature Controllers User's Manual (H174)
No. of auxiliary outputs
Auxiliary outputs
None
SPST-NO, 250 VAC, 3 A
SPST-NO, 250 VAC, 3 A
Model with 2 auxiliary
outputs
G
Auxiliary output 1
H
Auxiliary output 2
I
Input power supply
Specification
5.2 VA max.
3.1 VA max./1.6 W max.
24 VAC/DC
J
K
(No polarity)
Specification
G
H
I
Power consumption
J
2 Preparations
2
2 - 31
