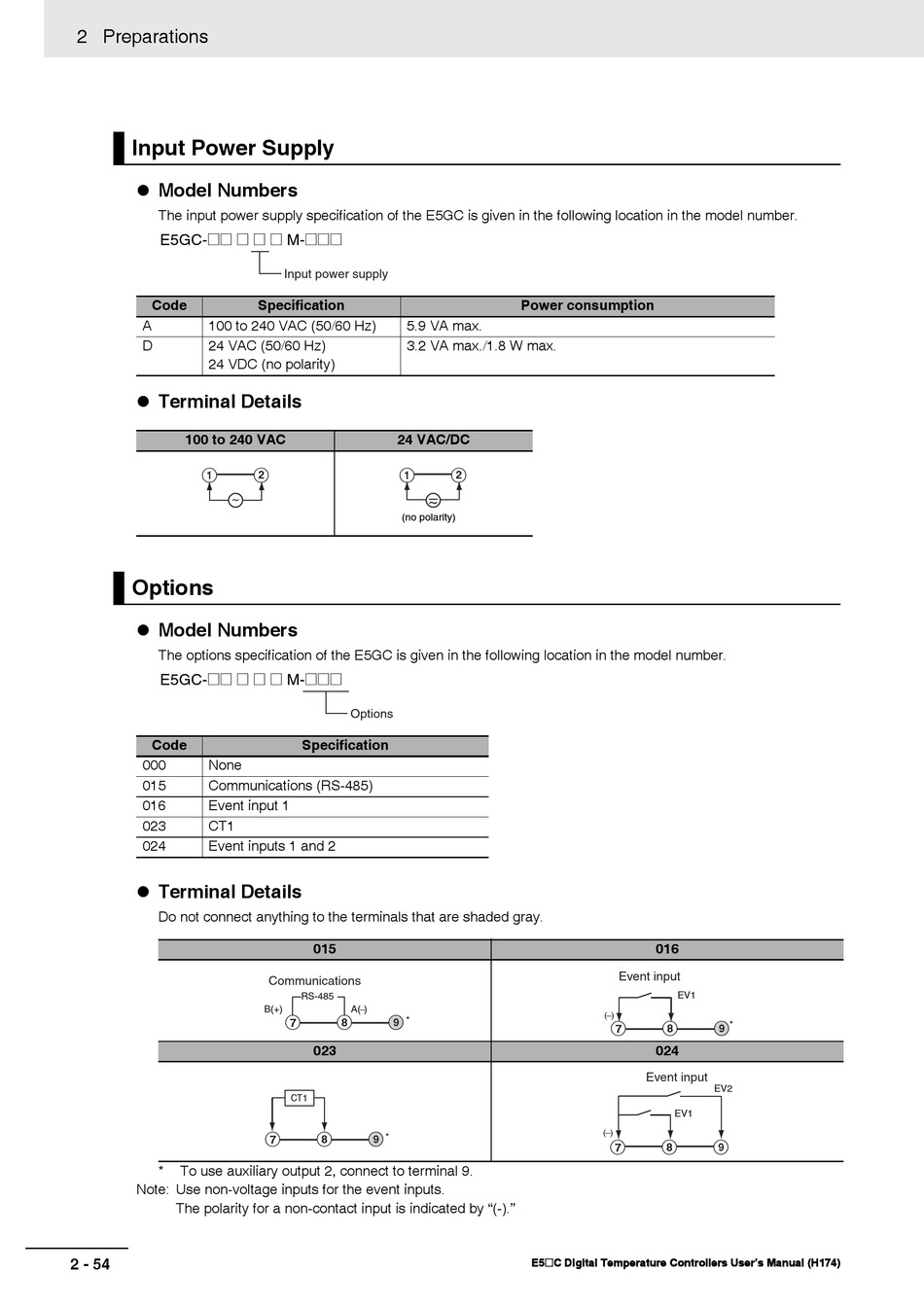

2 Preparations
Input Power Supply
 Model Numbers
The input power supply specification of the E5GC is given in the following location in the model number.
E5GC-@@ @ @ @ M-@@@
Code
A 100 to 240 VAC (50/60 Hz)
D 24 VAC (50/60 Hz)
24 VDC (no polarity)
 Terminal Details
100 to 240 VAC
A
Options
 Model Numbers
The options specification of the E5GC is given in the following location in the model number.
E5GC-@@ @ @ @ M-@@@
Code
000 None
015 Communications (RS-485)
016 Event input 1
023 CT1
024 Event inputs 1 and 2
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
* To use auxiliary output 2, connect to terminal 9.
Note: Use non-voltage inputs for the event inputs.
The polarity for a non-contact input is indicated by "(-)."
2 - 54
Input power supply
Specification
5.9 VA max.
3.2 VA max./1.8 W max.
24 VAC/DC
B A
(no polarity)
Options
Specification
015
Communications
RS-485
B(+) A(−)
G H I
*
023
CT1
G H I
*
Power consumption
B
Event input
(−)
G
(−)
G
E5@C Digital Temperature Controllers User's Manual (H174)
016
EV1
H I
*
024
Event input
EV2
EV1
H I
