6 Parameters
6-5

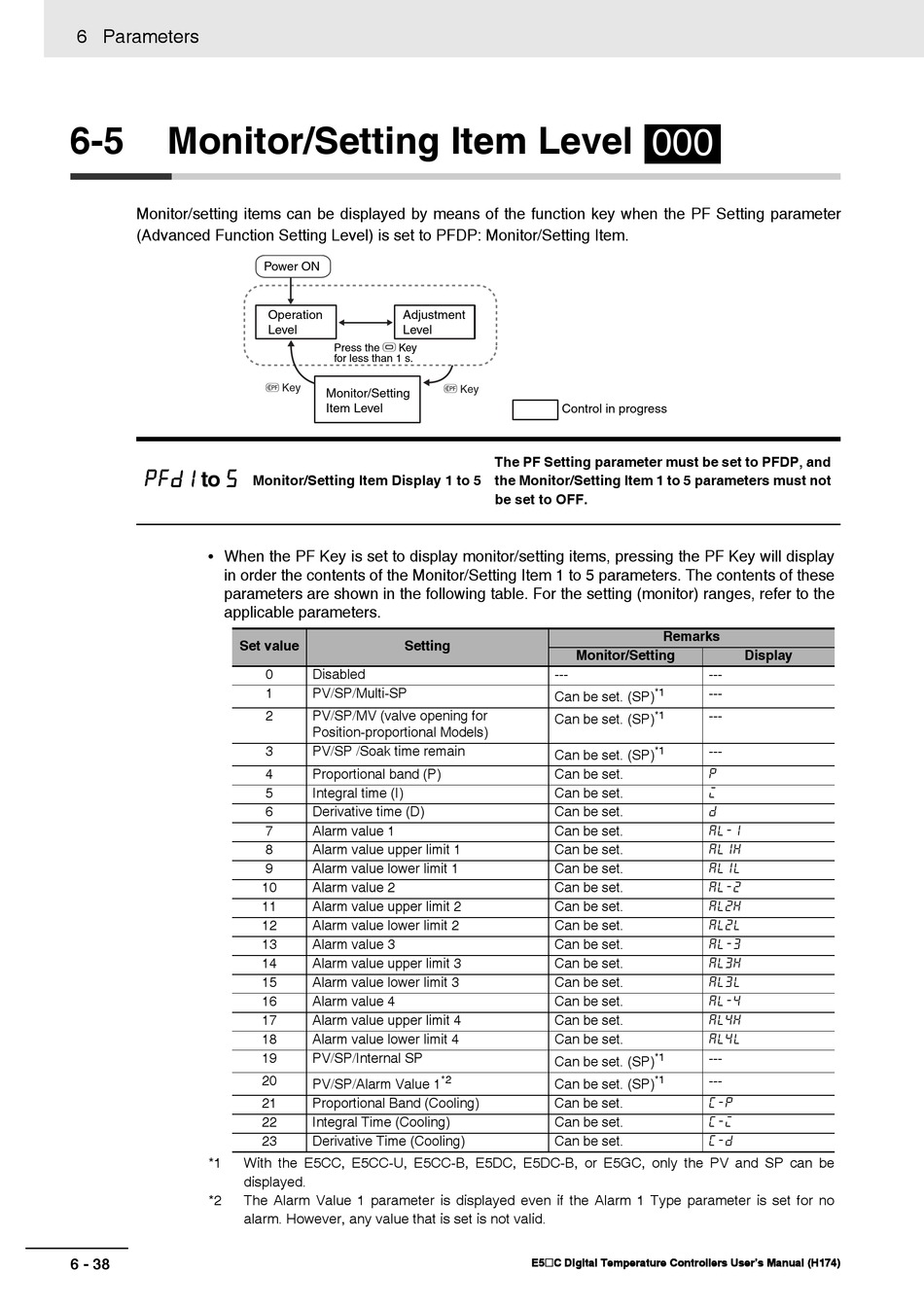

Monitor/Setting Item Level

Monitor/setting items can be displayed by means of the function key when the PF Setting parameter
(Advanced Function Setting Level) is set to PFDP: Monitor/Setting Item.
pfd1 to 5
• When the PF Key is set to display monitor/setting items, pressing the PF Key will display
in order the contents of the Monitor/Setting Item 1 to 5 parameters. The contents of these
parameters are shown in the following table. For the setting (monitor) ranges, refer to the
applicable parameters.
Set value
*1 With the E5CC, E5CC-U, E5CC-B, E5DC, E5DC-B, or E5GC, only the PV and SP can be
displayed.
*2 The Alarm Value 1 parameter is displayed even if the Alarm 1 Type parameter is set for no
alarm. However, any value that is set is not valid.
6 - 38
Power ON
Operation Adjustment
Level Level
Press the O Key
for less than 1 s.
S Key
Monitor/Setting
Item Level
Monitor/Setting Item Display 1 to 5
Setting
0 Disabled
1 PV/SP/Multi-SP
2 PV/SP/MV (valve opening for
Position-proportional Models)
3 PV/SP /Soak time remain
4 Proportional band (P)
5 Integral time (I)
6 Derivative time (D)
7 Alarm value 1
8 Alarm value upper limit 1
9 Alarm value lower limit 1
10 Alarm value 2
11 Alarm value upper limit 2
12 Alarm value lower limit 2
13 Alarm value 3
14 Alarm value upper limit 3
15 Alarm value lower limit 3
16 Alarm value 4
17 Alarm value upper limit 4
18 Alarm value lower limit 4
19 PV/SP/Internal SP
20
PV/SP/Alarm Value 1
21 Proportional Band (Cooling)
22 Integral Time (Cooling)
23 Derivative Time (Cooling)
S Key
Control in progress
The PF Setting parameter must be set to PFDP, and
the Monitor/Setting Item 1 to 5 parameters must not
be set to OFF.
Monitor/Setting
---
Can be set. (SP)
Can be set. (SP)
Can be set. (SP)
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set.
Can be set. (SP)
*2
Can be set. (SP)
Can be set.
Can be set.
Can be set.
E5@C Digital Temperature Controllers User's Manual (H174)
000
Remarks
Display
---
---
*1
*1 ---
---
*1
p
i
d
al-1
al1h
al1l
al-2
al2h
al2l
al-3
al3h
al3l
al-4
al4h
al4l
---
*1
*1 ---
c-p
c-i
c-d
