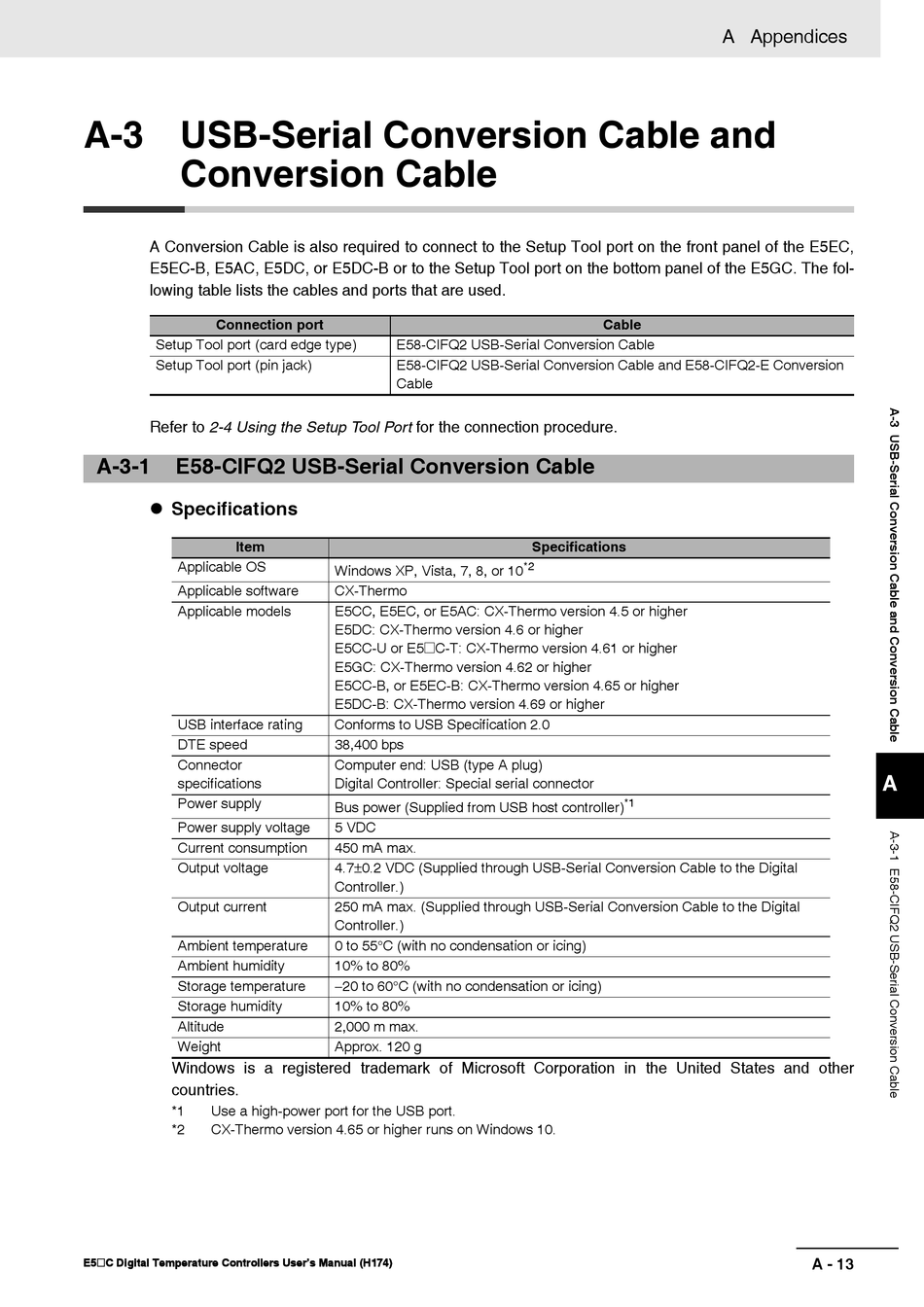

A-3 USB-Serial Conversion Cable and
Conversion Cable
A Conversion Cable is also required to connect to the Setup Tool port on the front panel of the E5EC,
E5EC-B, E5AC, E5DC, or E5DC-B or to the Setup Tool port on the bottom panel of the E5GC. The fol-
lowing table lists the cables and ports that are used.
Connection port
Setup Tool port (card edge type)
Setup Tool port (pin jack)
Refer to 2-4 Using the Setup Tool Port for the connection procedure.
A-3-1 E58-CIFQ2 USB-Serial Conversion Cable
 Specifications
Item
Applicable OS
Applicable software
Applicable models
USB interface rating
DTE speed
Connector
specifications
Power supply
Power supply voltage
Current consumption
Output voltage
Output current
Ambient temperature
Ambient humidity
Storage temperature
Storage humidity
Altitude
Weight
Windows is a registered trademark of Microsoft Corporation in the United States and other
countries.
*1 Use a high-power port for the USB port.
*2 CX-Thermo version 4.65 or higher runs on Windows 10.
E5@C Digital Temperature Controllers User's Manual (H174)
E58-CIFQ2 USB-Serial Conversion Cable
E58-CIFQ2 USB-Serial Conversion Cable and E58-CIFQ2-E Conversion
Cable
Windows XP, Vista, 7, 8, or 10
CX-Thermo
E5CC, E5EC, or E5AC: CX-Thermo version 4.5 or higher
E5DC: CX-Thermo version 4.6 or higher
E5CC-U or E5@C-T: CX-Thermo version 4.61 or higher
E5GC: CX-Thermo version 4.62 or higher
E5CC-B, or E5EC-B: CX-Thermo version 4.65 or higher
E5DC-B: CX-Thermo version 4.69 or higher
Conforms to USB Specification 2.0
38,400 bps
Computer end: USB (type A plug)
Digital Controller: Special serial connector
Bus power (Supplied from USB host controller)
5 VDC
450 mA max.
4.7±0.2 VDC (Supplied through USB-Serial Conversion Cable to the Digital
Controller.)
250 mA max. (Supplied through USB-Serial Conversion Cable to the Digital
Controller.)
0 to 55°C (with no condensation or icing)
10% to 80%
−20 to 60°C (with no condensation or icing)
10% to 80%
2,000 m max.
Approx. 120 g
Cable
Specifications
*2
*1
A Appendices
A
A - 13
