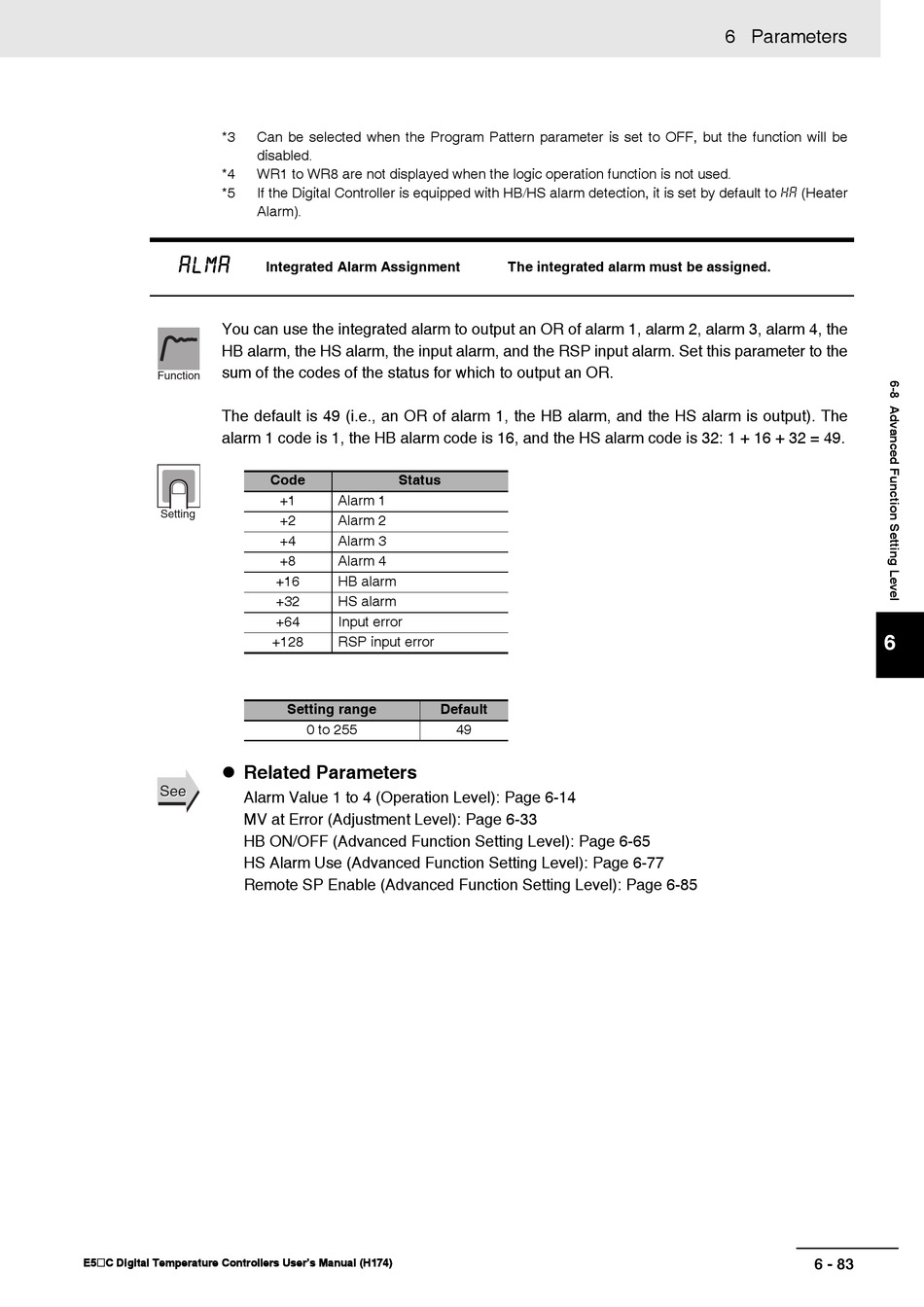

*3 Can be selected when the Program Pattern parameter is set to OFF, but the function will be
disabled.
*4 WR1 to WR8 are not displayed when the logic operation function is not used.
*5 If the Digital Controller is equipped with HB/HS alarm detection, it is set by default to ha (Heater
Alarm).
alma
You can use the integrated alarm to output an OR of alarm 1, alarm 2, alarm 3, alarm 4, the
HB alarm, the HS alarm, the input alarm, and the RSP input alarm. Set this parameter to the
sum of the codes of the status for which to output an OR.
Function
The default is 49 (i.e., an OR of alarm 1, the HB alarm, and the HS alarm is output). The
alarm 1 code is 1, the HB alarm code is 16, and the HS alarm code is 32: 1 + 16 + 32 = 49.
Setting
 Related Parameters
See
See
Alarm Value 1 to 4 (Operation Level): Page 6-14
MV at Error (Adjustment Level): Page 6-33
HB ON/OFF (Advanced Function Setting Level): Page 6-65
HS Alarm Use (Advanced Function Setting Level): Page 6-77
Remote SP Enable (Advanced Function Setting Level): Page 6-85
E5@C Digital Temperature Controllers User's Manual (H174)
Integrated Alarm Assignment
Code Status
+1 Alarm 1
+2 Alarm 2
+4 Alarm 3
+8 Alarm 4
+16 HB alarm
+32 HS alarm
+64 Input error
+128 RSP input error
Setting range Default
0 to 255
The integrated alarm must be assigned.
49
