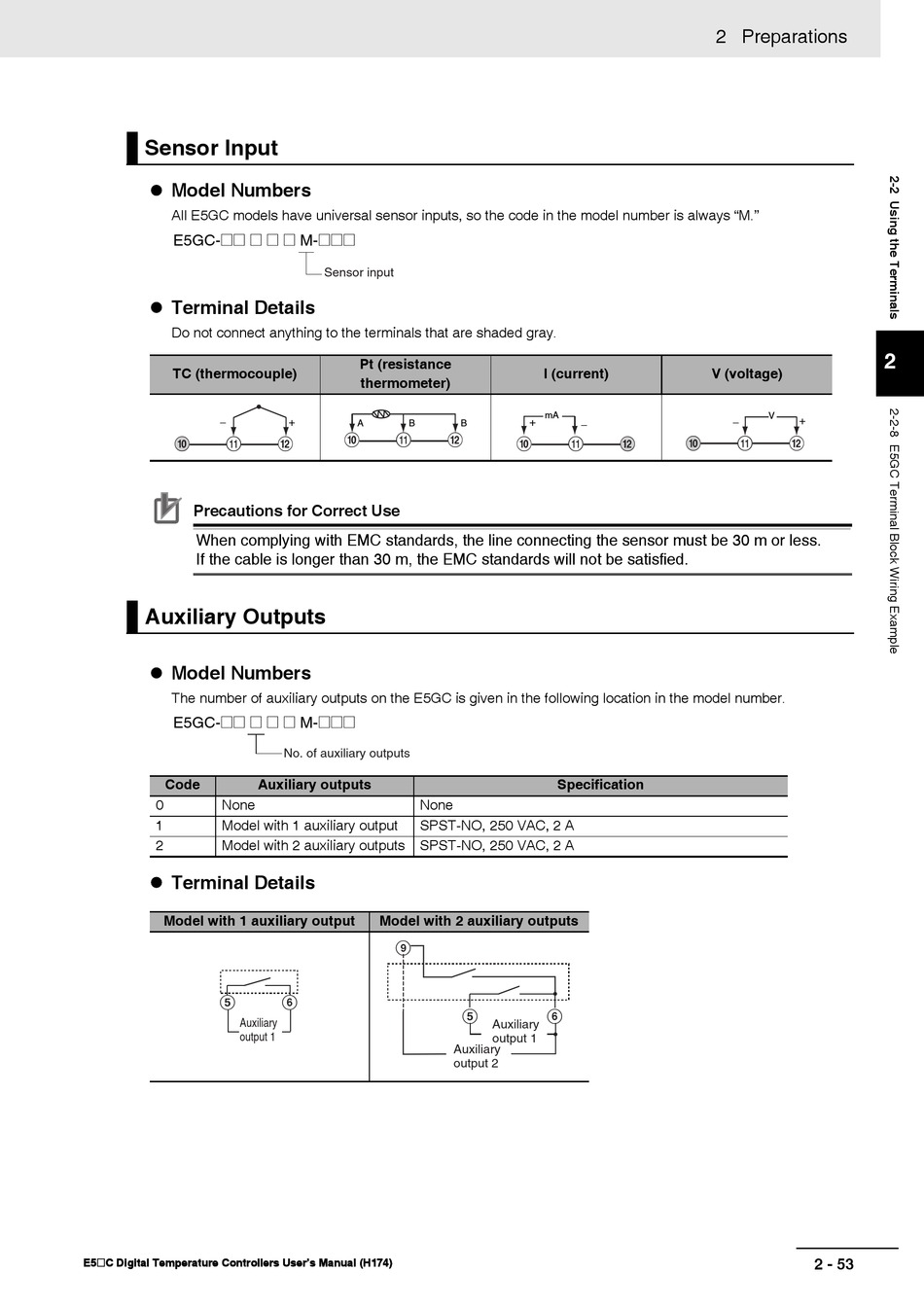

Sensor Input
 Model Numbers
All E5GC models have universal sensor inputs, so the code in the model number is always "M."
E5GC-@@ @ @ @ M-@@@
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
TC (thermocouple)
−
J K
Precautions for Correct Use
When complying with EMC standards, the line connecting the sensor must be 30 m or less.
If the cable is longer than 30 m, the EMC standards will not be satisfied.
Auxiliary Outputs
 Model Numbers
The number of auxiliary outputs on the E5GC is given in the following location in the model number.
E5GC-@@ @ @ @ M-@@@
Code Auxiliary outputs
0 None
1 Model with 1 auxiliary output
2 Model with 2 auxiliary outputs
 Terminal Details
Model with 1 auxiliary output
E
Auxiliary
output 1
E5@C Digital Temperature Controllers User's Manual (H174)
Sensor input
Pt (resistance
thermometer)
+
A B
J K L
L
No. of auxiliary outputs
None
SPST-NO, 250 VAC, 2 A
SPST-NO, 250 VAC, 2 A
Model with 2 auxiliary outputs
I
F
I (current)
mA
+ −
B
J K L
Specification
E F
Auxiliary
output 1
Auxiliary
output 2
2 Preparations
V (voltage)
V
−
+
J K L
2 - 53
