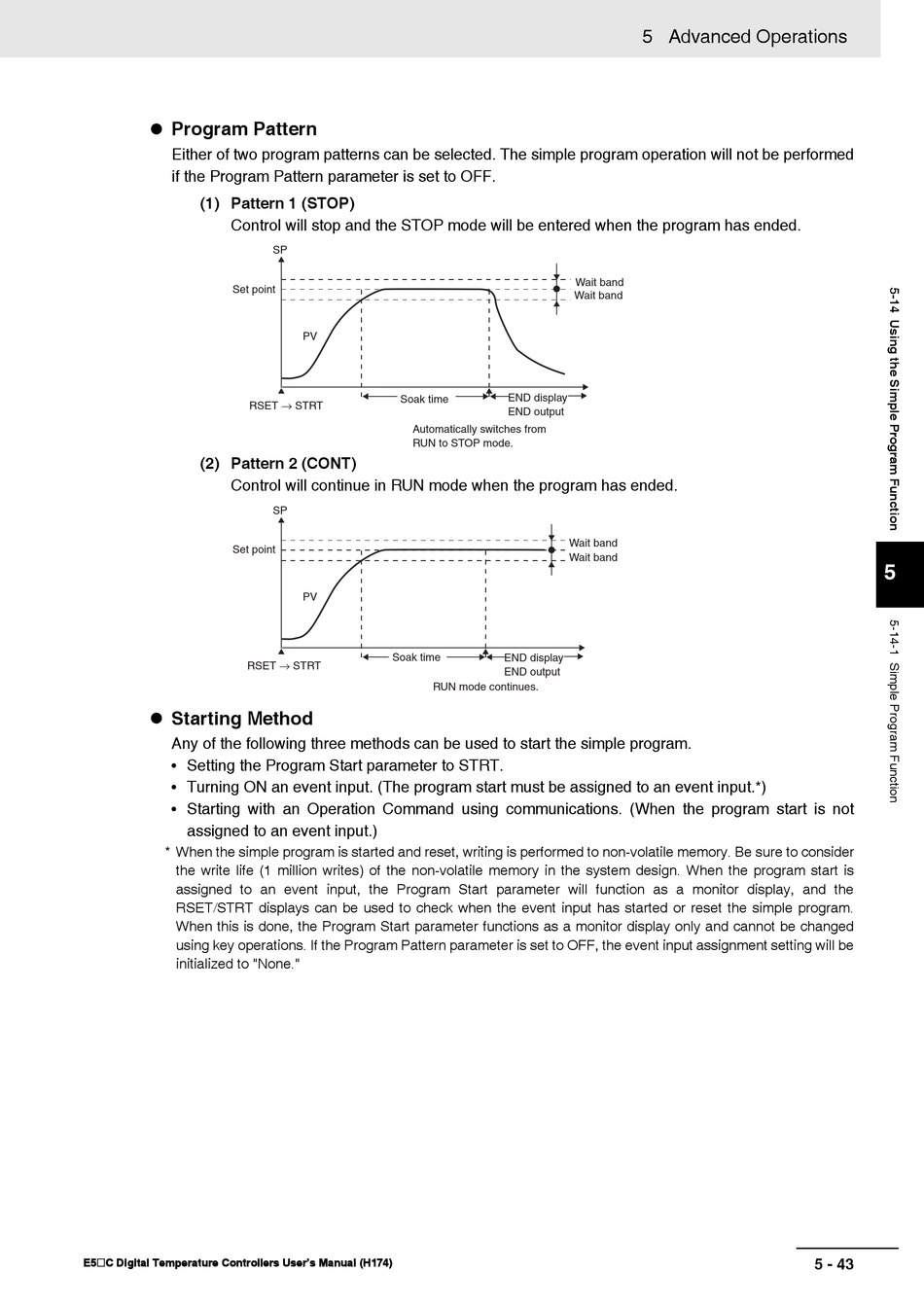

 Program Pattern
Either of two program patterns can be selected. The simple program operation will not be performed
if the Program Pattern parameter is set to OFF.
(1) Pattern 1 (STOP)
Control will stop and the STOP mode will be entered when the program has ended.
Set point
RSET → STRT
(2) Pattern 2 (CONT)
Control will continue in RUN mode when the program has ended.
Set point
RSET → STRT
 Starting Method
Any of the following three methods can be used to start the simple program.
• Setting the Program Start parameter to STRT.
• Turning ON an event input. (The program start must be assigned to an event input.*)
• Starting with an Operation Command using communications. (When the program start is not
assigned to an event input.)
* When the simple program is started and reset, writing is performed to non-volatile memory. Be sure to consider
the write life (1 million writes) of the non-volatile memory in the system design. When the program start is
assigned to an event input, the Program Start parameter will function as a monitor display, and the
RSET/STRT displays can be used to check when the event input has started or reset the simple program.
When this is done, the Program Start parameter functions as a monitor display only and cannot be changed
using key operations. If the Program Pattern parameter is set to OFF, the event input assignment setting will be
initialized to "None."
E5@C Digital Temperature Controllers User's Manual (H174)
SP
PV
Soak time
Automatically switches from
RUN to STOP mode.
SP
PV
Soak time
RUN mode continues.
5 Advanced Operations
Wait band
Wait band
END display
END output
Wait band
Wait band
END display
END output
5
5 - 43
