E5GC

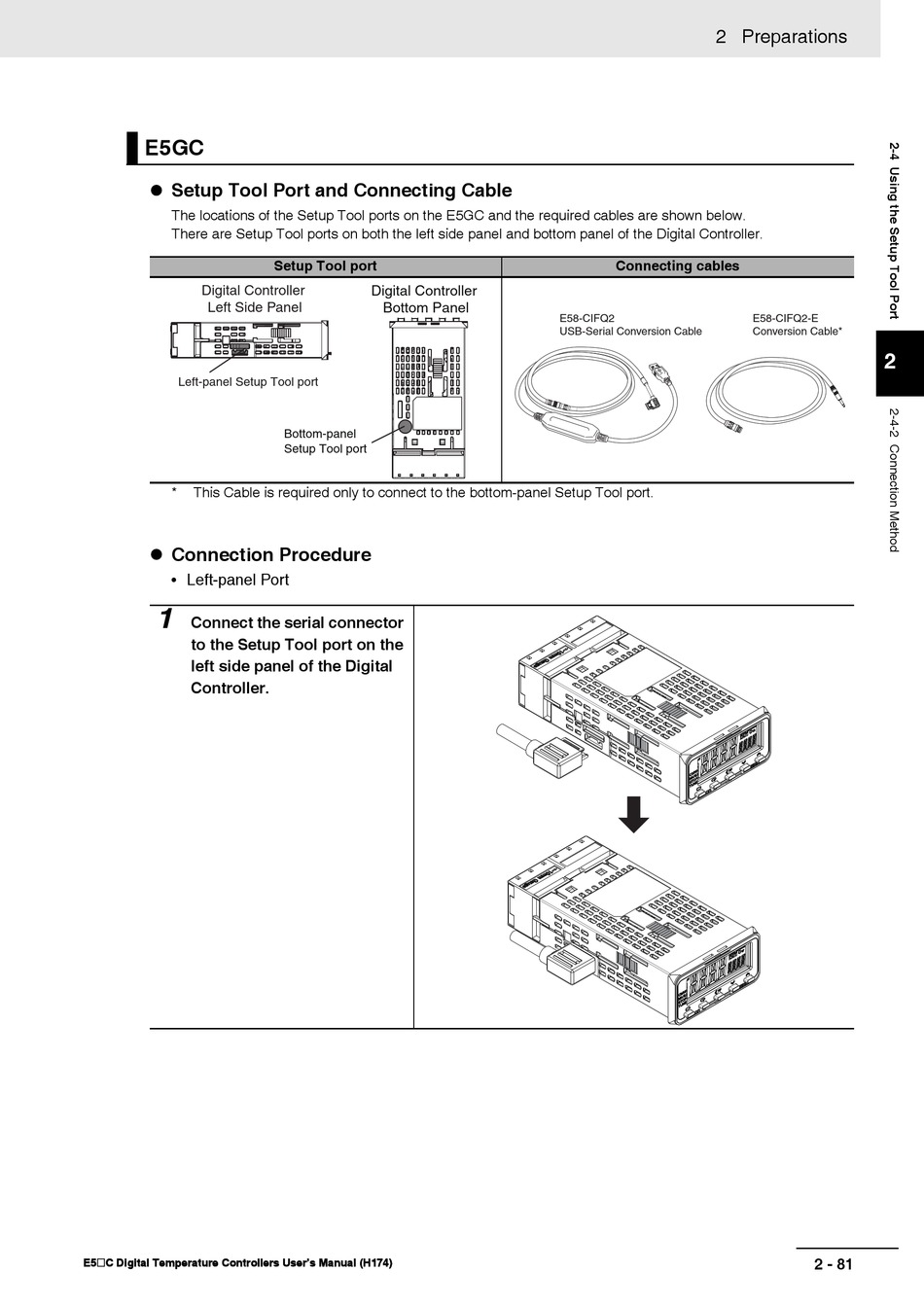

 Setup Tool Port and Connecting Cable
The locations of the Setup Tool ports on the E5GC and the required cables are shown below.
There are Setup Tool ports on both the left side panel and bottom panel of the Digital Controller.
Digital Controller
Left Side Panel
Left-panel Setup Tool port
* This Cable is required only to connect to the bottom-panel Setup Tool port.
 Connection Procedure
• Left-panel Port
1
Connect the serial connector
to the Setup Tool port on the
left side panel of the Digital
Controller.
E5@C Digital Temperature Controllers User's Manual (H174)
Setup Tool port
Digital Controller
Bottom Panel
Bottom-panel
Setup Tool port
2 Preparations
Connecting cables
E58-CIFQ2
USB-Serial Conversion Cable
E58-CIFQ2-E
Conversion Cable*
2
2 - 81
