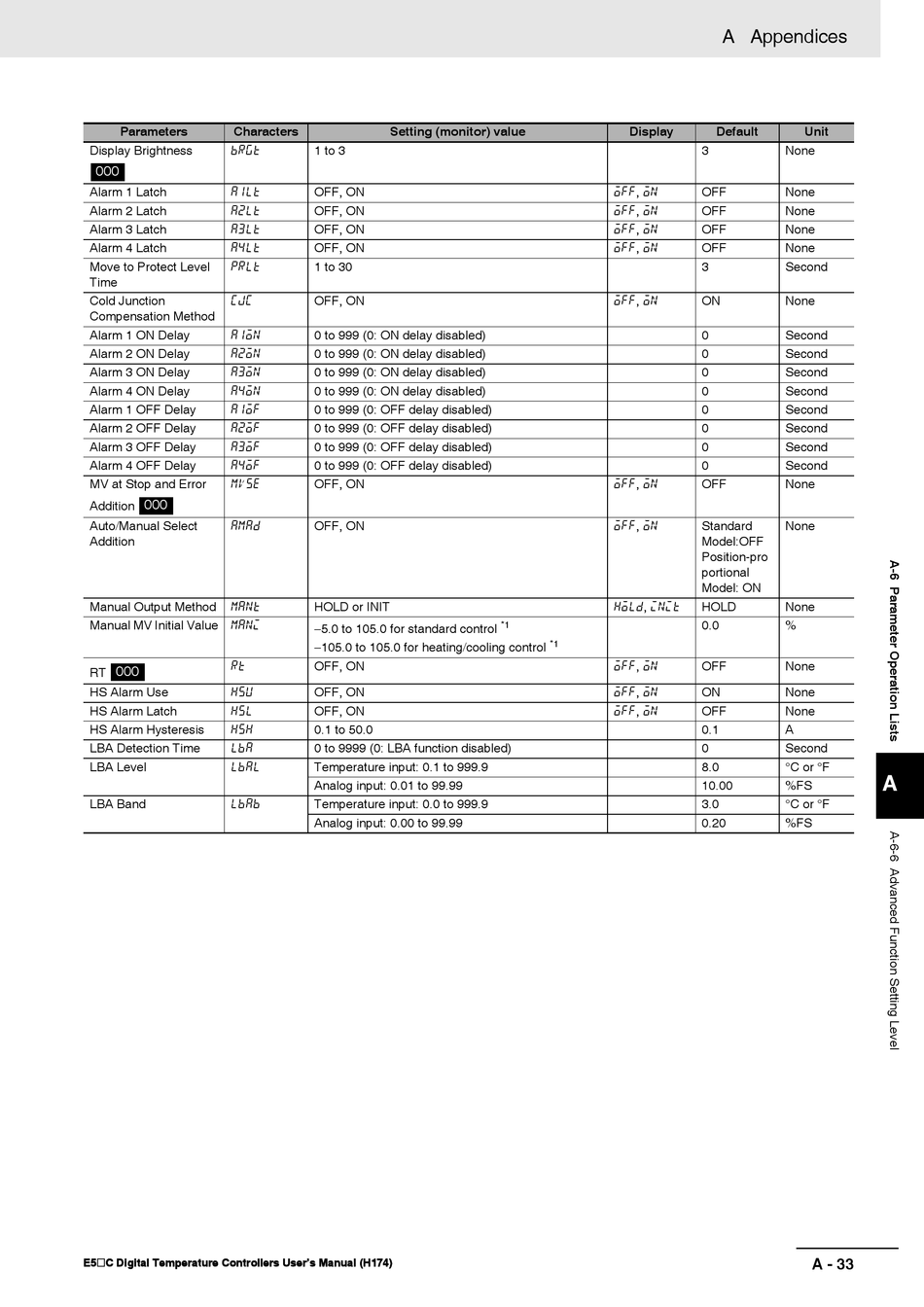

Omron E5*C Series User Manual page 419

Parameters Characters
Display Brightness
brgt
000
Alarm 1 Latch
a1lt
Alarm 2 Latch
a2lt
Alarm 3 Latch
a3lt
Alarm 4 Latch
a4lt
Move to Protect Level
prlt
Time
Cold Junction
cjc
Compensation Method
Alarm 1 ON Delay
a1on
Alarm 2 ON Delay
a2on
Alarm 3 ON Delay
a3on
Alarm 4 ON Delay
a4on
Alarm 1 OFF Delay
a1of
Alarm 2 OFF Delay
a2of
Alarm 3 OFF Delay
a3of
Alarm 4 OFF Delay
a4of
MV at Stop and Error
mvse
000
Addition
Auto/Manual Select
amad
Addition
Manual Output Method
mant
Manual MV Initial Value mani
rt
000
RT
HS Alarm Use
hsu
HS Alarm Latch
hsl
HS Alarm Hysteresis
hsh
LBA Detection Time
lba
LBA Level
lbal
LBA Band
lbab
E5@C Digital Temperature Controllers User's Manual (H174)
Setting (monitor) value
1 to 3
OFF, ON
OFF, ON
OFF, ON
OFF, ON
1 to 30
OFF, ON
0 to 999 (0: ON delay disabled)
0 to 999 (0: ON delay disabled)
0 to 999 (0: ON delay disabled)
0 to 999 (0: ON delay disabled)
0 to 999 (0: OFF delay disabled)
0 to 999 (0: OFF delay disabled)
0 to 999 (0: OFF delay disabled)
0 to 999 (0: OFF delay disabled)
OFF, ON
OFF, ON
HOLD or INIT
−5.0 to 105.0 for standard control
−105.0 to 105.0 for heating/cooling control
OFF, ON
OFF, ON
OFF, ON
0.1 to 50.0
0 to 9999 (0: LBA function disabled)
Temperature input: 0.1 to 999.9
Analog input: 0.01 to 99.99
Temperature input: 0.0 to 999.9
Analog input: 0.00 to 99.99
Display
off, on
off, on
off, on
off, on
off, on
off, on
off, on
hold, init
*1
*1
off, on
off, on
off, on
A Appendices
Default Unit
3 None
OFF None
OFF None
OFF None
OFF None
3 Second
ON None
0 Second
0 Second
0 Second
0 Second
0 Second
0 Second
0 Second
0 Second
OFF None
Standard None
Model:OFF
Position-pro
portional
Model: ON
HOLD None
0.0 %
OFF None
ON None
OFF None
0.1 A
0 Second
°C or °F
8.0
10.00 %FS
3.0 °C or °F
0.20 %FS
A - 33
