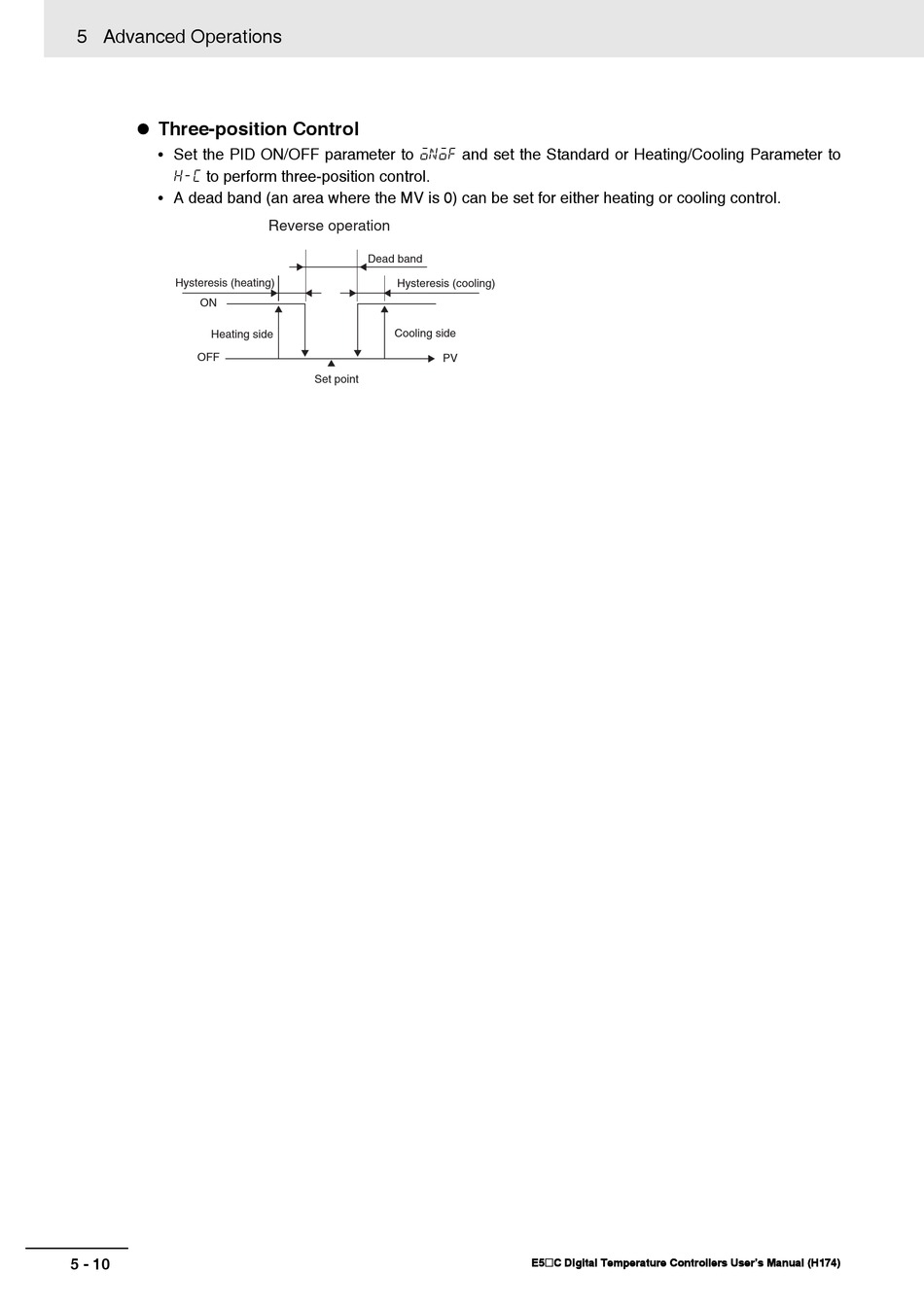

5 Advanced Operations
 Three-position Control
• Set the PID ON/OFF parameter to onof and set the Standard or Heating/Cooling Parameter to
h-c to perform three-position control.
• A dead band (an area where the MV is 0) can be set for either heating or cooling control.
Reverse operation
Dead band
Hysteresis (heating)
Hysteresis (cooling)
ON
Cooling side
Heating side
OFF
PV
Set point
