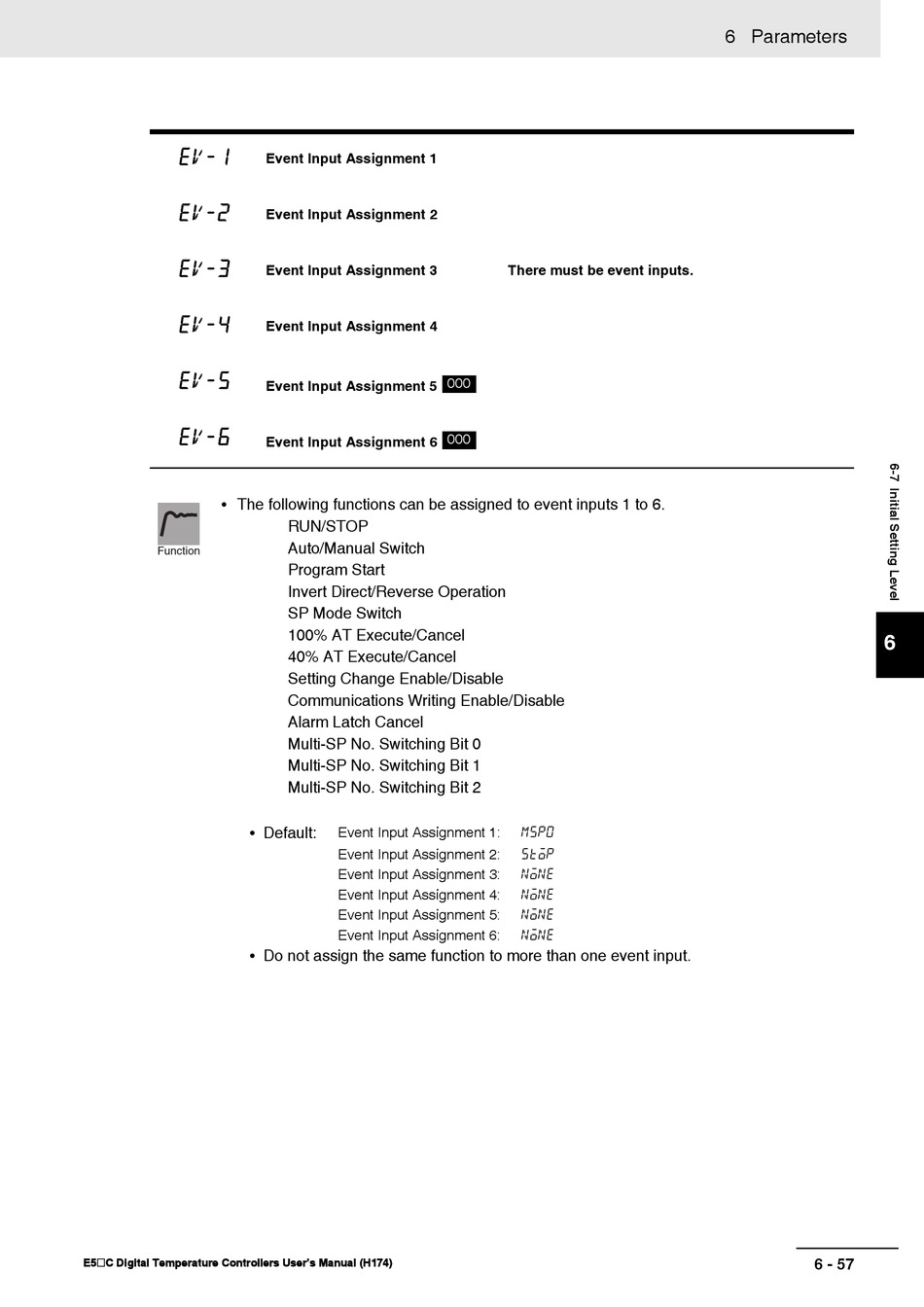

Omron E5*C Series User Manual page 327

eV-1
eV-2
eV-3
eV-4
eV-5
eV-6
• The following functions can be assigned to event inputs 1 to 6.
Function
• Default:
• Do not assign the same function to more than one event input.
E5@C Digital Temperature Controllers User's Manual (H174)
Event Input Assignment 1
Event Input Assignment 2
Event Input Assignment 3
Event Input Assignment 4
Event Input Assignment 5
Event Input Assignment 6
RUN/STOP
Auto/Manual Switch
Program Start
Invert Direct/Reverse Operation
SP Mode Switch
100% AT Execute/Cancel
40% AT Execute/Cancel
Setting Change Enable/Disable
Communications Writing Enable/Disable
Alarm Latch Cancel
Multi-SP No. Switching Bit 0
Multi-SP No. Switching Bit 1
Multi-SP No. Switching Bit 2
Event Input Assignment 1:
Event Input Assignment 2:
Event Input Assignment 3:
Event Input Assignment 4:
Event Input Assignment 5:
Event Input Assignment 6:
There must be event inputs.
000
000
msp0
stop
none
none
none
none
6 Parameters
6
6 - 57
