 Checking Connections
• After the insertion, pull gently on the wire to make sure that it will not come off and the wire is
securely fastened to the terminal block.
• If you use a ferrule with a conductor length of 10 mm, part of the conductor may be visible after
the ferrule is inserted into the terminal block, but the product insulation distance will still be
satisfied.

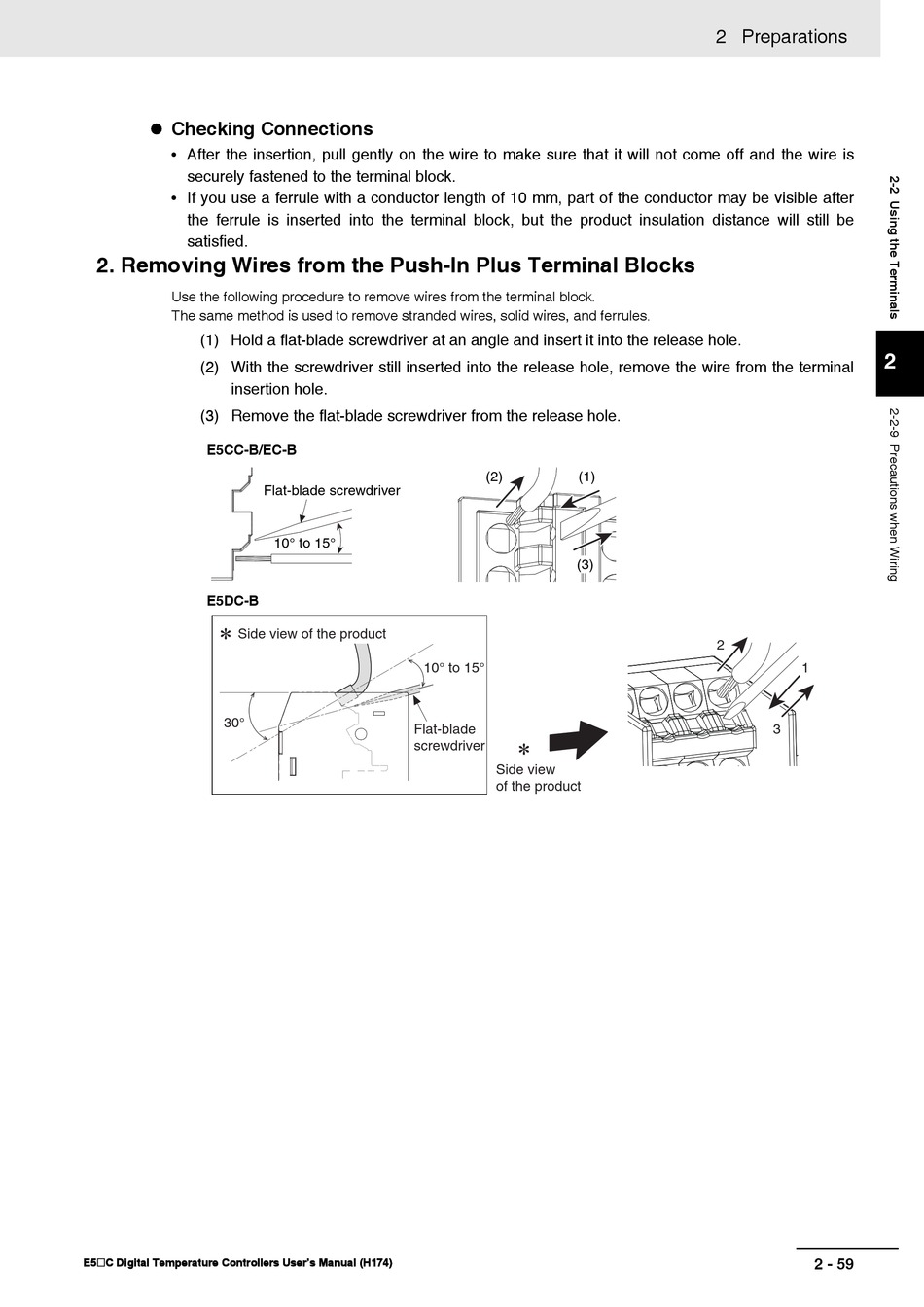

2. Removing Wires from the Push-In Plus Terminal Blocks
Use the following procedure to remove wires from the terminal block.
The same method is used to remove stranded wires, solid wires, and ferrules.
(1) Hold a flat-blade screwdriver at an angle and insert it into the release hole.
(2) With the screwdriver still inserted into the release hole, remove the wire from the terminal
insertion hole.
(3) Remove the flat-blade screwdriver from the release hole.
E5CC-B/EC-B
E5DC-B
∗
Side view of the product
30°
E5@C Digital Temperature Controllers User's Manual (H174)
Flat-blade screwdriver
10° to 15°
10° to 15°
Flat-blade
screwdriver
(2) (1)
(3)
∗
Side view
of the product
