2 Preparations
2-2-3

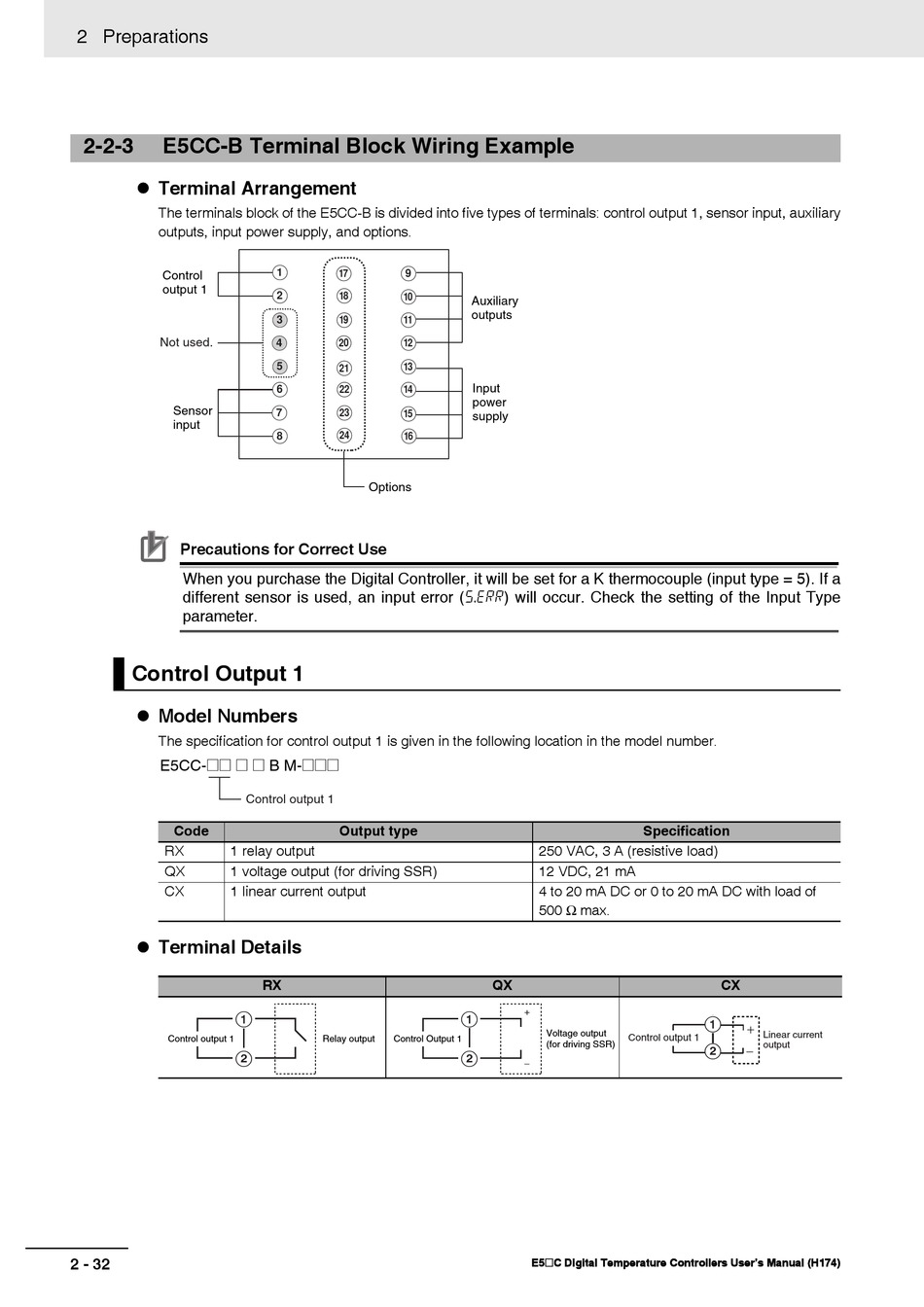

E5CC-B Terminal Block Wiring Example

 Terminal Arrangement
The terminals block of the E5CC-B is divided into five types of terminals: control output 1, sensor input, auxiliary
outputs, input power supply, and options.
Control
output 1
Not used.
Sensor
input
Precautions for Correct Use
When you purchase the Digital Controller, it will be set for a K thermocouple (input type = 5). If a
different sensor is used, an input error (s.err) will occur. Check the setting of the Input Type
parameter.
Control Output 1
 Model Numbers
The specification for control output 1 is given in the following location in the model number.
E5CC-@@ @ @ B M-@@@
Code
RX 1 relay output
QX 1 voltage output (for driving SSR)
CX 1 linear current output
 Terminal Details
A
Control output 1
B
2 - 32
1
17 9
2 18
10
3 19 11
4 12
20
5 13
21
6 22 14
7 23
15
24
8 16
Options
Control output 1
Output type
RX
Relay output Control Output 1
Auxiliary
outputs
Input
power
supply
250 VAC, 3 A (resistive load)
12 VDC, 21 mA
4 to 20 mA DC or 0 to 20 mA DC with load of
500 Ω max.
QX
A +
Voltage output
Control output 1
(for driving SSR)
B
−
E5@C Digital Temperature Controllers User's Manual (H174)
Specification
CX
A
+
Linear current
B
output
−
