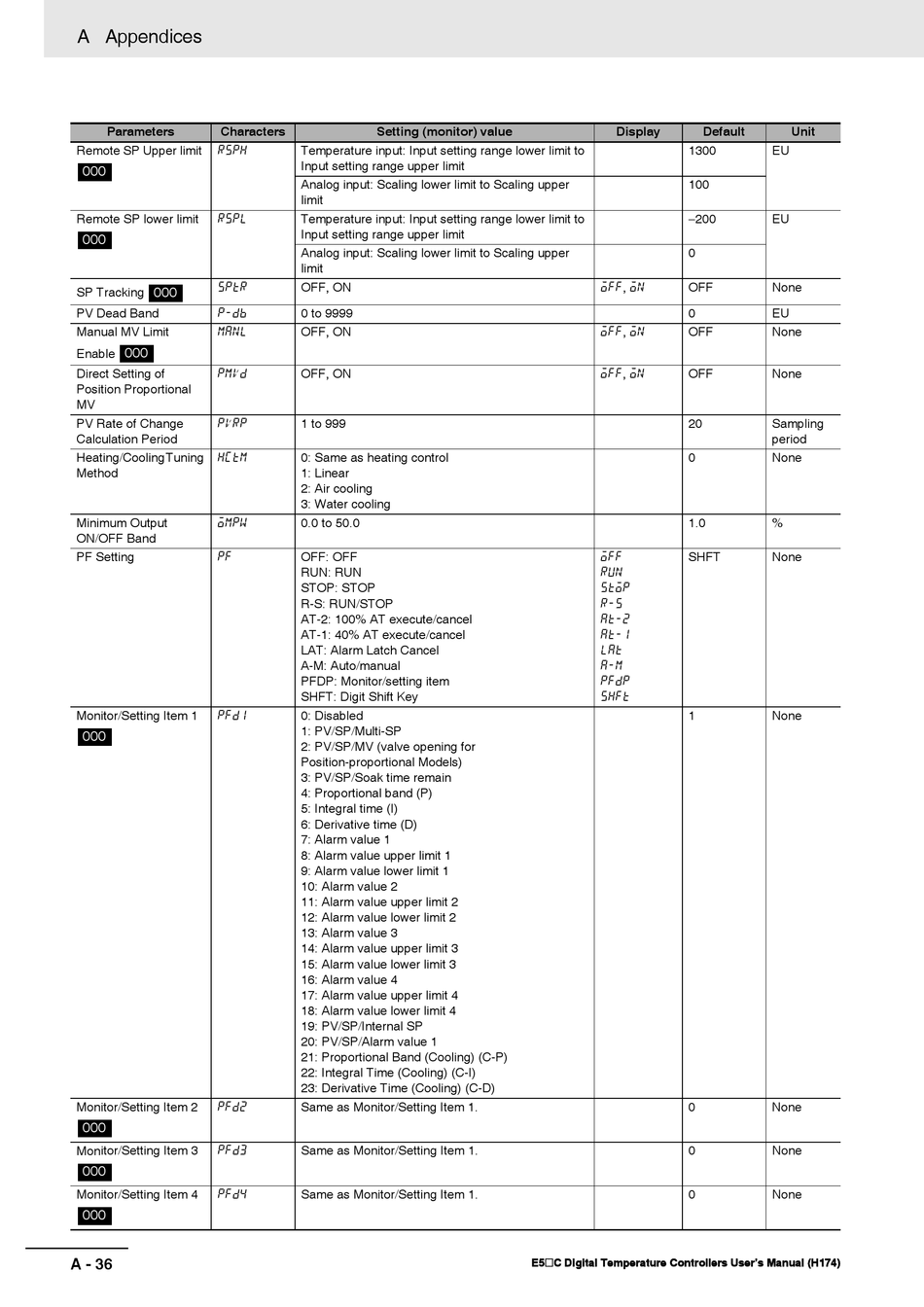

Omron E5*C Series User Manual page 422

A Appendices
Parameters Characters
Remote SP Upper limit
rsph
000
Remote SP lower limit
rspl
000
sptr
000
SP Tracking
PV Dead Band
p-db
Manual MV Limit
manl
000
Enable
Direct Setting of
pmvd
Position Proportional
MV
PV Rate of Change
pvrp
Calculation Period
Heating/Cooling Tuning
hctm
Method
Minimum Output
ompw
ON/OFF Band
PF Setting
pf
Monitor/Setting Item 1
pfd1
000
Monitor/Setting Item 2
pfd2
000
Monitor/Setting Item 3
pfd3
000
Monitor/Setting Item 4
pfd4
000
A - 36
Setting (monitor) value
Temperature input: Input setting range lower limit to
Input setting range upper limit
Analog input: Scaling lower limit to Scaling upper
limit
Temperature input: Input setting range lower limit to
Input setting range upper limit
Analog input: Scaling lower limit to Scaling upper
limit
OFF, ON
0 to 9999
OFF, ON
OFF, ON
1 to 999
0: Same as heating control
1: Linear
2: Air cooling
3: Water cooling
0.0 to 50.0
OFF: OFF
RUN: RUN
STOP: STOP
R-S: RUN/STOP
AT-2: 100% AT execute/cancel
AT-1: 40% AT execute/cancel
LAT: Alarm Latch Cancel
A-M: Auto/manual
PFDP: Monitor/setting item
SHFT: Digit Shift Key
0: Disabled
1: PV/SP/Multi-SP
2: PV/SP/MV (valve opening for
Position-proportional Models)
3: PV/SP/Soak time remain
4: Proportional band (P)
5: Integral time (I)
6: Derivative time (D)
7: Alarm value 1
8: Alarm value upper limit 1
9: Alarm value lower limit 1
10: Alarm value 2
11: Alarm value upper limit 2
12: Alarm value lower limit 2
13: Alarm value 3
14: Alarm value upper limit 3
15: Alarm value lower limit 3
16: Alarm value 4
17: Alarm value upper limit 4
18: Alarm value lower limit 4
19: PV/SP/Internal SP
20: PV/SP/Alarm value 1
21: Proportional Band (Cooling) (C-P)
22: Integral Time (Cooling) (C-I)
23: Derivative Time (Cooling) (C-D)
Same as Monitor/Setting Item 1.
Same as Monitor/Setting Item 1.
Same as Monitor/Setting Item 1.
Display Default
1300
100
−200
0
OFF
off, on
0
OFF
off, on
OFF
off, on
20
0
1.0
SHFT
off
run
stop
r-s
at-2
at-1
lat
a-m
pfdp
shft
1
0
0
0
