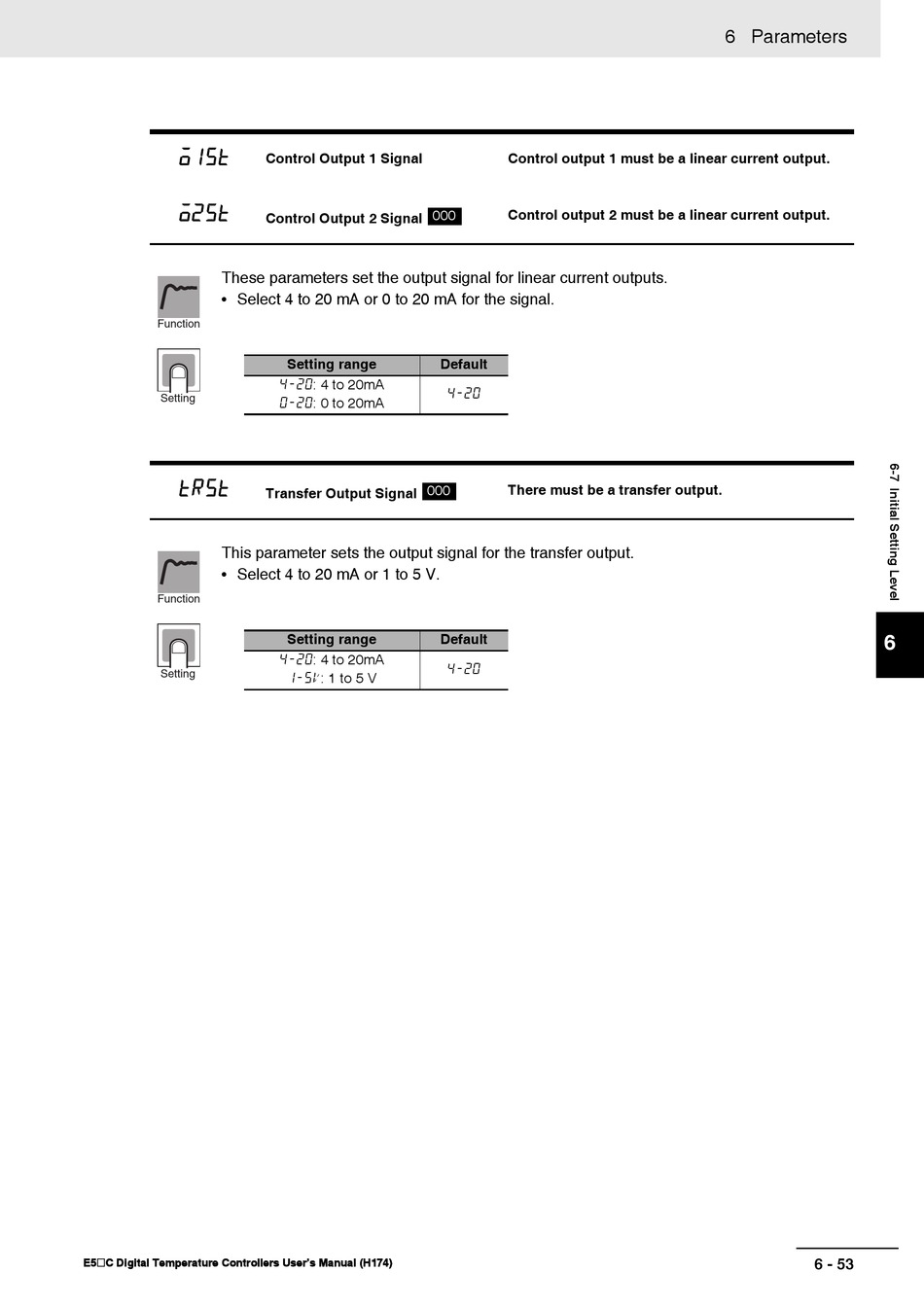

These parameters set the output signal for linear current outputs.
• Select 4 to 20 mA or 0 to 20 mA for the signal.
Function
Setting
trst
This parameter sets the output signal for the transfer output.
• Select 4 to 20 mA or 1 to 5 V.
Function
Setting
E5@C Digital Temperature Controllers User's Manual (H174)
Control Output 1 Signal
000
Control Output 2 Signal
Setting range Default
4-20: 4 to 20mA
0-20: 0 to 20mA
000
Transfer Output Signal
Setting range Default
4-20: 4 to 20mA
1-5v: 1 to 5 V
Control output 1 must be a linear current output.
Control output 2 must be a linear current output.
4-20
There must be a transfer output.
4-20
