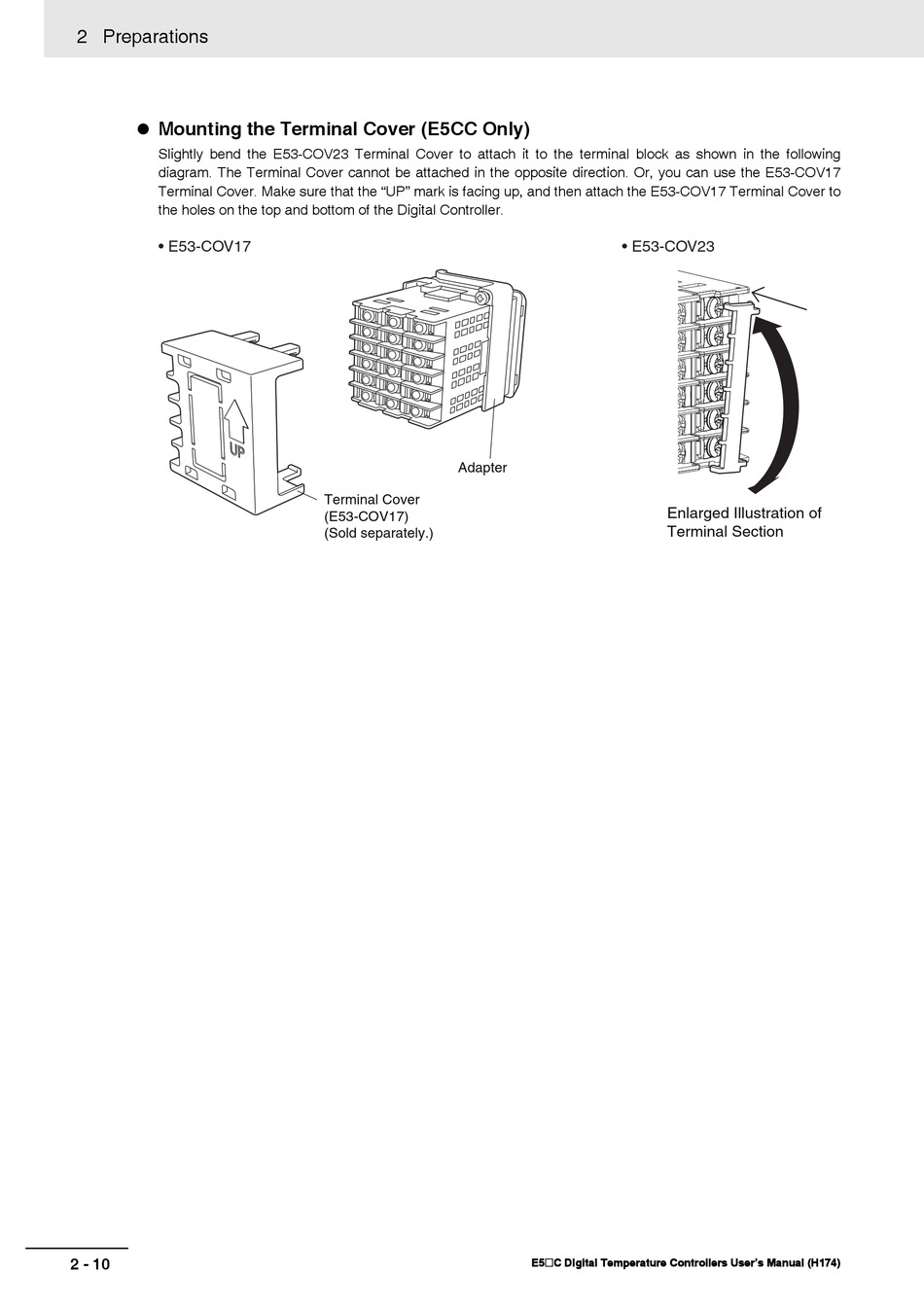

Omron E5*C Series User Manual page 48

2 Preparations
 Mounting the Terminal Cover (E5CC Only)
Slightly bend the E53-COV23 Terminal Cover to attach it to the terminal block as shown in the following
diagram. The Terminal Cover cannot be attached in the opposite direction. Or, you can use the E53-COV17
Terminal Cover. Make sure that the "UP" mark is facing up, and then attach the E53-COV17 Terminal Cover to
the holes on the top and bottom of the Digital Controller.
• E53-COV17
2 - 10
Adapter
Terminal Cover
(E53-COV17)
(Sold separately.)
• E53-COV23
Enlarged Illustration of
Terminal Section
