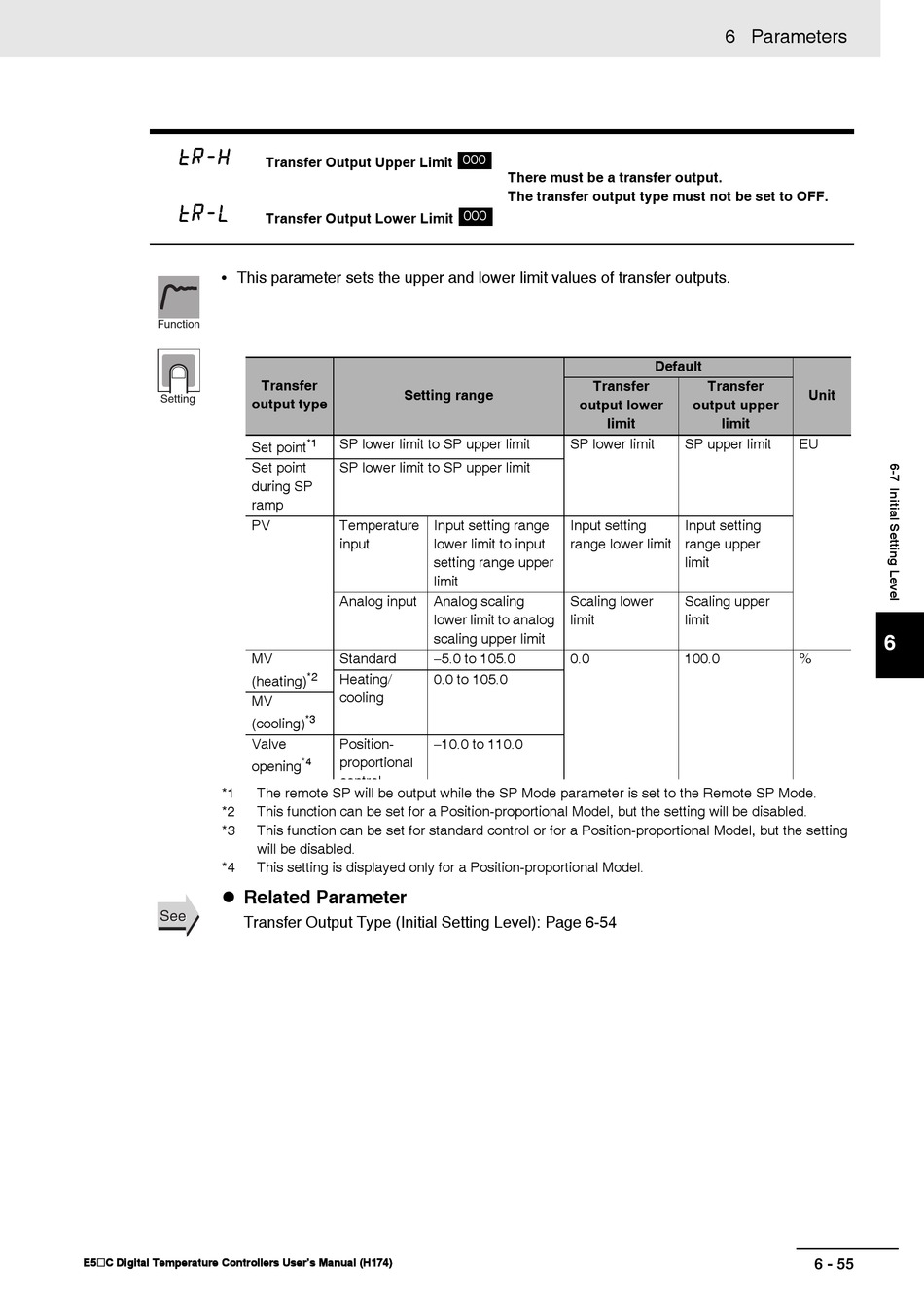

Omron E5*C Series User Manual page 325

tr-h
tr-l
• This parameter sets the upper and lower limit values of transfer outputs.
Function
Setting
output type
Set point
Set point
during SP
ramp
PV
MV
(heating)
MV
(cooling)
Valve
opening
*1 The remote SP will be output while the SP Mode parameter is set to the Remote SP Mode.
*2 This function can be set for a Position-proportional Model, but the setting will be disabled.
*3 This function can be set for standard control or for a Position-proportional Model, but the setting
will be disabled.
*4 This setting is displayed only for a Position-proportional Model.
 Related Parameter
See
See
Transfer Output Type (Initial Setting Level): Page 6-54
E5@C Digital Temperature Controllers User's Manual (H174)
Transfer Output Upper Limit
Transfer Output Lower Limit
Transfer
Setting range
*1 SP lower limit to SP upper limit
SP lower limit to SP upper limit
Temperature Input setting range
input lower limit to input
setting range upper
limit
Analog input Analog scaling
lower limit to analog
scaling upper limit
−5.0 to 105.0
Standard
*2
Heating/ 0.0 to 105.0
cooling
*3
Position- −10.0 to 110.0
proportional
*4
control
000
There must be a transfer output.
The transfer output type must not be set to OFF.
000
Transfer
output lower
limit
SP lower limit
Input setting
range lower limit
Scaling lower
limit
0.0
6 Parameters
Default
Transfer
Unit
output upper
limit
SP upper limit EU
Input setting
range upper
limit
Scaling upper
limit
100.0 %
6 - 55
