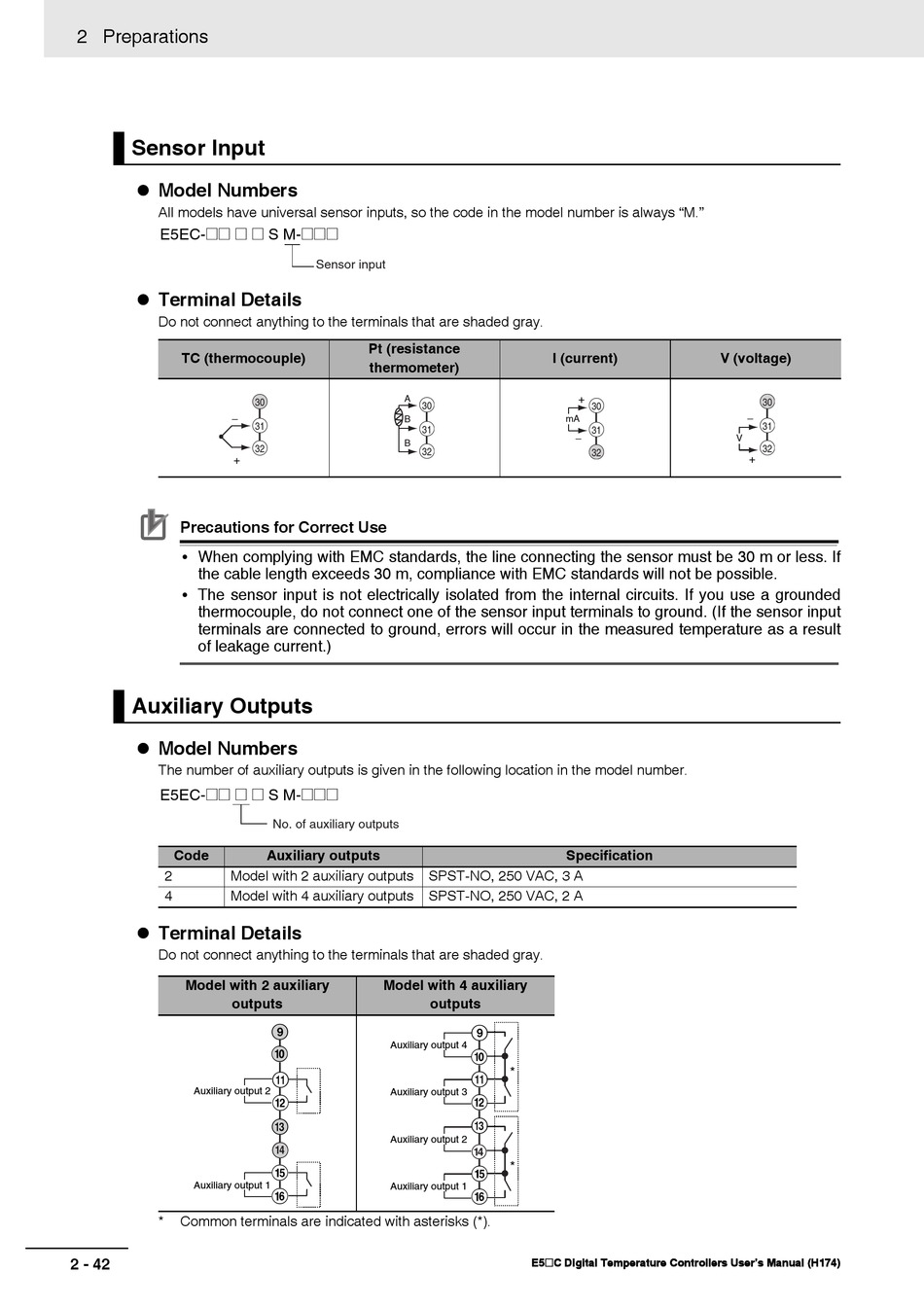

Omron E5*C Series User Manual page 80

2 Preparations
Sensor Input
 Model Numbers
All models have universal sensor inputs, so the code in the model number is always "M."
E5EC-@@ @ @ S M-@@@
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
TC (thermocouple)
−
+
Precautions for Correct Use
• When complying with EMC standards, the line connecting the sensor must be 30 m or less. If
the cable length exceeds 30 m, compliance with EMC standards will not be possible.
• The sensor input is not electrically isolated from the internal circuits. If you use a grounded
thermocouple, do not connect one of the sensor input terminals to ground. (If the sensor input
terminals are connected to ground, errors will occur in the measured temperature as a result
of leakage current.)
Auxiliary Outputs
 Model Numbers
The number of auxiliary outputs is given in the following location in the model number.
E5EC-@@ @ @ S M-@@@
Code
2 Model with 2 auxiliary outputs
4 Model with 4 auxiliary outputs
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
Model with 2 auxiliary
outputs
Auxiliary output 2
Auxiliary output 1
* Common terminals are indicated with asterisks (*).
2 - 42
Sensor input
Pt (resistance
thermometer)
A
30
30
B
31
31
B
32
32
No. of auxiliary outputs
Auxiliary outputs
SPST-NO, 250 VAC, 3 A
SPST-NO, 250 VAC, 2 A
Model with 4 auxiliary
I
Auxiliary output 4
J
K
Auxiliary output 3
L
M
Auxiliary output 2
14
O
Auxiliary output 1
P
I (current)
+
30
mA
31
−
32
Specification
outputs
I
J
*
K
L
M
14
*
O
P
E5@C Digital Temperature Controllers User's Manual (H174)
V (voltage)
30
−
31
V
32
+
