2-2-2

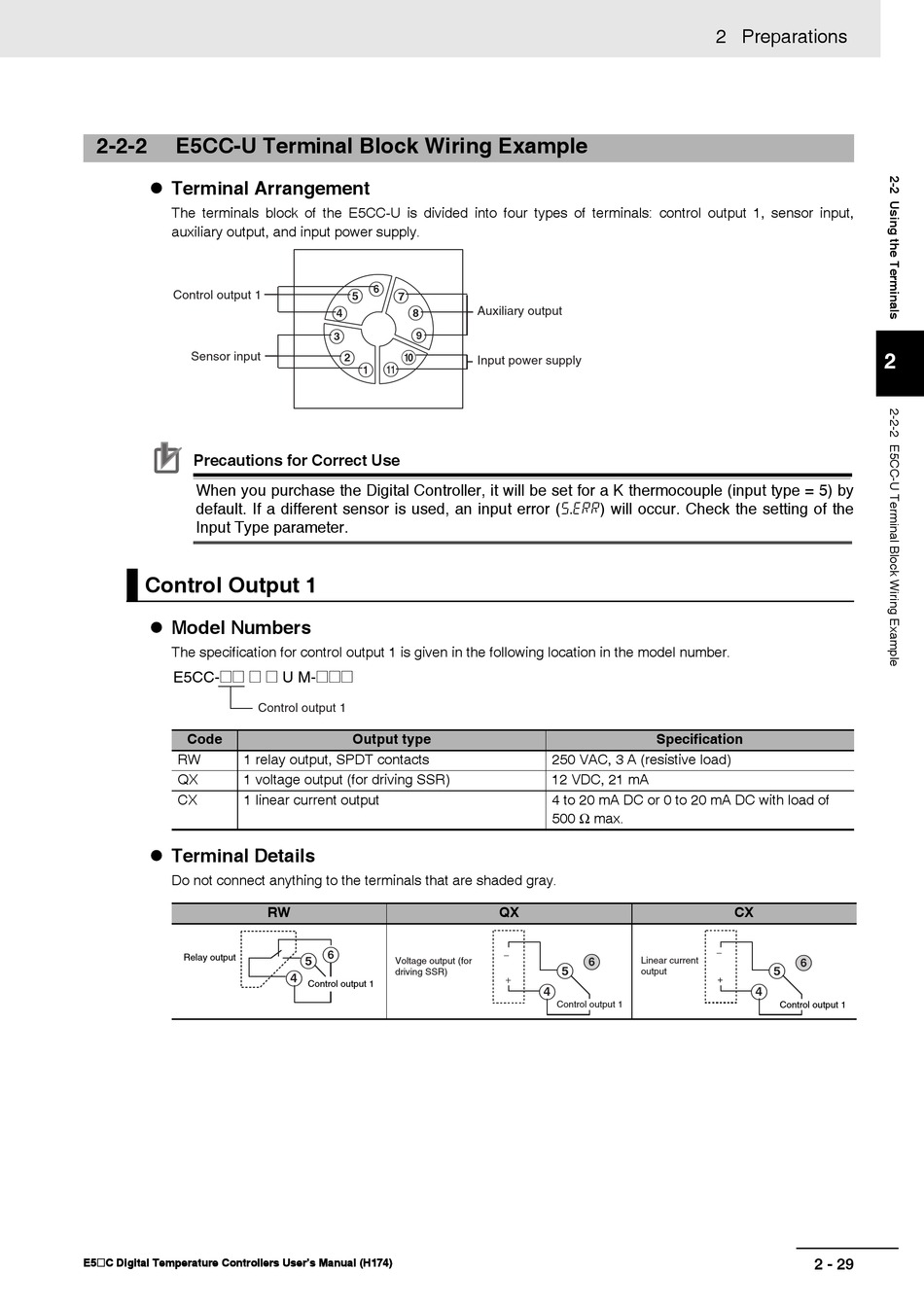

E5CC-U Terminal Block Wiring Example

 Terminal Arrangement
The terminals block of the E5CC-U is divided into four types of terminals: control output 1, sensor input,
auxiliary output, and input power supply.
Control output 1
Sensor input
Precautions for Correct Use
When you purchase the Digital Controller, it will be set for a K thermocouple (input type = 5) by
default. If a different sensor is used, an input error (s.err) will occur. Check the setting of the
Input Type parameter.
Control Output 1
 Model Numbers
The specification for control output 1 is given in the following location in the model number.
E5CC-@@ @ @ U M-@@@
Code
RW 1 relay output, SPDT contacts
QX 1 voltage output (for driving SSR)
CX 1 linear current output
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
Relay output
E5@C Digital Temperature Controllers User's Manual (H174)
F
E
G
H
D
I
C
J
B
K
A
Control output 1
Output type
RW
F
E
Voltage output (for
D
driving SSR)
Control output 1
Auxiliary output
Input power supply
250 VAC, 3 A (resistive load)
12 VDC, 21 mA
4 to 20 mA DC or 0 to 20 mA DC with load of
500 Ω max.
QX
−
F
Linear current
E
output
+
D
Control output 1
2 Preparations
Specification
CX
−
F
E
+
D
Control output 1
2 - 29
2
