Using the RMC Switch Pack

The RMC operating mode is controlled by a switch pack on the server feature
module located in the fan area between the system card care and the front of
the system. Use the switches to enable or disable certain RMC functions, if
desired.
2
1
PK1216D

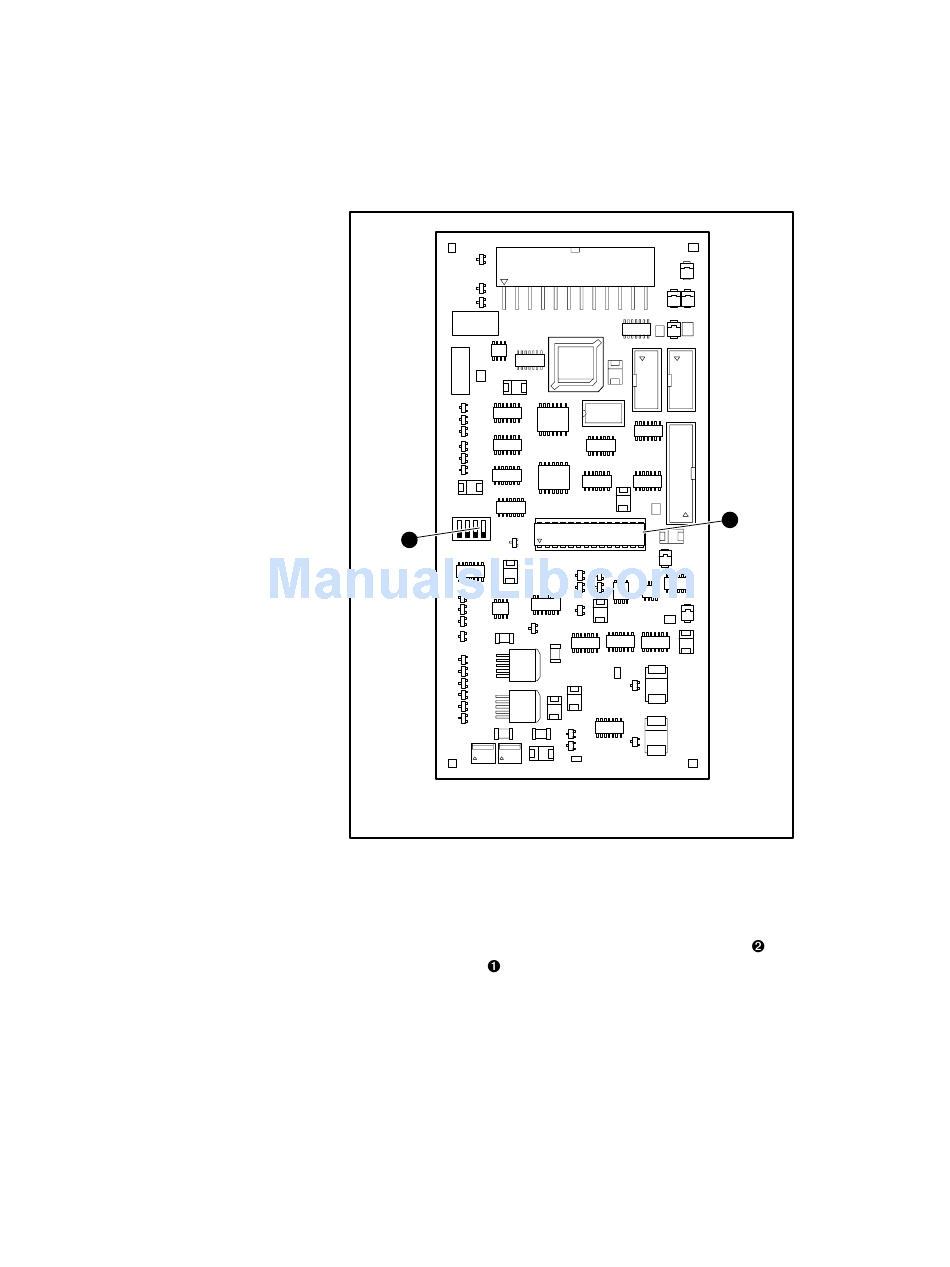

Figure 10-4. Location of RMC Switch Pack and PIC on
System Features Module (SFM)
RMC is implemented by the PIC16C73 Microcontroller . The SFM switch
pack is shown in at , and again in Figure 10-5 below. The default position
