Reconfiguring the System 5-3

Memory Configuration

The system supports 3.3 volt, dual-in-line memory modules (DIMM) on the
motherboard, providing from a minimum system requirement of 128 MB to a
maximum of 4 GB.
There are 16-200 pin buffered DIMM slots that are organized with four slots
in each of the four memory banks (banks 0-3). Banks must be populated in
order and starting with bank 0. Bank 0 must always be populated. Figure 5-2
shows the organization of memory banks. Refer to Table 5-1 to see the
memory bank and connector numbering.
9
2 4 6 8 1 3 5
1 3 5 7 10 2 4 6
CAT0029

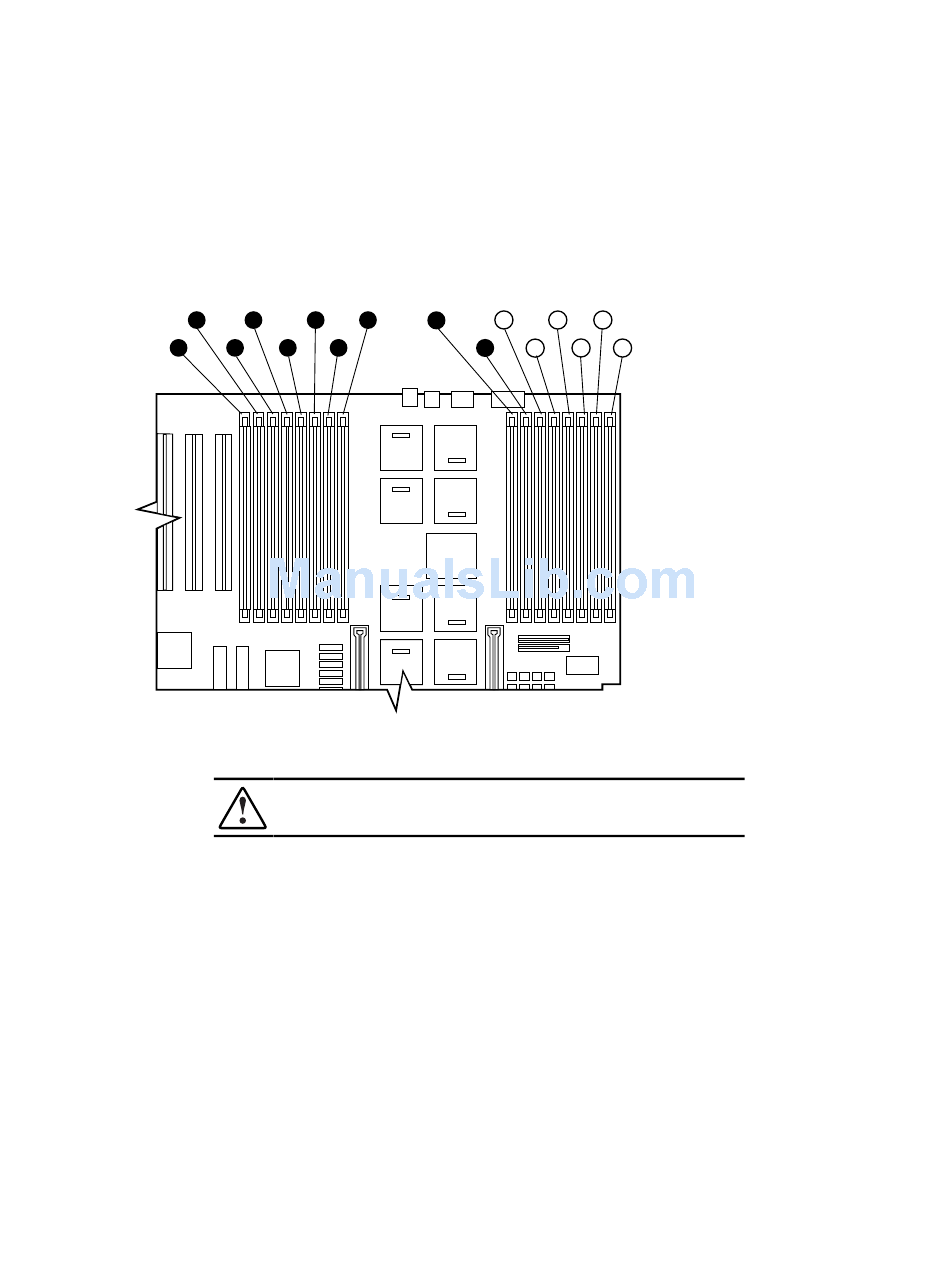

Figure 5-2. Memory Banks
WARNING: Before installing a memory module, turn off all power to the system.
