Figure 7-9. Removing The Drive Carrier - Compaq AlphaServer DS20E Reference Manual

Removing
1. To remove the carrier, press the portwine colored rubber button in to
release the handle.
2. Pull the handle forward to release the SCSI connection and then pull the
drive out of the cage.

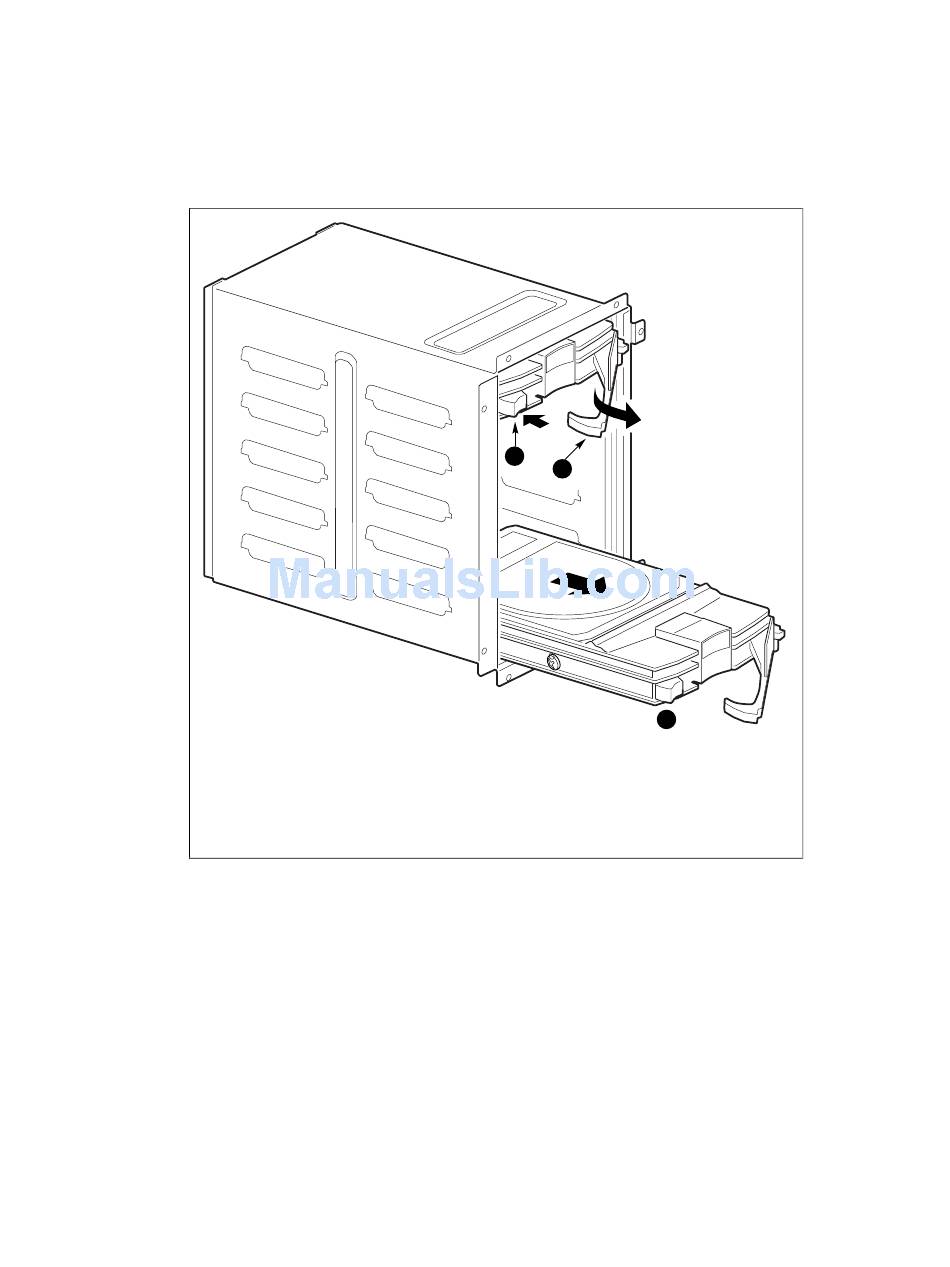

Figure 7-9. Removing the Drive Carrier
