3-14 DS20E Reference Guide
To prepare the system for installation, attach the mounting brackets as shown below.
2
1
3
3
4
CAT0152

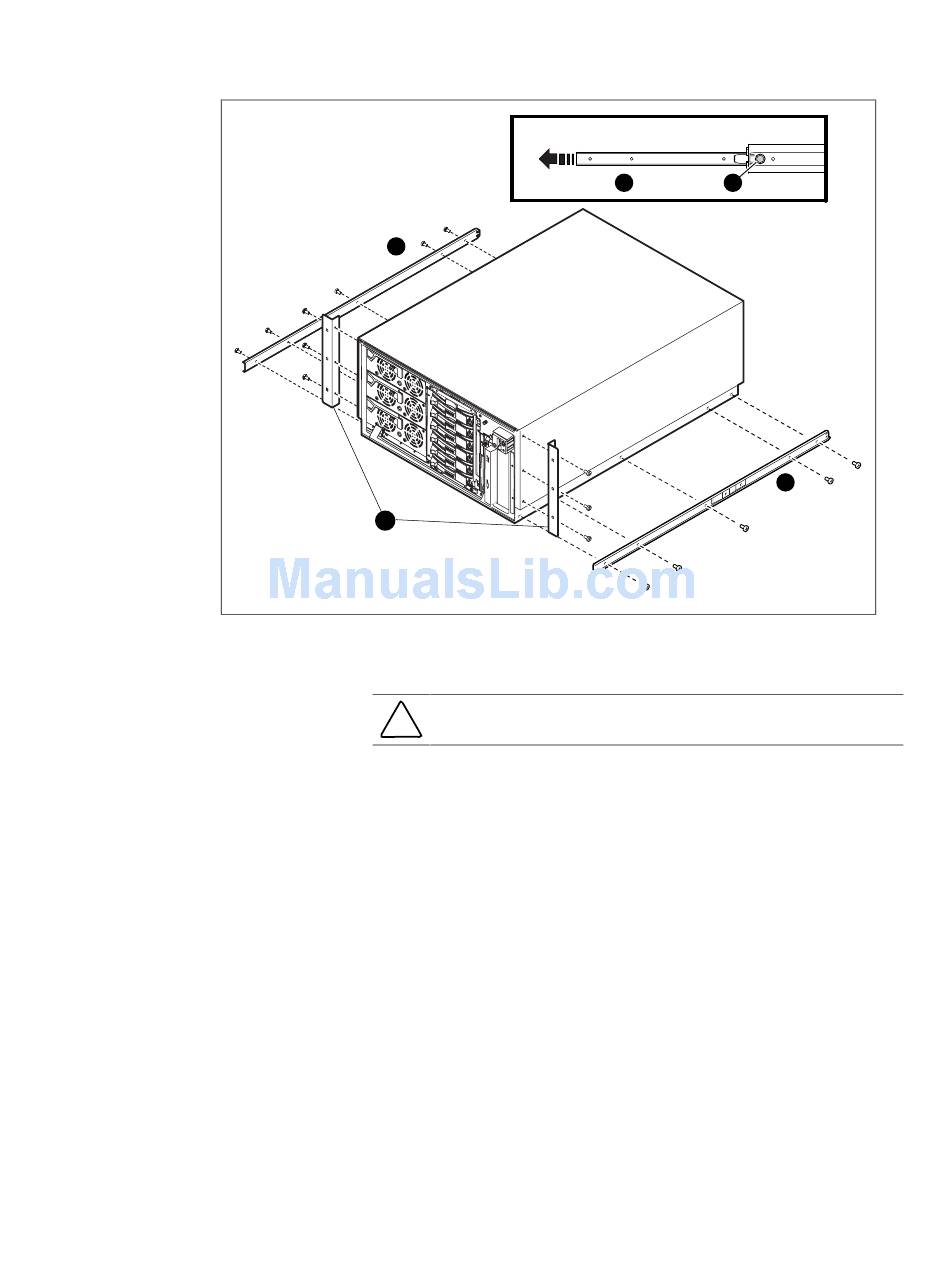

Figure 3-10. Attaching Mounting Brackets and Slides
CAUTION: The slides are lightly greased. Handle them carefully to avoid soiling
your clothing.
Compaq Confidential – Need to Know Required
Writer: Robert Young Project: Compaq AlphaServer DS20E System Comments:
Part Number: FR-K8F6W-UA .A01 File Name: d-ch3 Installing a Rack System.doc Last Saved On: 10/4/99 1:25 PM
