Drive Carriers

Part Number: ER-K8F6W-UA .A01 File Name: h-ch7 Using the Storage Subsystem.doc Last Saved On: 10/4/99 11:13 AM
There are two drive carrier types, one for the 1.0-inch drive and the other for
the 1.6-inch drive. Drives will come pre-installed in the carrier. This chapter
contains information for removing drives from the carrier and LED status
information.
Figure 7-5 displays both drive carrier types.

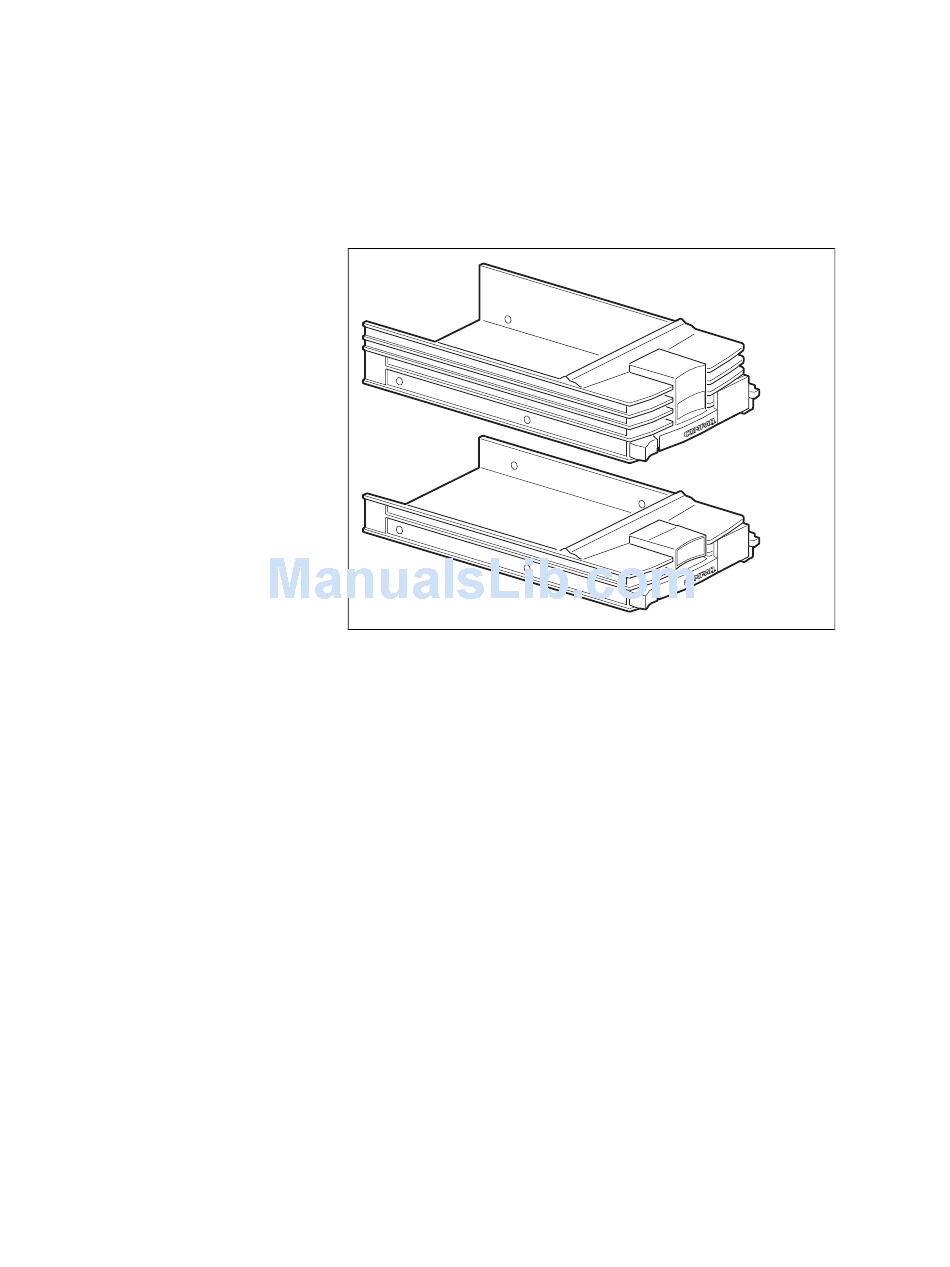

Figure 7-5. 1.0 and 1.6-Inch Drive Carriers
Compaq Confidential – Need to Know Required
Writer: Robert Young Project: Compaq AlphaServer DS20E System Comments:
1.6" Drive
Carrier
1" Drive
Carrier
DVA00031
