Removing and Installing Memory DIMMs

There are sixteen slots for memory DIMMs with four slots per bank. A
memory bank must be populated with four DIMMs of the same size. Always
populate starting with bank 0 through bank 3. All four DIMMs must be
populated for each bank. See Figure 8-5 for memory connector layout. Figure
8-6 shows how to remove a memory DIMM and Figure 8-7 shows how to
install a memory DIMM.
2 4 6 8 9 1 3
5
1 3 5 7 10 2 4 6
CAT0029

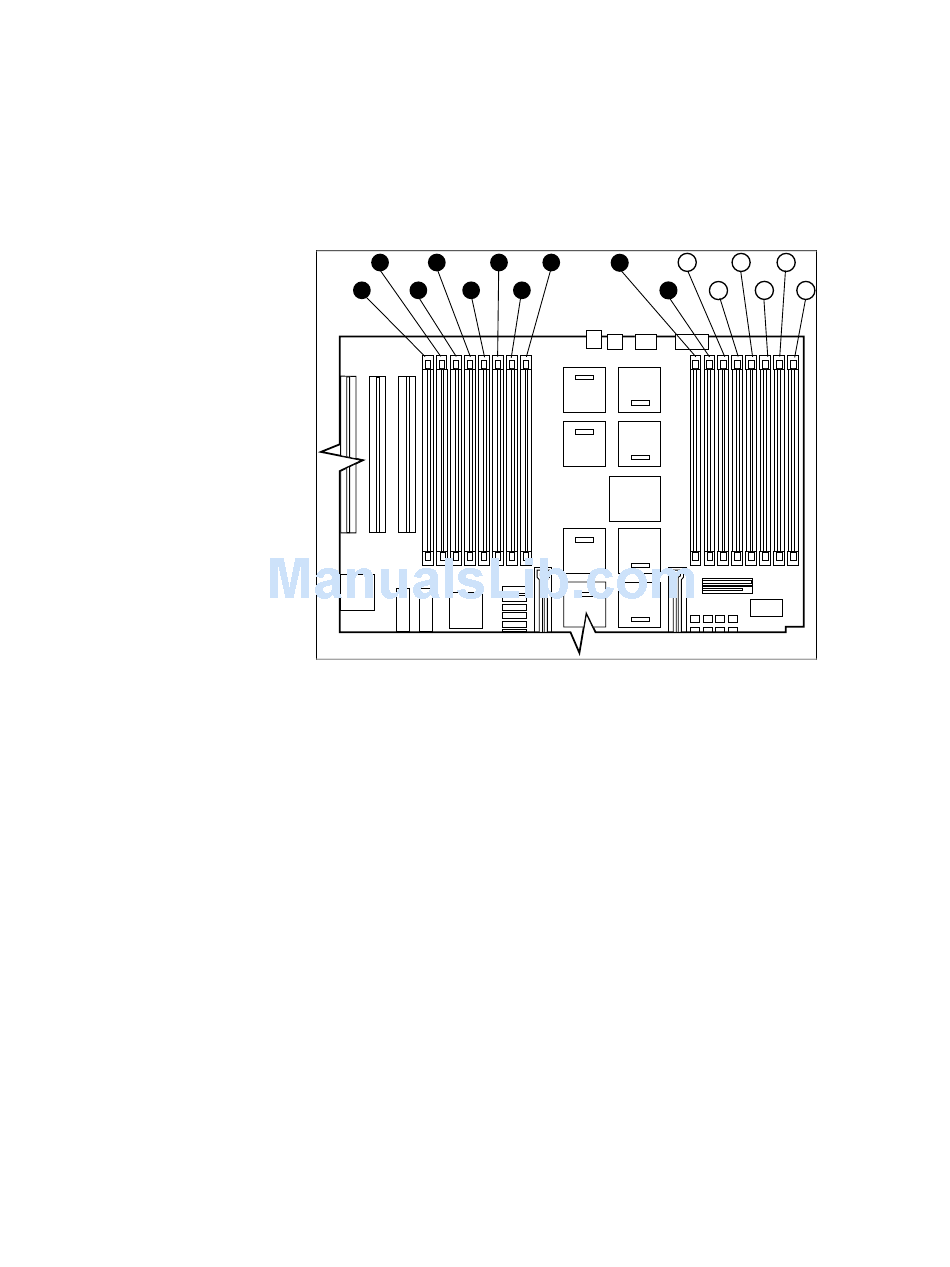

Figure 8-5. Memory Connector Layout
NOTE: A maximum of 4 GB of memory may be used with the system.
