Connecting the Cables

Part Number: FR-K8F6W-UA .A01 File Name: d-ch3 Installing a Rack System.doc Last Saved On: 10/4/99 1:25 PM
See Figure 3-8 for routing rackmount cables.

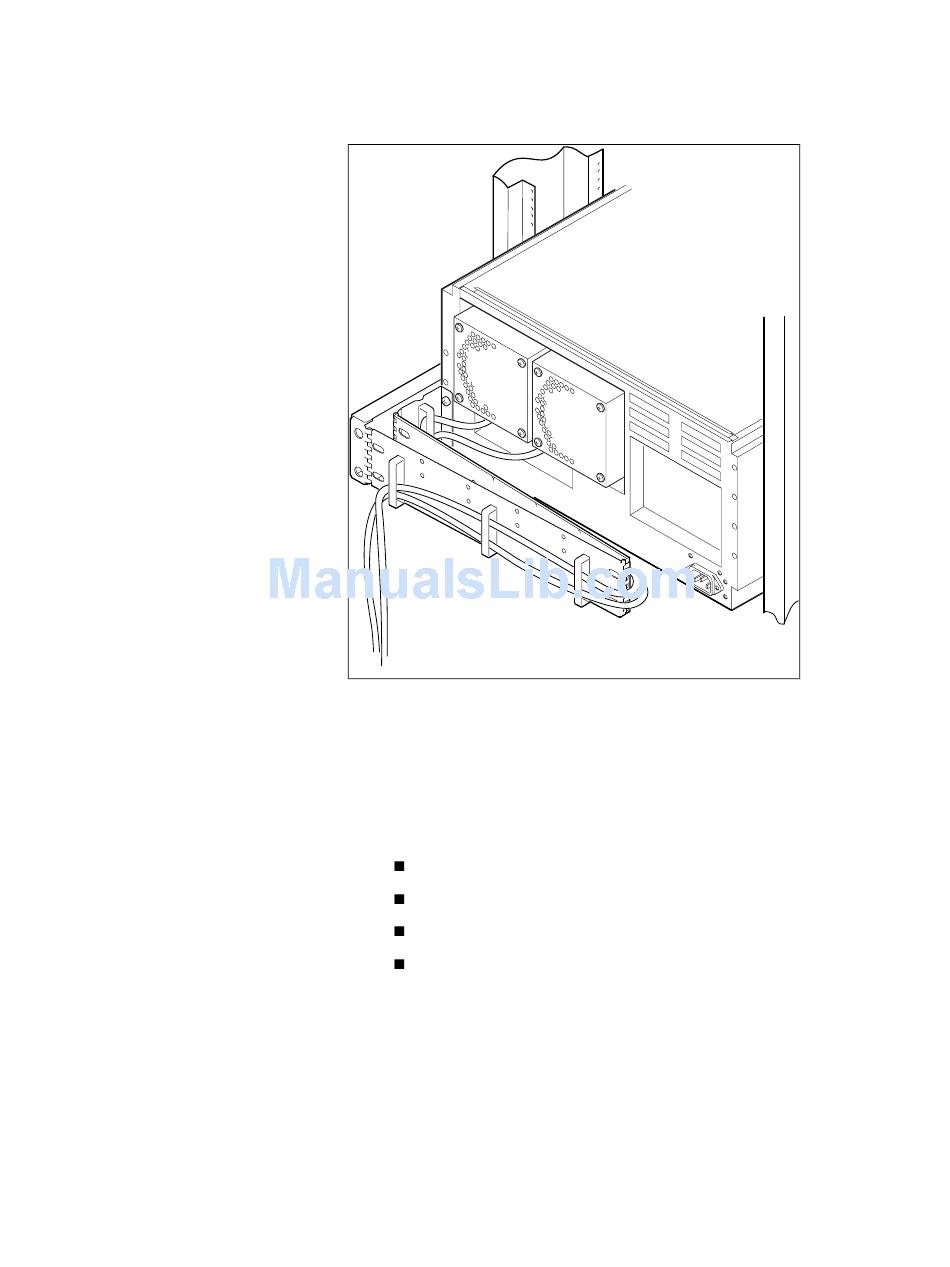

Figure 3-8. Cable Loop at the Rear of the System
Make the rack rear connections as follows:
1. Attach a rear cable first to the rack management bracket with a tie-wrap
making sure that a segment of at least 30 inches of cable is available for
extension so that the rackmount system can be pulled out of the rack.
2. Plug in the following connectors:
Keyboard
Mouse
Video
Enet
