7-2 DS20E Reference Guide
External SCSI expansion
Storage Subsystem Overview

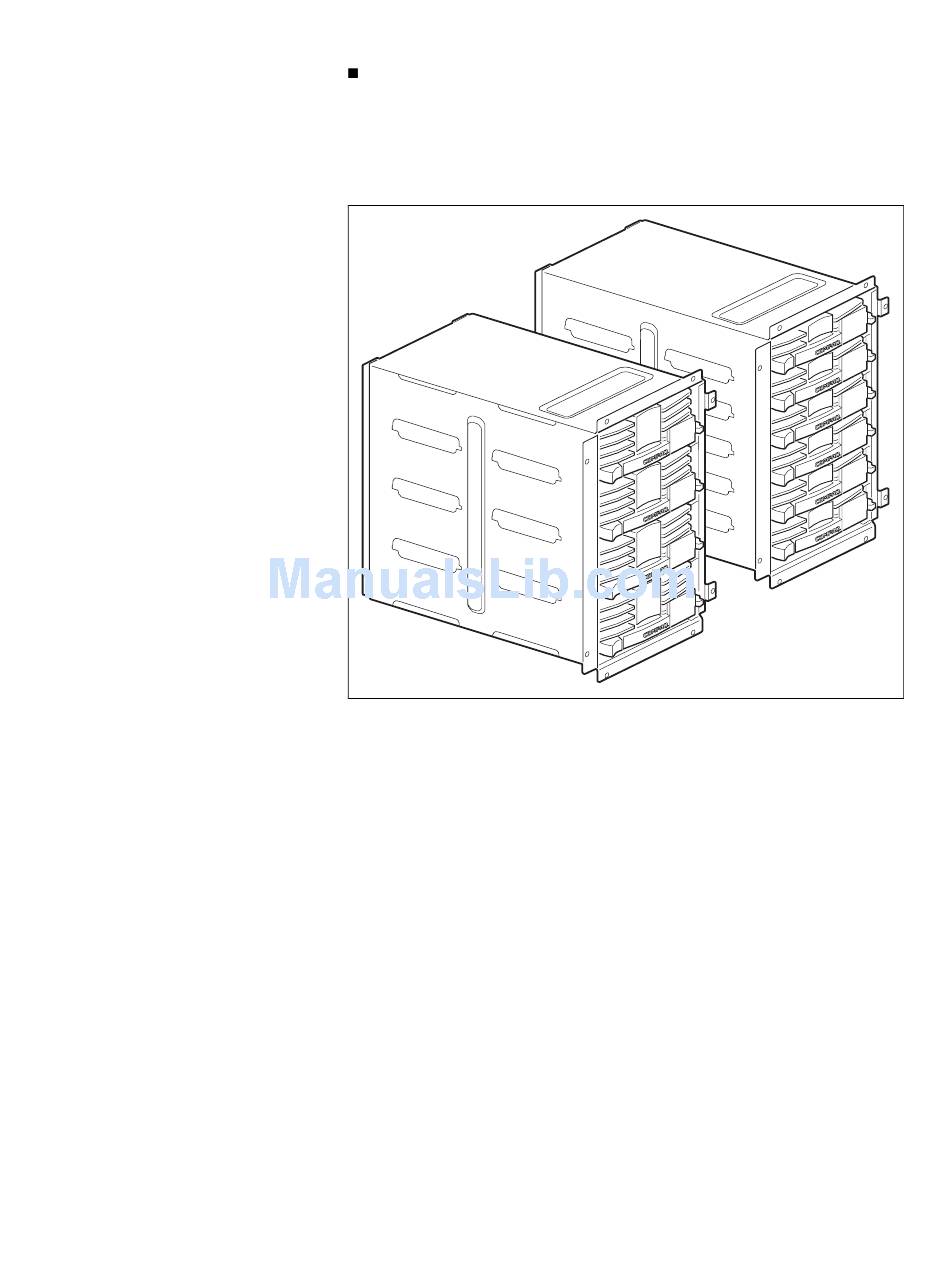

Figure 7-1 shows fully populated 4- and 6-slot storage subsystems.
DVA00047
Figure 7-1. 4-Slot and 6-Slot Storage Subsystems
Compaq Confidential – Need to Know Required
Writer: Robert Young Project: Compaq AlphaServer DS20E System Comments:
Part Number: ER-K8F6W-UA .A01 File Name: h-ch7 Using the Storage Subsystem.doc Last Saved On: 10/4/99 11:13 AM
