Removing the Drive Carriers
The following is the procedure for removing a drive from the carrier (as shown
in Figure 7-6).
1. Turn the four screws counter clockwise.
2. Lift the drive out of the carrier.
NOTE: To install a drive, reverse the procedure.

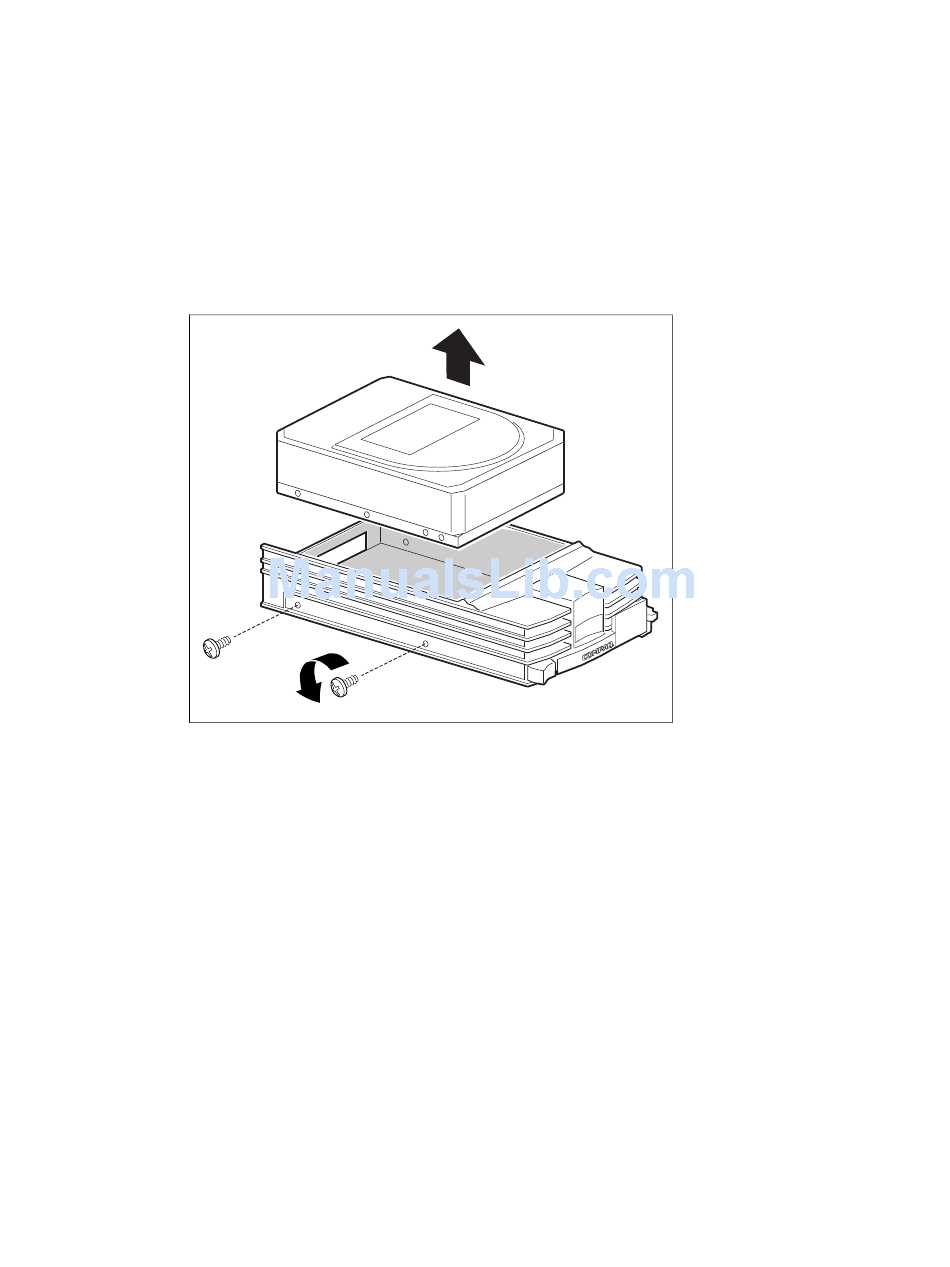

Figure 7-6. Removing a Drive from a Carrier
Compaq Confidential – Need to Know Required
Writer: Robert Young Project: Compaq AlphaServer DS20E System Comments:
Part Number: ER-K8F6W-UA .A01 File Name: h-ch7 Using the Storage Subsystem.doc Last Saved On: 10/4/99 11:13 AM
Using the Storage Subsystem 7-11
DVA00032
