Installing Components 8-5
To Replace the Top Cover on a Rackmount
1. Place the panel on top of the unit and align the fastening hooks.
2. Slide the panel forward.
3. Replace the screw.
CAT0033

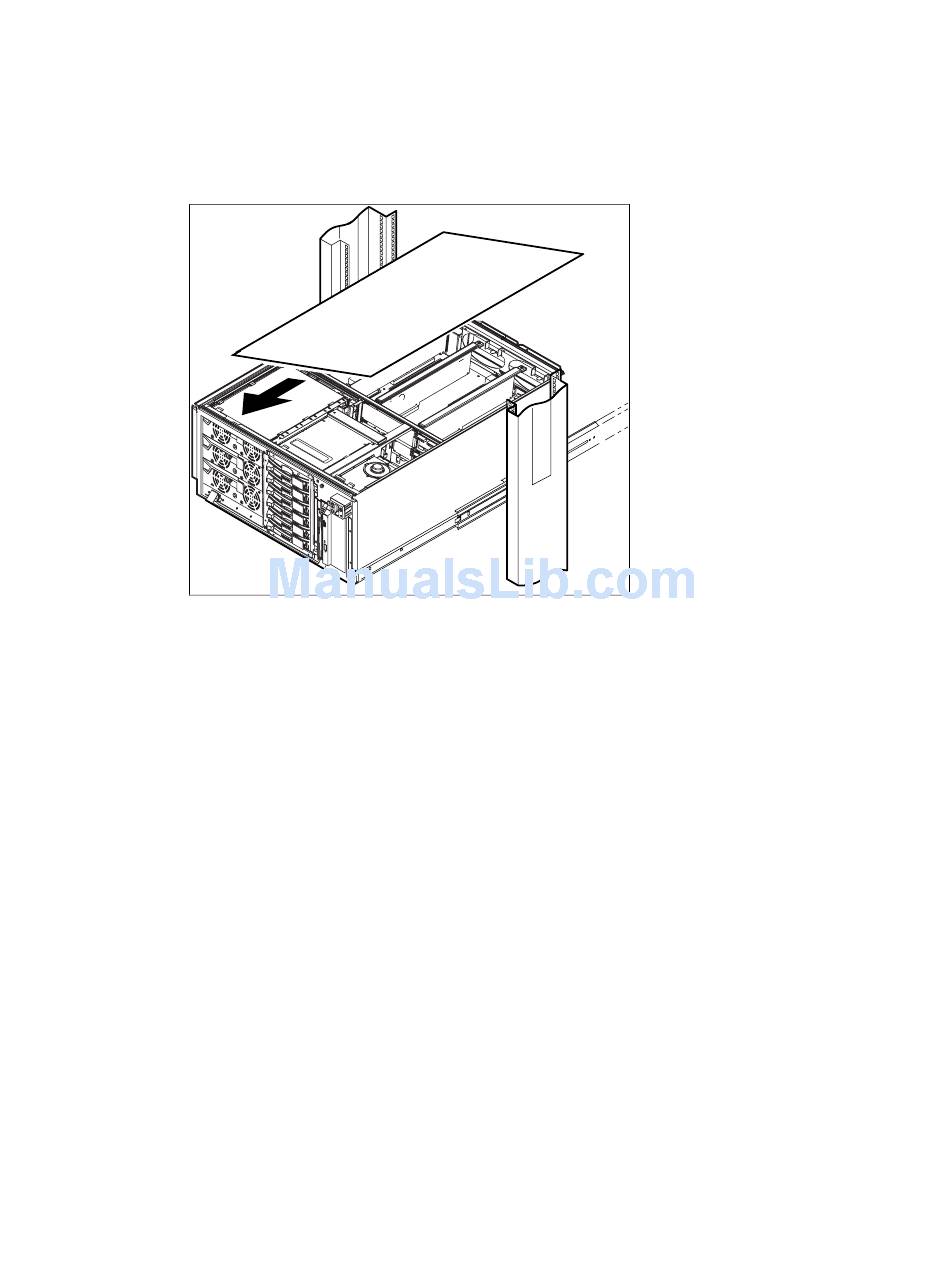

Figure 8-3. Removing/Replacing the Top Cover on a Rackmount
Compaq Confidential – Need to Know Required
Writer: Robert Young Project: Compaq AlphaServer DS20E System Comments:
Part Number: ER-K8F6W-UA .A01 File Name: i-ch8 Installing Components.doc Last Saved On: 10/4/99 2:40 PM
