3-6 DS20E Reference Guide
Part Number: FR-K8F6W-UA .A01 File Name: d-ch3 Installing a Rack System.doc Last Saved On: 10/4/99 1:25 PM
CAUTION: The chassis slides are lightly greased. Handle them carefully to
avoid soiling clothing.
6
7

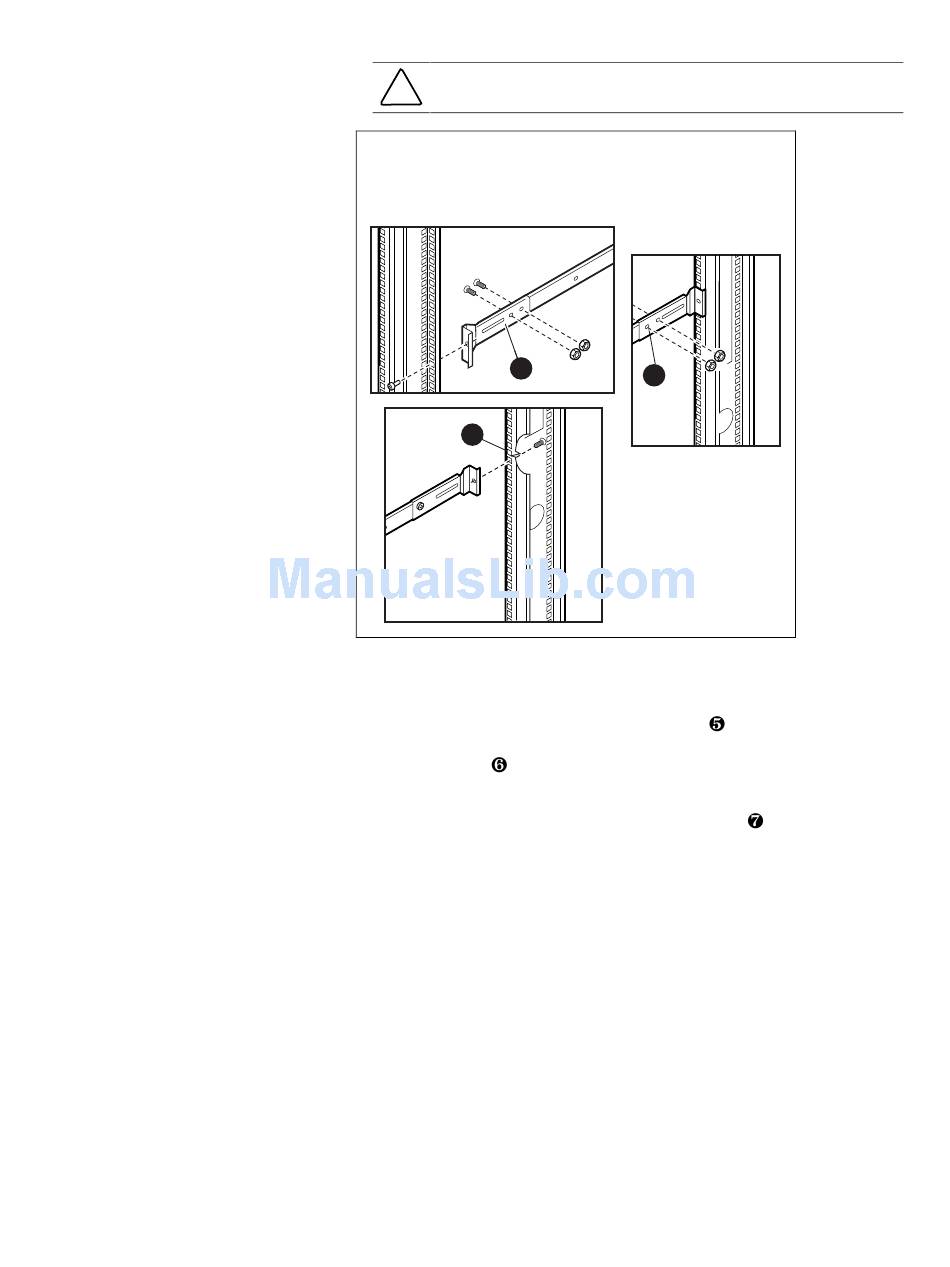

Figure 3-5. Installing Chassis Slides (Rittal VR Rack)

4. Install the adjustable end rail brackets to the front and back of both
chassis slides with two M4 screws on each end
end brackets, place the two screws (one at a time) through the hole in
the chassis slide (Do not tighten at this time).
5. Adjust the adjustable end rail brackets so that the slides fit the rack and secure
with one M6 screw on the front and back of the rack
Compaq Confidential – Need to Know Required
Writer: Robert Young Project: Compaq AlphaServer DS20E System Comments:
5
CAT0027
. To attach the front
.
