Installing the System
Use a material lift or other mechanical device to install the system.

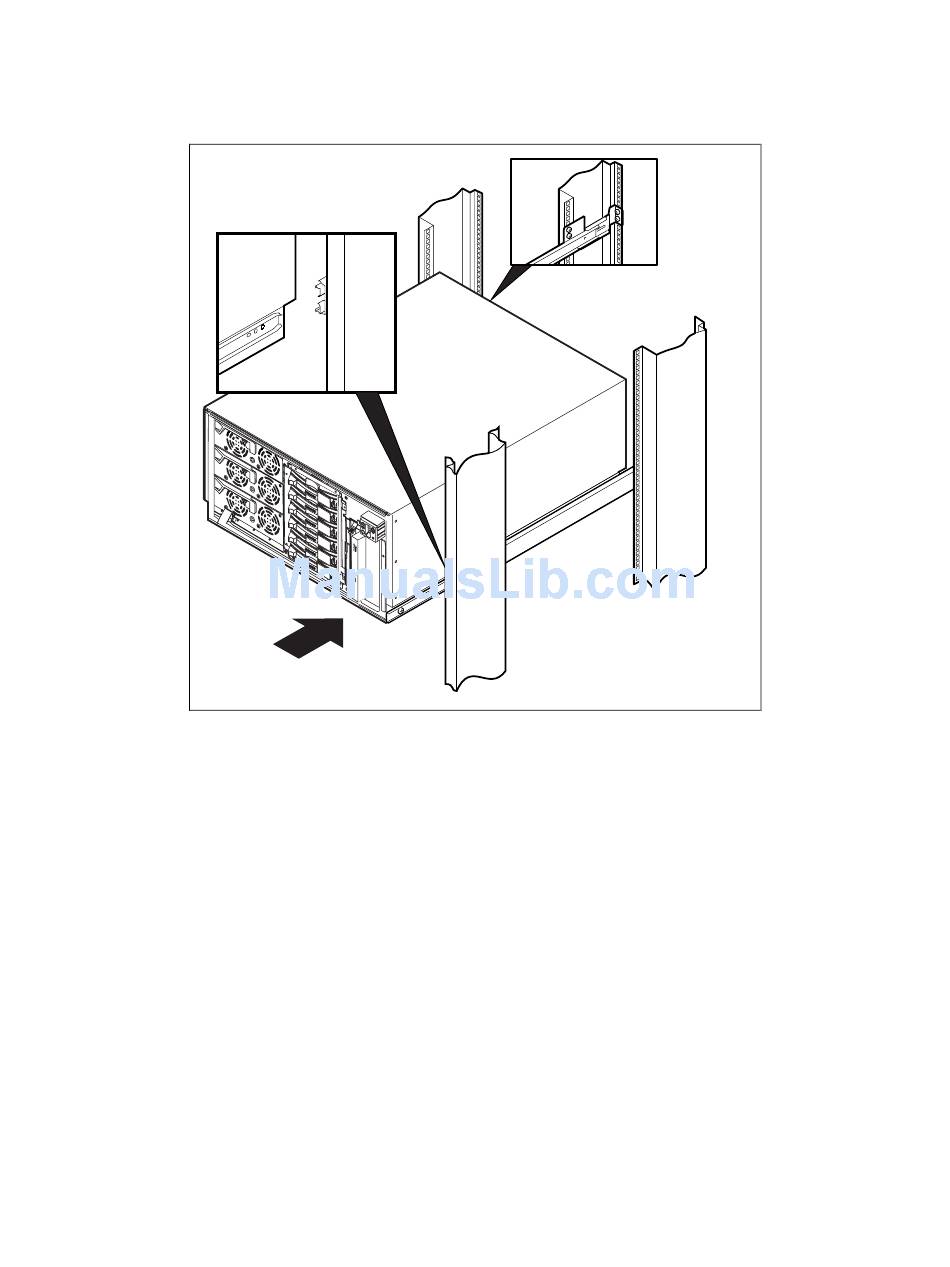

Figure 3-14. Installing the System into the M-series Rack
1. Align the narrow segment of the slides attached to the system with the
slides attached to the rack.
2. Depress the green release button on each side and slide the system
completely into the rack.
Compaq Confidential – Need to Know Required
Writer: Robert Young Project: Compaq AlphaServer DS20E System Comments:
Part Number: FR-K8F6W-UA .A01 File Name: d-ch3 Installing a Rack System.doc Last Saved On: 10/4/99 1:25 PM
Installing the Rackmount Server 3-21
CAT0153
