Installing Drive Carriers

Part Number: ER-K8F6W-UA .A01 File Name: h-ch7 Using the Storage Subsystem.doc Last Saved On: 10/4/99 11:13 AM
Both the 1.0 inch and 1.6 inch drives install identically into the storage cage.
To install (see Figure 7-8) and to remove (see Figure 7-9) a drive carrier,
perform the following procedures:
Installing
1. Insert the drive carrier into the cage with the front handle fully open and
toward the front. With the carrier resting on top of the rail guides of the
cage, slide the carrier in until it stops.
2. Push the handle in to make the backplane connection and to secure it
into the cage.

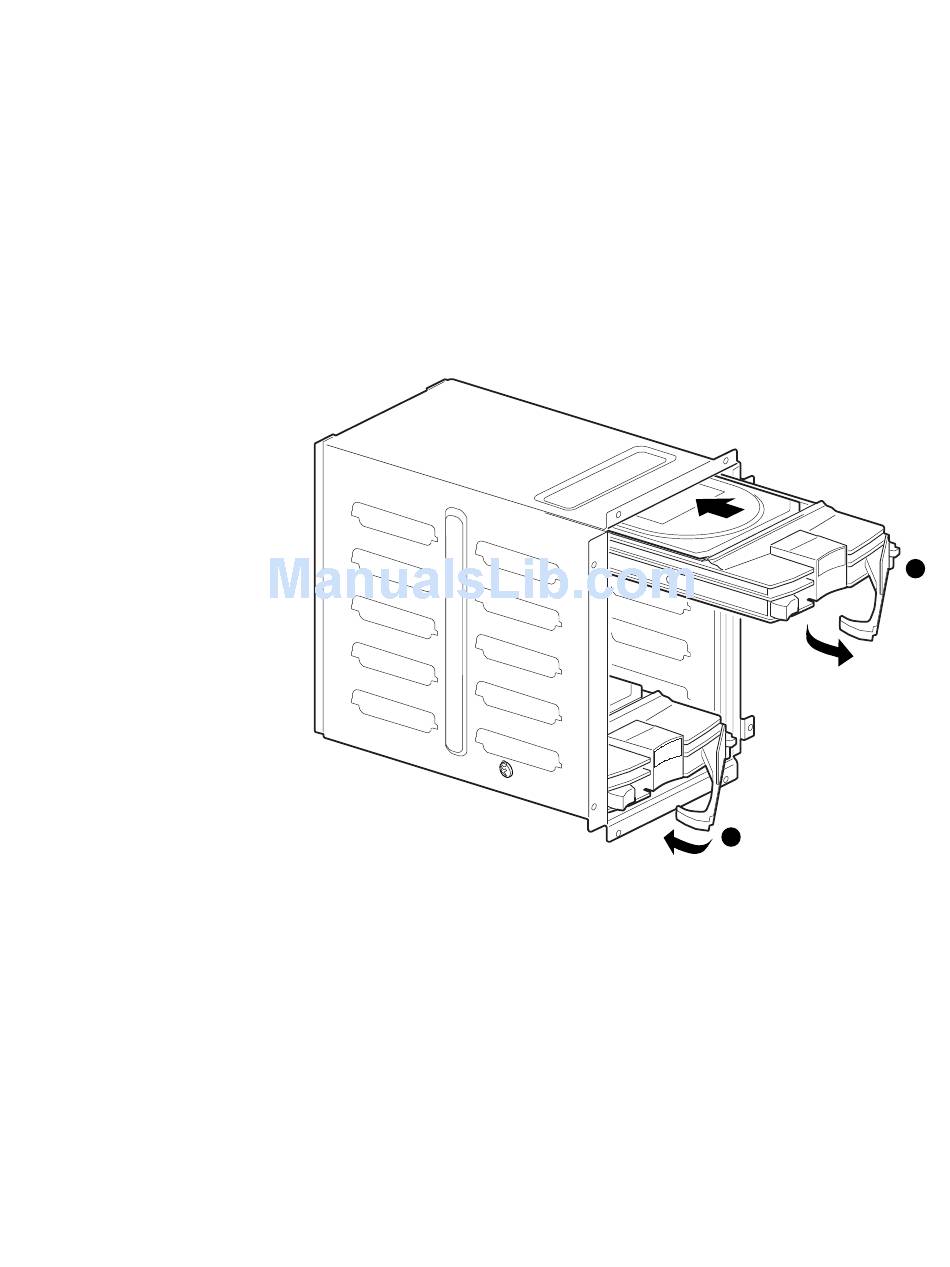

Figure 7-8. Installing the Drive Carrier
