Cable The Server - Sun Oracle SPARC T3-2 Service Manual

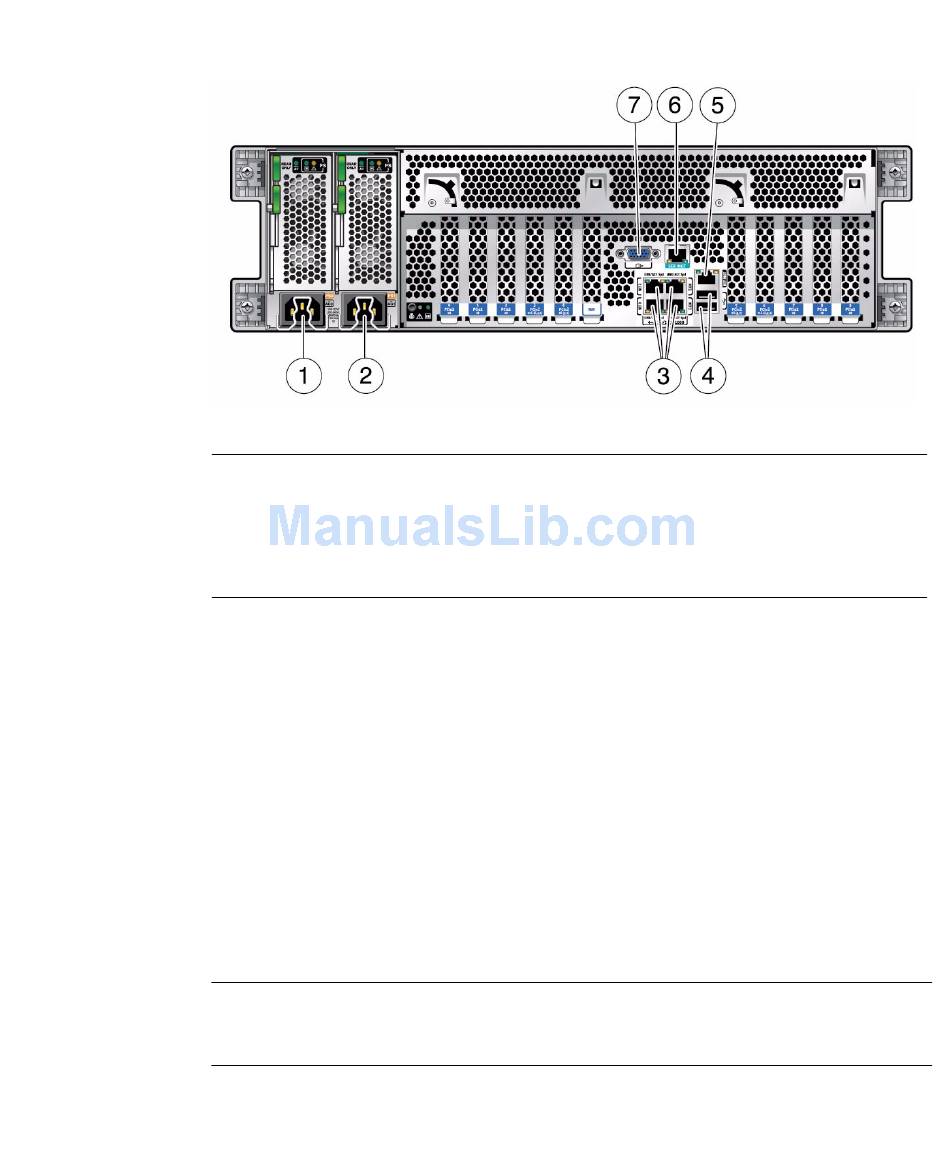

Server Back Panel Connectors
FIGURE:
Figure Legend
1 Power supply unit 0 AC inlet
2 Power supply unit 1 AC inlet
3 Gigabit Ethernet ports NET-0, 1, 2, 3
4 USB 2.0 ports

▼ Cable the Server

Connect external cables to the server in the following order. Refer to
Connectors" on page 78
1. Connect an Ethernet cable to the Gigabit Ethernet (NET) connectors as needed
for OS support.
2. (Optional) If you plan to interact with the system console directly, connect any
additional external devices, such as a mouse and keyboard, to the server's USB
connectors and/or a monitor to the DB-15 video connector.
3. If you plan to connect to the ILOM software over the network, connect an
Ethernet cable to the Ethernet port labeled NET MGT.
Note – The service processor (SP) uses the NET MGT (out-of-band) port by default.
You can configure the SP to share one of the sever's four 10/100/1000 Ethernet ports
instead. The SP uses only the configured Ethernet port.
5
6
7
for the location of connectors on the back of the server.
Service processor (SP) network management
(NET MGT) Ethernet port
Serial management (SER MGT)/RJ-45 serial
port
DB-15 video connector
Preparing for Service
"Back Panel
79
