Sun Oracle SPARC T3-2 Service Manual page 196

Note – Note the positions of the disks so you can return them to the correct slots.
3. Remove the DVD drive.
See
4. Remove the System Remind button assembly (air divider) by lifting it up and
away from the power supplies.

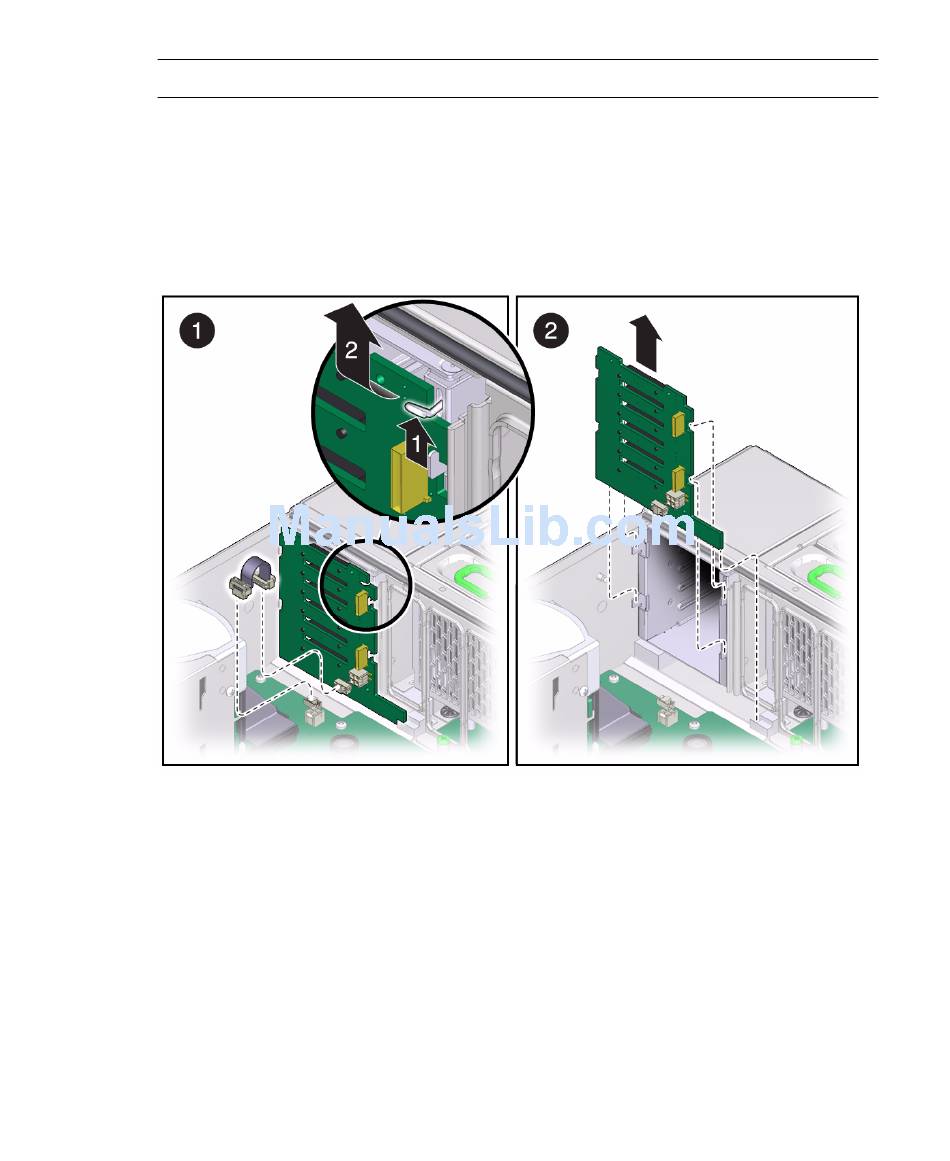

5. Remove the hard disk drive backplane by completing the following tasks.
a. Unplug the two SAS cables, power cables, and ribbon cable from the hard
b. Swing the hard disk drive backplane back and out of the chassis.
Related Information
"Install the Hard Disk Drive Backplane" on page 185
■
184 SPARC T3-2 Server Service Manual • December 2013
"Remove a DVD Drive or Filler Panel" on page
disk drive backplane and push up on the wire tab in the upper corner of the
hard disk drive backplane.
140.
