SPARC T3-1 Server
Getting Started Guide
This guide describes the minimum steps you must perform to power on and boot Oracle's SPARC T3-1 server
for the first time using the preinstalled Oracle Solaris Operating System (Oracle Solaris OS).

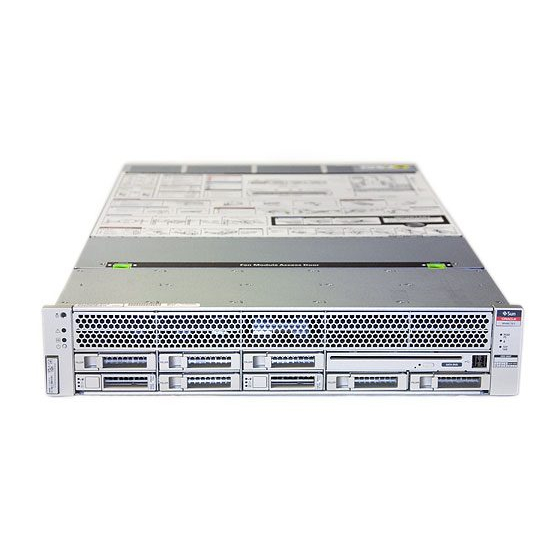

SPARC T3-1 Server
FIGURE 1

Before You Begin

Understand the following information before you set up the server for the first time:
Do not apply power until instructed to do so – This system includes a service processor (SP) that is used to
■
configure and boot the host server. To properly configure the host server and view SP messages, do not apply
AC power to the server until the SP and host networking connections are made, as described in this guide.
Choose the best instructions for your situation – The quick setup instructions in this guide work for any
■
networking environment, and require the use of a terminal device for connection to a serial port. If you have
a networking environment running DHCP, you can configure your system using the Ethernet management
port. To take advantage of the DHCP setup method, refer to the online installation guide in the online product
documentation set at:
http://docs.sun.com/app/docs/prod/sparc.t3.1#hic.
Shipping Contents
Quantity Item
1 Server
1 RJ-45 to DB9 adapter (crossover)
1 Wrist strap
1 or 2 Power cords (quantity depends on
number of PSUs ordered)
N/A Other optional components
* Some optional components may not be packaged with
server. Check the list of items on the purchase order to
be certain you have received the optional components
you need to complete installation and setup of the
server.
*
1
