FIGURE:
Figure Legend
1
2
3
4
5
6
7
8
9

Related Information

"Rear Components" on page 3
■
"Internal Components" on page 5
■
2 SPARC T3-2 Server Service Manual • December 2013

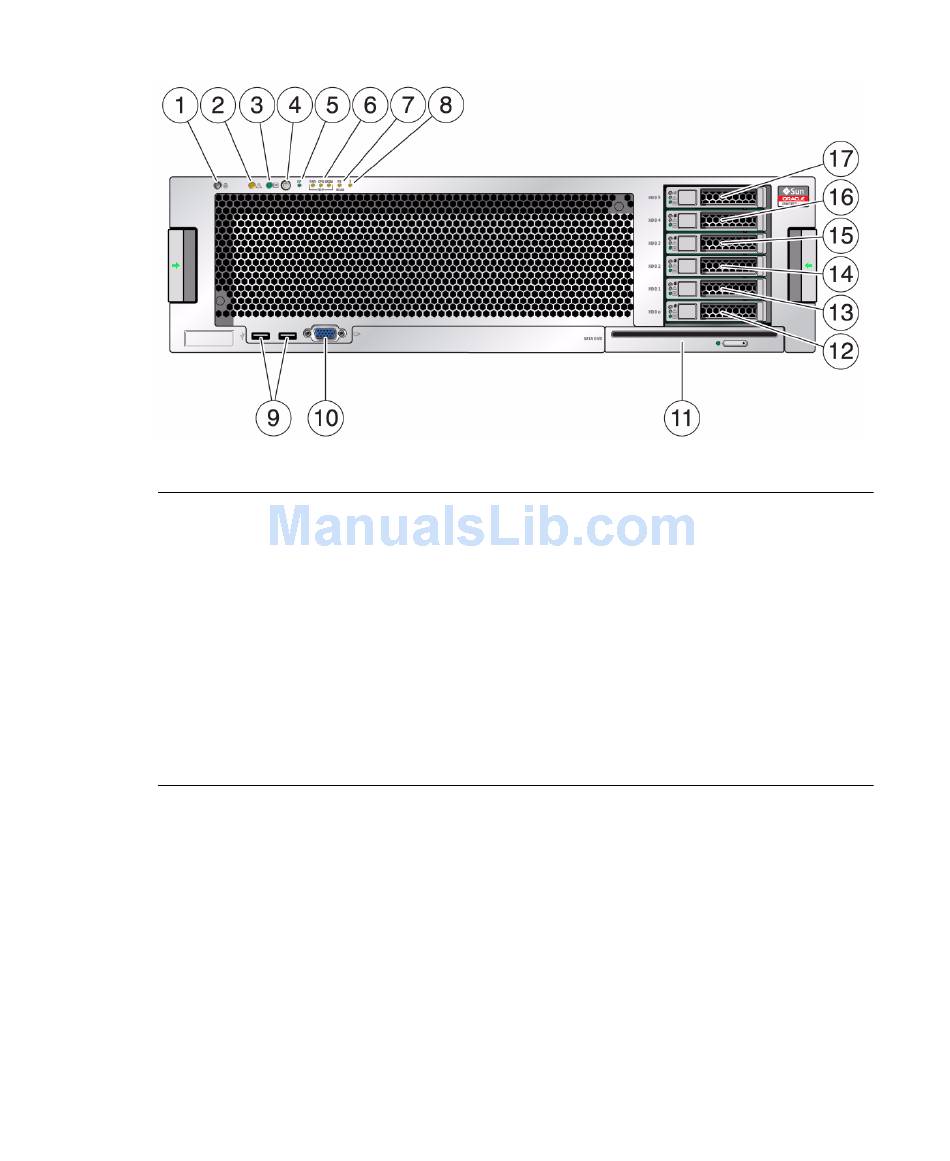

Server Front Panel Features
Locate LED/Locate button: white
Service Action Required LED: amber
Power/OK LED: green
Power button
SP OK/Fault LED: green/amber
Service Action Required LEDs (3) for Fan
Module (FAN), Processor (CPU) and Memory:
amber
Power Supply (PS) Fault (Service Action
Required) LED: amber
Over Temperature Warning LED: amber
USB 2.0 connectors (2)
10 DB-15 video connector
11 SATA DVD drive (optional)
12 Hard disk drive 0 (optional)
13 Hard disk drive 1 (optional)
14 Hard disk drive 2 (optional)
15 Hard disk drive 3 (optional)
16 Hard disk drive 4 (optional)
17 Hard disk drive 5 (optional)
