c. Verify that the drive's blue Ready-to-Remove LED is lit.
3. Determine whether you can replace the disk drive using the hot-swap
procedure or whether you need to power off the server using the cold-swap
procedure.
A cold-swap is required if the disk drive:
Contains the operating system, and the operating system is not mirrored on
■
another drive.
Cannot be logically isolated from the online operations of the server.
■
4. Do one of the following:
To cold-swap the drive, power off the server. Complete one of the procedures
■
described in "Removing Power From the System" on page
To hot-swap the drive, take the drive offline using one of the procedures in
■
"Power Off the Server (Power Button - Standby Mode)" on page
removes the logical software links to the drive and prevents any applications
from accessing it.
5. If you are hot-swapping the drive, locate the drive that displays the amber Fault
LED and ensure that the blue Ready-to-Remove LED is lit.
6. On the drive you want to remove, complete the following tasks.
Caution – The latch is not an ejector. Do not bend it too far to the right. Doing so can
damage the latch.

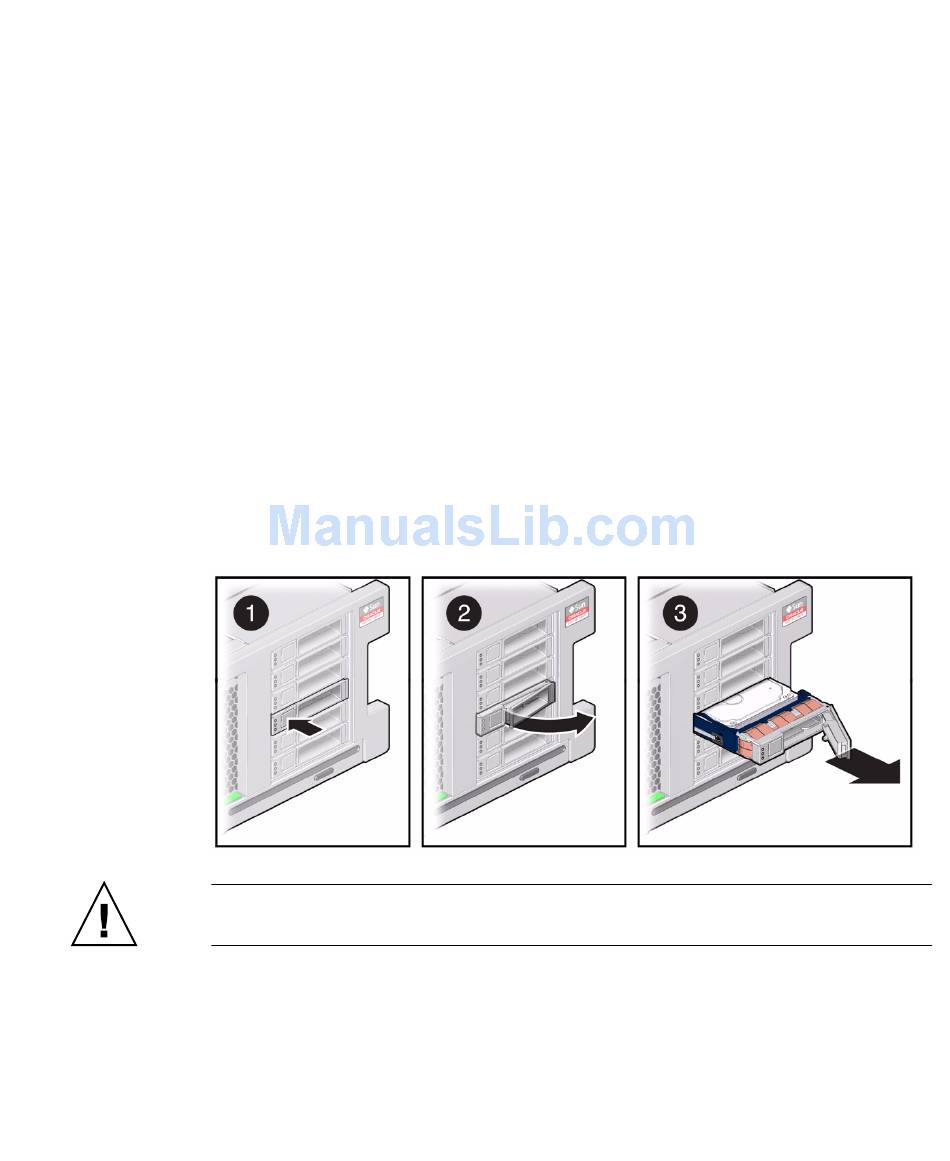

a. Push the release button to open the latch.
b. Unlock the drive by moving the latch to the right.
c. Grasp the latch and pull the drive out of the slot.
69.
70. This
Servicing Hard Disk Drives 87
