1. Attach an antistatic wrist strap, unpack the PCIe card, and place it on an
antistatic mat.
2. Ensure that the server is powered off and all power cords are disconnected from
the server power supplies.
See

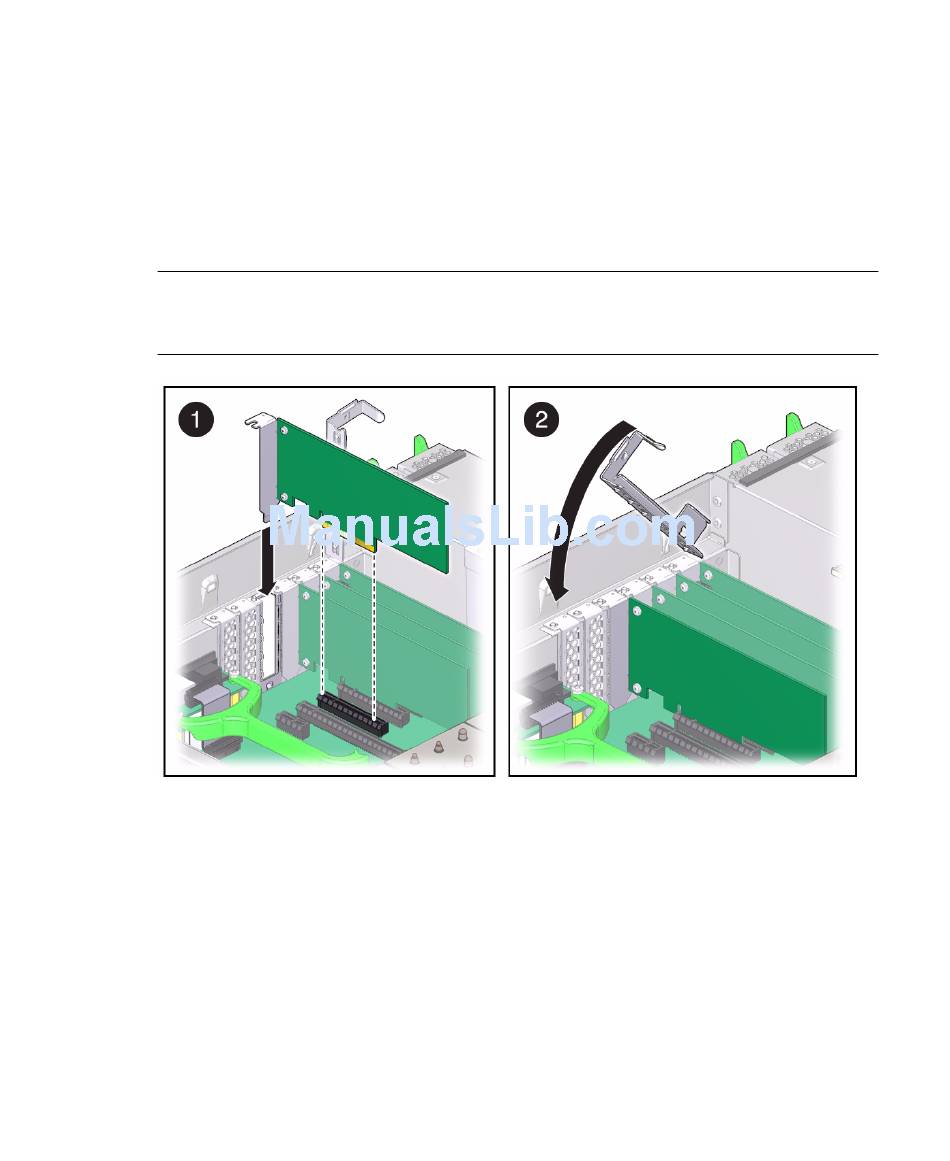

3. Install the PCIe card into the card slot and return the crossbar to its closed and
locked position.
Note – If you are not replacing an existing PCIe card and need information about
deciding into which slot a the card should be installed, refer to
Configuration Rules" on page
4. Connect any internal cables to the PCIe card.
If you are replacing a faulty PCIe card, re-connect any cables you disconnected
when removing the card. For SAS HBA PCIe cards, see
HBA PCIe Card" on page
5. Return the server to operation:
a. Install the top cover.
b. Return the server to the normal rack position.
152 SPARC T3-2 Server Service Manual • December 2013
"Removing Power From the System" on page
See "Install the Top Cover" on page
See "Return the Server to the Normal Rack Position" on page
147.
153.
196.
69.
"PCIe Card
"Cable an Internal SAS
197.
