Tip – Rank classification labels for installed DIMMs can be viewed with the memory
risers installed in the server. To determine the rank classification of installed DIMMs,
remove the server top cover and read the labels on the DIMMs. For top cover
removal instructions, see
The following table identifies the rank classification labels on supported DIMMs.
Rank Type
Dual-rank x8 DIMMs (2Rx8)
Dual-rank x4 DIMMs (2Rx4)
Related Information
"DIMM Population Rules" on page 112
■
"Supported Memory Configurations" on page 113
■
"DIMM FRU Names" on page 114
■
"Increase Server Memory With Additional DIMMs" on page 126
■
"DIMM Configuration Error Messages" on page 132
■
116 SPARC T3-2 Server Service Manual • December 2013

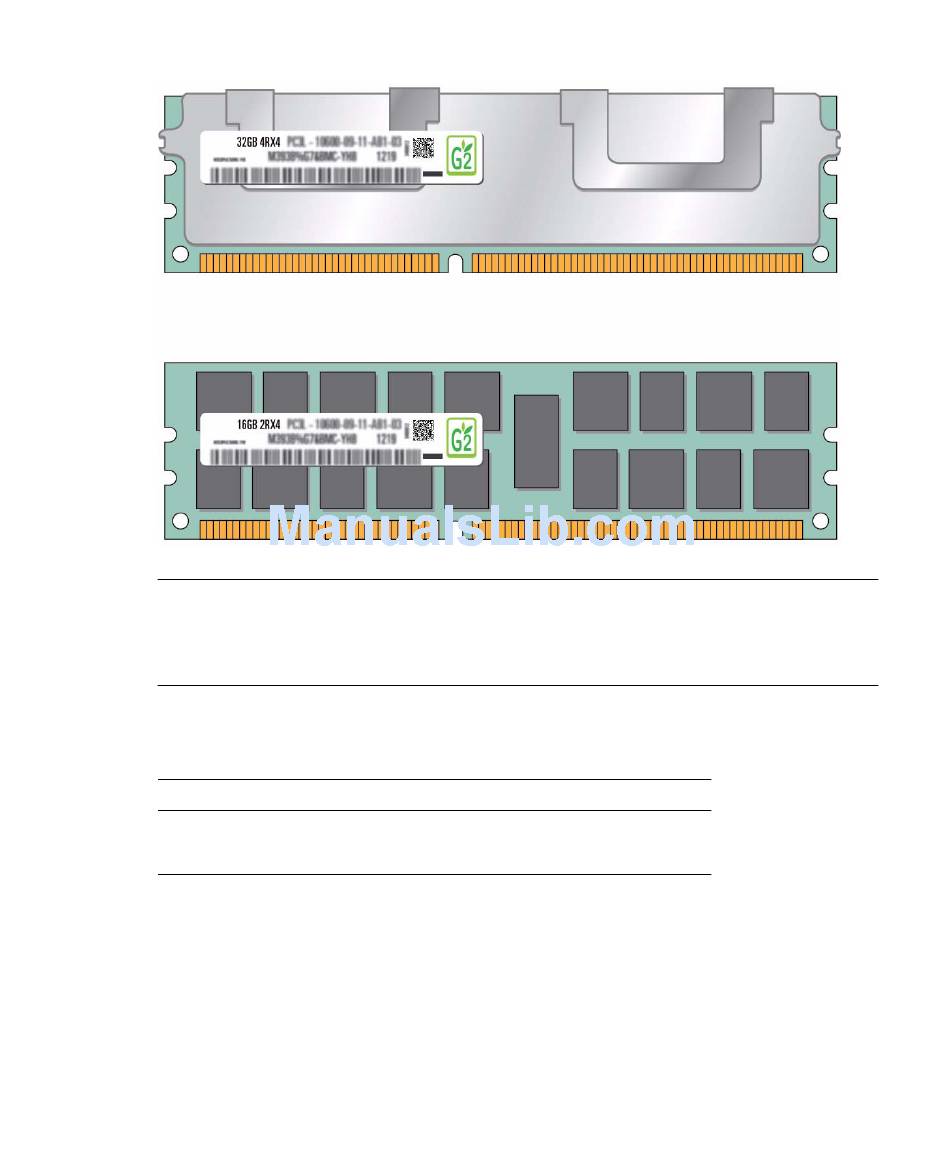

Example DIMM Rank Classification Labels
"Preparing for Service" on page
Capacity
4 Gbyte
8 Gbyte
63.
Rank Classification Label
2Rx8
2Rx4
